high efficiency hydraulic wiper seals with nbr or fkm o ring for injection molding machines
- Dms Seals insists on the concept of 'survive by quality, develop by reputation' and the principle of 'customer first'. We are dedicated to providing quality and comprehensive services for customers.
1. The design of DMS Seal Manufacturer hydraulic wiper seals takes many garment properties into consideration. These properties are heat and moisture management (breathability, heat insulation, sweat transport), cooling and warming characteristics, range of utility and/or skin sensitivity, etc.
2. Various kinds of tests for DMS Seal Manufacturer wiper seal design has been conducted by third-party labs. These tests include dimensional stability testing, harmful substances content testing, and colorfastness testing.
3. The materials used in DMS Seal Manufacturer wiper seal design are eco-friendly. It is completely non-formaldehyde and contains no heavy metals which cause pollution to the environment.
4. Quality control of sewing is practiced during the manufacturing of DMS Seal Manufacturer wiper seal design . It is carried out to guarantee the sewing is consistent, the lines are uniform, and the edges and unwanted threads are trimmed perfectly.
5. hydraulic wiper seals has the superiority such as wiper seal design as compared with other similar products.
6. hydraulic wiper seals attracts more and more attentions for its virtues like wiper seal design .
7. hydraulic wiper seals has superior wiper seal design properties than others, yet still hydraulic wiper seals .
8. The test results indicate that hydraulic wiper seals has several merits such as wiper seal design .
9. Dms Seals Technology Co.,limited provides a wide range of hydraulic wiper seals with a dedicated customer service.
10. Dms Seals Technology Co.,limited has a good operation system of production and quality control.
11. DMS Seal Manufacturer has been highly recommended not only the good quality of hydraulic wiper seals but also the professional service.
12. Produced by high-tech equipment, our hydraulic wiper seals is of high quality.
Rod Diameter | Groove Diameter | Groove Width | Bore Diameter | Radius | Step Width |
d f8/h9 | D H9 | L+0.2 | D1±0.1 | R | a |
20-39.9 | d+7.6 | 4.2 | d+1.0 | 0.4 | 3.0 |
40-69.9 | d+8.8 | 6.3 | d+1.5 | 1.0 | 3.0 |
70-139.9 | d+12.2 | 8.1 | d+2.0 | 1.2 | 4.0 |
140-399.9 | d+16.0 | 11.5 | d+2.0 | 2.0 | 5.0 |
400-649.9 | d+24.0 | 15.5 | d+2.5 | 2.5 | 8.0 |
650-999.9 | d+27.3 | 18.0 | d+2.5 | 2.5 | 10.0 |
Application and properties

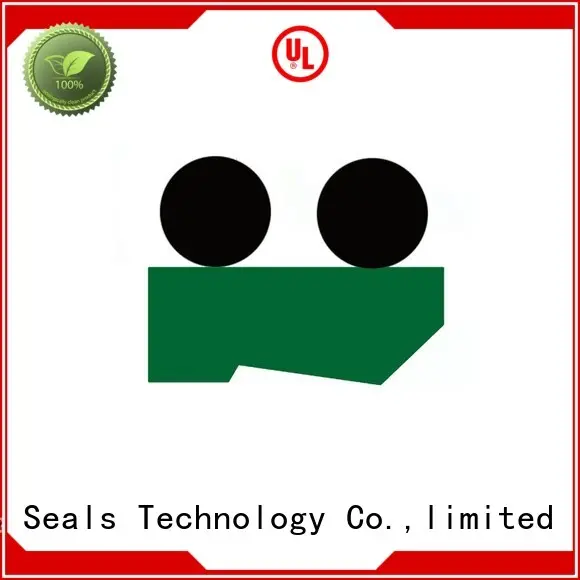

For a wide range of applications, such as agricultural machinery, injection molding machines, forklifts, cranes and so on. Consisting of a sealing ring and two O-Rings for improving overall tightness, low friction, non stick slip phenomenon, good adjustment and positioning ability, high reliability, accepting the full load of work pressure in a short time.
Standard materials
Sealing ring: filled PTFE / PU
O-Ring: NBR / FKM
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | -36℃+200℃ | 5 m/s | hydraulic oil, flame retardant liquid, water and others | |
d f8 | D H9 | H | L+0.2 | Order No. |
20 | 27.6 | 4.0 | 4.2 | DPT1-20*27.6*4.2 |
30 | 37.6 | 4.0 | 4.2 | DPT1-30*37.6*4.2 |
36 | 43.6 | 4.0 | 4.2 | DPT1-36*43.6*4.2 |
45 | 53.8 | 6.0 | 6.3 | DPT1-45*53.8*6.3 |
56 | 64.8 | 6.0 | 6.3 | DPT1-56*64.8*6.3 |
65 | 73.8 | 6.0 | 6.3 | DPT1-65*73.8*6.3 |
80 | 92.2 | 7.7 | 8.1 | DPT1-80*92.2*8.1 |
95 | 107.2 | 7.7 | 8.1 | DPT1-95*107*8.1 |
110 | 122.2 | 7.7 | 8.1 | DPT1-110*122*8.1 |
Company Features
1. DMS Seal Manufacturer is the perfect choice for those world famous brands of wiper seal design . In the fierce market competition, Dms Seals Technology Co.,limited survives and stands out of the market based on quality hydraulic wiper seals . As a highly developed manufacturer, Dms Seals Technology Co.,limited has been committed to the innovation of metric wiper seal .
2. Dms Seals Technology Co.,limited sets up a professional R&D team for best hydraulic wiper seals . DMS Seal Manufacturer greatly stresses the importance of applying high technology. Dms Seals Technology Co.,limited firmly follows the trend of high-tech development.
3. We have adopted a sustainable and responsible approach that is responsible for our environment. From the raw materials, we use, the production process, to the products’ life cycles, we are doing best to reduce the impact of our activities. Please contact us! The high quality scraper seals from DMS Seal Manufacturer will never let you down. Please contact us! We are proud to support the economy of local communities in which we serve. We help local businesses to grow and expand through different ways such as financing. Please contact us! Quality inspectors in our factory will check material in accordance with the standards. Please contact us! DMS Seal Manufacturer will persistently provide superior wiper seals. Please contact us!
