high end hyd cylinder seals for business to high and low speed

Company Advantages
1. Our DMS Seals hyd cylinder seals is designed and manufactured in line with clients' ever-evolving requirements.
2. With the assistance of our state-of-the-art technology and proficient team members, DMS Seals hyd cylinder seals is produced in line with the product specification in the industry.
3. The production of DMS Seals is of high efficiency with the help of advanced production equipment.
4. Our marvelous DMS Seals hyd cylinder seals is manufactured under the supervision of our highly skilled personnel.
5. The product contains very limited impurities. The mining process has excavated all of the waste rock and extracts the desired mineral ore.
6. The product can run under extreme conditions. All the electric components and the electrode leader have been tested for voltage resistance and insulation performance.
7. The product is durable enough. It is made of high-hardness materials and treated under high temperature, thus it is not vulnerable to damage.
8. hyd cylinder seals is offered which will help customers improve competitiveness.
9. The outer packing for hyd cylinder seals can be customized based on our customers' requirements.
10. Dms Seals Technology Co.,limited always provides hyd cylinder seals  with good price and thoughtful service.

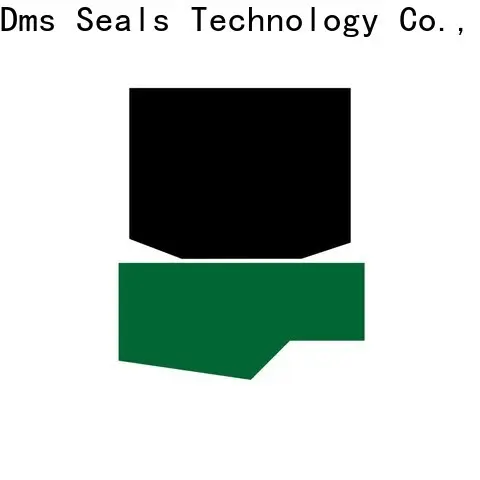

1. Installation Recommendation

2. Installation Sizes

Rod Diameter	Outer Diameter	Groove Width	Install Chamfer	Radius	Radial Clearance                S max.
d f8	D H8	L+0.2	L1	R1	10MPa	20MPa	40MPa
50-69.9	d+15.0	7.5	5.0	0.4	0.5	0.4	0.3
70-149.9	d+20.0	10.1	6.0	0.4	0.7	0.5	0.4
200-244.9	d+25.0	12.5	8.5	0.4	0.8	0.6	0.5
245-519.9	d+30.0	15.0	10.0	0.8	0.9	0.7	0.6
520-769.9	d+35.0	17.5	13.0	1.2	1.0	0.8	0.7
770-1500	d+40.0	20.0	15.0	1.2	1.0	0.8	0.7

3. Application and properties

Applied for larger diameter piston rods and heavy-duty hydraulic rod sealing system in hard working conditions. High pressure resistance, excellent resistance to gap extrusion, wear-resisting.

4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM



5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-30℃ +100℃	5 m/s	hydraulic oil, flame retardant liquid, water, gas

6. Installation Dimensions

Rod Dia.	Outer Dia.	Groove Width	Order No.
d f8	D H8	L+0.2
50 60 70	65 75 85	7.5 7.5 7.5	GSJ-W50*65*7.5 GSJ-W60*75*7.5 GSJ-W70*85*7.5
75 80 100	95 100 120	10 10 10	GSJ-W75*95*10 GSJ-W80*100*10 GSJ-W100*120*10
110 115 120	130 135 140	10 10 10	GSJ-W110*130*10 GSJ-W115*135*10 GSJ-W120*140*10
130 140 145	150 160 165	10 10 10	GSJ-W130*150*10 GSJ-W140*160*10 GSJ-W145*165*10
150 160 170	170 180 190	10 10 10	GSJ-W150*170*10 GSJ-W160*180*10 GSJ-W170*190*10
175 180 200	195 200 220	10 10 10	GSJ-W175*195*10 GSJ-W180*200*10 GSJ-W200*220*10
230 240 250	255 265 275	12.5 12.5 12.5	GSJ-W230*255*12.5 GSJ-W240*265*12.5 GSJ-W250*275*12.5
260 265 270	285 290 295	12.5 12.5 12.5	GSJ-W260*285*12.5 GSJ-W265*290*12.5 GSJ-W270*295*12.5
280 290 300	305 315 325	12.5 12.5 12.5	GSJ-W280*305*12.5 GSJ-W290*315*12.5 GSJ-W300*325*12.5

Company Features
1. Dms Seals Technology Co.,limited is deeply trusted by global customers as a professional manufacturer of hyd cylinder seals . Dms Seals Technology Co.,limited focuses on providing customers with the best system solutions and international advanced hydraulic packing and seals products. Dms Seals Technology Co.,limited is a comprehensive enterprise specializing in R&D, production and sales of polyurethane hydraulic seals products.
2. DMS Seals has constantly concentrated on technological innovation. DMS Seals focuses on the research and development of the cylinder rod seal . Dms Seals Technology Co.,limited is internationally well-known for its technology strength. The quality of piston seal is superior, making us highly popular in the market.
3. We value social sustainability. We put efforts to understand the impact of our events on the communities, and then work to amplify good influences and avoid bad influences. We aim to be a reliable and helpful partner that exceeds expectations and to manufacture products that meet the quality expectations of our clients all over the world. We have explored many ways to achieve greener production. We made the production process more environmentally acceptable, such as reducing energy consumption, using renewable resources, or cutting energy wastes. Our goal is to constantly exceed our customer expectations. We aim to respond to their needs in an efficient manner and go beyond their needs.
