high end hydraulic cylinder gaskets cost for sale

Company Advantages
1. The manufactured of DMS Seals adopts various cutting-edge machines. They are high--speed precise CNC fabrication equipment and quality testing facilities such as height gauge and measuring instrument. DMS Seal manufacturer provides good quality and competitive price hydraulic seals
2. In addition, Dms Seals Technology Co.,limited is capable of manufacturing hydraulic cylinder gaskets , which are. DMS Seals takes the lead in grasping the development trend of the industry
3. This product has the advantages of weather protection, air retention, and mildew resistance. The materials used in it is degumming, and water resistant. DMS Seal manufacturer is a technology enterprise which specialized in the R&D and production of seals
4. The product is water resistant. It is made of highly waterproof materials and its exterior zippers are also waterproof to prevent the water come in. To reduce costs with high-efficiency work is the DMS's purpose
5. The product has enough hardness. It can effectively resist scratching due to the friction or pressure from a sharp object. Our products mainly include rod seals, piston seals, scraper seals, rotary seals, rubber seal products and spring seals

1. Installation Recommendation

2. Application and properties

The standard combination seal is suitable for a wide range of pressure work and sliding high speed occasions. Low friction, strong wear resistance.



3. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
6-1600mm	0-35MPa	-30℃ +200℃	1.5 m/s	general hydraulic oil, water glycol Hydraulic oil and water emulsion type hydraulic oil.

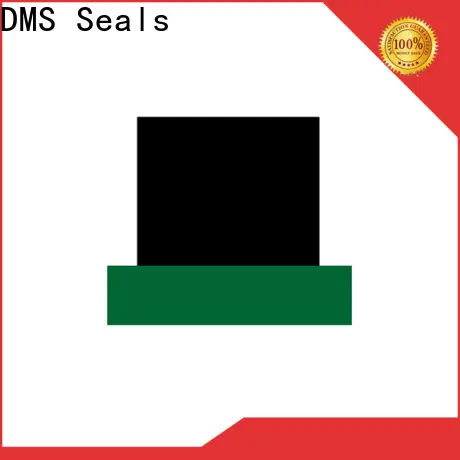

5. Installation Dimensions

Nominal Size of Packing, and Housing dimensions				Order No.
d	D	H	L +0.2
18 20 22	27 29 31	4.3 4.3 4.3	4.5 4.5 4.5	SPN18*27*4.3 SPN20*29*4.3 SPN22*31*4.3
27 31.5 47	36 40.5 60	4.3 4.3 7.3	4.5 4.5 7.5	SPN27*36*4.3 SPN31.5*40.5*4.3 SPN47*60*7.3
53 60 65	66 73 78	7.3 7.3 7.3	7.5 7.5 7.5	SPN53*66*7.3 SPN60*73*7.3 SPN65*78*7.3
70 75 80	83 88 93	7.3 7.3 7.3	7.5 7.5 7.5	SPN70*83*7.3 SPN75*88*7.3 SPN80*93*7.3
90 100 110	103.4 113.4 123.4	7.3 7.3 7.3	7.5 7.5 7.5	SPN90*103.4*7.3 SPN100*113.4*7.3 SPN110*123.4*7.3
120 130 140	133.4 143.4 153.4	7.3 7.3 7.3	7.5 7.5 7.5	SPN120*133.4*7.3 SPN130*143.4*7.3 SPN140*153.4*7.3

Company Features
1. Dms Seals Technology Co.,limited has strong technical strength for developing hydraulic cylinder gaskets .
2. Our finest quality seal pneumatics inc and mature service will satisfy you. Get quote!
