High-quality air piston seal company to high and low speed
1. During the development stage of DMS Seals , different factors have been taken into consideration. They are mainly structure stability, statics, mechanical properties, the whole efficiency, etc. As a modern sealing technology company, DMS Seal manufacturer has a wealth of experience
2. Dms Seals Technology Co.,limited gives customers with technical and sales support. To reduce costs with high-efficiency work is the DMS's purpose
3. air piston seal adopts principle of , integrated advantages of . DMS Seals provides professional design and production of high-grade o-ring seals

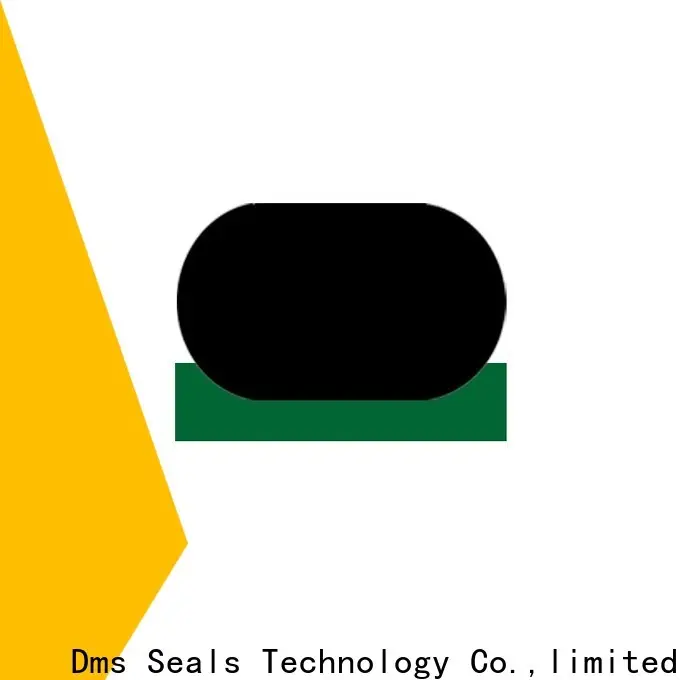

1. Installation Recommendation
2. Application and properties
The standard combination seal is suitable for a wide range of pressure work and sliding high speed occasions. Low friction, strong wear resistance.
3. Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
4. Working Conditions
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3 - 1600mm | 0 - 35MPa | -30℃ +200℃ | 1.5 m/s | general hydraulic oil, water glycol Hydraulic oil and water emulsion type hydraulic oil. |
5. Installation Dimensions
Order No. | ||||
d | D | H | L +0.2 | |
3 4 5 | 6 7 8 | 2.3 2.3 2.3 | 2.5 2.5 2.5 | SPNC3*6*2.5 SPNC4*7*2.5 SPNC5*8*2.5 |
6 7 8 | 9 10 11 | 2.3 2.3 2.3 | 2.5 2.5 2.5 | SPNC6*9*2.5 SPNC7*10*2.5 SPNC8*11*2.5 |
9 10 10 | 12 13 14 | 2.3 2.3 3.0 | 2.5 2.5 3.2 | SPNC9*12*2.5 SPNC10*13*2.5 SPNC10*14*3.2 |
11 11.2 12 | 15 15.2 16 | 3.0 3.0 3.0 | 3.2 3.2 3.2 | SPNC11*15*3.2 SPNC11.2*15.2*3.2 SPNC12*16*3.2 |
12.5 14 15 | 16.5 18 19 | 3.0 3.0 3.0 | 3.2 3.2 3.2 | SPNC12.5*16.5*3.2 SPNC14*18*3.2 SPNC15*19*3.2 |
16 18 20 | 20 22 24 | 3.0 3.0 3.0 | 3.2 3.2 3.2 | SPNC16*20*3.2 SPNC18*22*3.2 SPNC20*24*3.2 |
20 21 22 | 24 25 26 | 3.0 3.0 3.0 | 3.2 3.2 3.2 | SPNC20*24*3.2 SPNC21*25*3.2 SPNC22*26*3.2 |
22 22.4 24 | 28 28.4 30 | 4.4 4.4 4.4 | 4.7 4.7 4.7 | SPNC22*28*4.7 SPNC22.4*28.4*4.7 SPNC24*30*4.7 |
25 25.5 26 | 31 31.5 32 | 4.4 4.4 4.4 | 4.7 4.7 4.7 | SPNC25*31*4.7 SPNC25.5*31.5*4.7 SPNC26*32*4.7 |
28 29 29.5 | 34 35 35.5 | 4.4 4.4 4.4 | 4.7 4.7 4.7 | SPNC28*34*4.7 SPNC29*35*4.7 SPNC29.5*35.5*4.7 |
30 31 31.5 | 36 37 37.5 | 4.4 4.4 4.4 | 4.7 4.7 4.7 | SPNC30*36*4.7 SPNC31*37*4.7 SPNC31.5*37.5*4.7 |
32 34 35 | 38 40 41 | 4.4 4.4 4.4 | 4.7 4.7 4.7 | SPNC32*38*4.7 SPNC34*40*4.7 SPNC35*41*4.7 |
35.5 36 38 | 41.5 42 44 | 4.4 4.4 4.4 | 4.7 4.7 4.7 | SPNC35.5*41.5*4.7 SPNC36*42*4.7 SPNC38*44*4.7 |
Company Features
1. The manufacturing expertise for air piston seal contributes to Dms Seals Technology Co.,limited gradual stabilization of the market.
2. With years of commitment to the concept of quality, we have won a number of loyal customers and established stable cooperations with them. This is the evidence of our strong capability in improving product quality.
3. Dms Seals Technology Co.,limited upholds the idea that quality and technology are key factors for long-term development. Inquire online!
