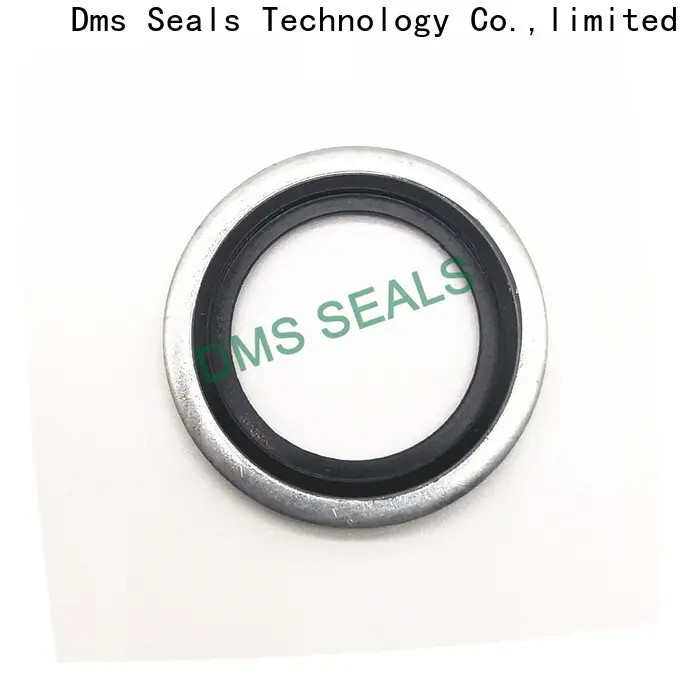

High-quality bonded seal dichtung company for threaded pipe fittings and plug sealing

Company Advantages
1. The design of DMS Seal Manufacturer bonded seal dichtung is completed by a dedicated technical team of CAD/CAM designers and structural engineers who try to design a long-lasting tent. Seal we produced has applications in a wide range of fields
2. Dressing this product will make people feel important or intelligent and can change the way people interact with others as well as their cognitive functioning. DMS Seal manufacturer was established in 2008 and now has more than 10 years professional experience
3. This product is safe. It has been tested to be free of azo, carcinogenic or allergenic dyes, heavy metals, phthalates & formaldehyde that could pose severe health risks. Our products mainly include rod seals, piston seals, scraper seals, rotary seals, rubber seal products and spring seals
4. The product is not likely to shrink. During the production, it has gone through the preshrinking(washing) procedure to make sure it will not shrink any more once it is finished. DMS Seal manufacturer is a technology enterprise which specialized in the R&D and production of seals
5. Durability is one of the most outstanding features of this product. Its fabrics have the ability to resist wear through continual use. DMS Seals' production equipment and test equipment are on the leading level in the industry

1. Applicability

The BS/A bonded seals (automatic core-positioning) are applicable to threaded pipe fittings and plug sealing in Metric System, the Britain System and BSP. The location processing of sealing groove is not specially required, so it is ideal fittings for fast and automatic installation. Its service temperature is -30℃~100℃, working pressure less than 39.2MPa.

2. Figure

2. GM500 Self-centering range metric dimensions

Metric Thread size	Inside Diameter	Outside Diameter	Metal thickness	Metal washer ID	ID between self centering
	C	A	E	B	F
PPM6	6,50	10,00	1,00	8,00	5,60
PPM8	8,5	14,00	1,00	10,40	6,40
PPM10	10,50	16,00	2,00	12,40	8,05
PPM12	12,50	18,00	1,50	14,10	9,73
PPM14	14,5	20,00	2,00	16,40	11,38
PPM16	16,5	22,00	2,00	18,40	13,41
PPM18	18,5	25,00	2,00	20,40	14,76
PPM20	20,5	28,00	2,00	22,50	16,76
PPM22	22,5	30,00	2,00	24,40	18,74
PPM24	24,5	32,00	2,00	26,40	20,11
PPM27	27,2	35,00	2,00	29,40	23,30
PPM30	30,7	38,00	2,00	32,40	25,70
PPM33	33,5	42,00	2,00	35,40	28,70
PPM36	36.7	46,00	2,00	38,70	31.1
PPM39	41.9	51,00	2,00	40,00	34.1
PPM42	42.7	53,00	2,00	45,70	38.7
PPM48	48.7	60,00	2,00	51,70	43.7
PPM52	52.9	66,00	2,00	56,40	46
PPM60	60.9	75,00	2,00	63,00	-

3. GM500 Self-centering range inch dimensions, BSP

BSP thread size	Inside Diameter	Outside Diameter	Metal thickness	Metal washer ID	ID between self centering
	C	A	E	B	F
1/8 BSP	10,37	15,88	2,00	11,84	8,26
1/4 BSP	13,74	20,57	2,00	15,21	11,18
3/8 BSP	17,28	23,80	2,00	18,75	14,76
1/2 BSP	21,54	28,58	2,50	23,01	18,24
3/4 BSP	27,05	34,93	2,50	28,53	23,83
1 BSP	33,89	42,80	3,20	36,88	29,92
1 1/4 BSP	42,93	52,38	3,20	45,93	38,45
1 1/2 BSP	48,44	58,60	3,20	51,39	44,45
2 BSP	60,58	73,03	3,20	63,63	56,26



Company Features
1. Highly committed to the manufacturing of for years, Dms Seals Technology Co.,limited is developing stronger and more competitive now.
2. Dms Seals Technology Co.,limited has made a superior manufacturing procedure.
3. Dms Seals Technology Co.,limited makes every attempt to create products which fulfill client requirements. Get info!
