high quality hallite hydraulic seals vendor to high and low speed

Company Advantages
1. The rigorous design phase of DMS Seals hallite hydraulic seals makes it distinctive.
2. Such material of hallite hydraulic seals makes its colors more abundant.
3. The design of DMS Seals is carried out by a professional team.
4. The product features fine softness. The mechanical extrusion process squeezing and rubbing between the fibers and yarns enhances the ductility of the fabrics.
5. No critical defects can be found on this product, namely hazardous or unsafe conditions or non-compliance with regulations include sharp points or edges, stray needles left in the garment, loose studs or missing suffocation warning labels.
6. The product is safe to use. Before it is shipped, drying sterilization has been conducted to remove all the bacteria or harmful microorganism.
7. The product runs safely in the electricity supply system. All its parameters, such as voltage, power, and other electric performance will be customized and checked to guarantee effectiveness.
8. Dms Seals Technology Co.,limited will highly recommend hallite hydraulic seals as we believe of its exhibited features like .
9. Dms Seals Technology Co.,limited has established its competitive advantage over the years.
10. Dms Seals Technology Co.,limited is a professional manufacturer and exporter that is concerned with the design,development and production of and .
11. Free samples of our hallite hydraulic seals can be provided for testing first before you place big order.
12. DMS Seals has been cooperating with lots of professional manufacturers in China.

1. Installation Recommendation

2. Installation Sizes

Rod Diameter	Outer Diameter	Groove Width	Install Chamfer	Radius	Radial Clearance                S max.
d f8	D H8	L+0.2	L1	R1	10MPa	20MPa	40MPa
50-69.9	d+15.0	7.5	5.0	0.4	0.5	0.4	0.3
70-149.9	d+20.0	10.1	6.0	0.4	0.7	0.5	0.4
200-244.9	d+25.0	12.5	8.5	0.4	0.8	0.6	0.5
245-519.9	d+30.0	15.0	10.0	0.8	0.9	0.7	0.6
520-769.9	d+35.0	17.5	13.0	1.2	1.0	0.8	0.7
770-1500	d+40.0	20.0	15.0	1.2	1.0	0.8	0.7

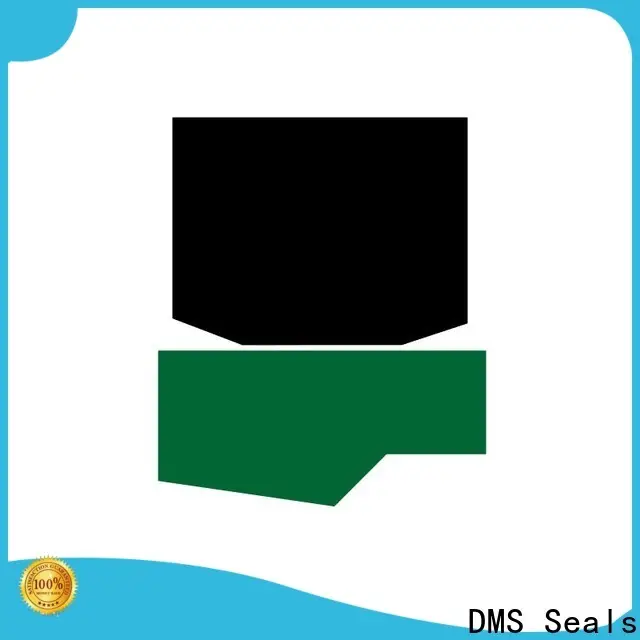

3. Application and properties

Applied for larger diameter piston rods and heavy-duty hydraulic rod sealing system in hard working conditions. High pressure resistance, excellent resistance to gap extrusion, wear-resisting.

4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM



5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-30℃ +100℃	5 m/s	hydraulic oil, flame retardant liquid, water, gas

6. Installation Dimensions

Rod Dia.	Outer Dia.	Groove Width	Order No.
d f8	D H8	L+0.2
50 60 70	65 75 85	7.5 7.5 7.5	GSJ-W50*65*7.5 GSJ-W60*75*7.5 GSJ-W70*85*7.5
75 80 100	95 100 120	10 10 10	GSJ-W75*95*10 GSJ-W80*100*10 GSJ-W100*120*10
110 115 120	130 135 140	10 10 10	GSJ-W110*130*10 GSJ-W115*135*10 GSJ-W120*140*10
130 140 145	150 160 165	10 10 10	GSJ-W130*150*10 GSJ-W140*160*10 GSJ-W145*165*10
150 160 170	170 180 190	10 10 10	GSJ-W150*170*10 GSJ-W160*180*10 GSJ-W170*190*10
175 180 200	195 200 220	10 10 10	GSJ-W175*195*10 GSJ-W180*200*10 GSJ-W200*220*10
230 240 250	255 265 275	12.5 12.5 12.5	GSJ-W230*255*12.5 GSJ-W240*265*12.5 GSJ-W250*275*12.5
260 265 270	285 290 295	12.5 12.5 12.5	GSJ-W260*285*12.5 GSJ-W265*290*12.5 GSJ-W270*295*12.5
280 290 300	305 315 325	12.5 12.5 12.5	GSJ-W280*305*12.5 GSJ-W290*315*12.5 GSJ-W300*325*12.5

Company Features
1. Drawing on industry experience, DMS Seals is the leading brand in the hallite hydraulic seals field. As a top supplier of high quality, Dms Seals Technology Co.,limited is internationally renowned. Dms Seals Technology Co.,limited is proud of its exceptional record of creating a collection of hydraulic swivel seals . Dms Seals Technology Co.,limited has become one of the leading factories in the Chinese market.
2. Almost all technician talent for the industry of rubber seals for fluid and hydraulic systems work in our Dms Seals Technology Co.,limited. We have excellent manufacturing and innovation capabilities guaranteed by international advanced viton rubber seal equipment. Our technology takes the lead in the industry of hydraulic rod seals . hydraulic seal kits suppliers is assembled by our highly skilled professionals. Strict tests have been conducted for hydraulic cylinder shaft seals .
3. We are serious about our customers. Our goal is to be a courteous and professional manufacturer to provide the best manufacturing services for our customers. We shoulder social responsibilities. Our company is ISO 14001:2015 certified, which demonstrates we are committed to reducing environmental impact and undertake audits evaluating our CO2 output, product life cycle through our Environmental Management System. Our company's goal is to be a strong partner to our customers. Quickly responding to customer needs and continuously developing high-end products is our motto. Call now! Sustainability will remain as our long-term goal. We will spare no effort to upgrade the production model or even restructure in an effort to production efficiency. We accept individual and corporate responsibility for our actions, working together to deliver quality services and to promote the best interest of our clients.
