High-quality hydraulic piston cup seals Supply for light and medium hydraulic systems
-
v s
1. During the production of DMS Seal Manufacturer hydraulic piston cup seals , a series of production processes are carried out, including cutting, polishing, oxidizing, and painting or coating.
2. DMS Seal Manufacturer hydraulic piston cup seals is developed by our highly efficient research and development department who holds relevant certifications in developing quality hardware products.
3. Electric indicators for DMS Seal Manufacturer hydraulic piston cup seals are required to check carefully. Its electromagnetic compatibility, static, harmonic, and other electric issues which may affect the operation of other devices will be handled properly.
4. Non-stop work for our hydraulic piston cup seals is its big strength.
5. hydraulic piston cup seals shows many new excellent characteristics, such as .
6. By reforming the technology of manufacturing hydraulic piston cup seals , it is more of .
7. The product is tested to be in conformity with the international quality standards.
8. The product has a great future in this realm because of its remarkable economic return.
9. The product has a variety of excellent properties and is increasingly used in various fields.
10. This product offers superior performance for every application.
Groove Diameter DN H9 | Groove Diameter | Groove Width | Radius | Radial Clearance S max. | O-Ring Cross Section | X-Ring Seal Cross Section | |||
Standard Application | Heavy Duty Application | d1 h9 | L1+0.2 | R1 | 10MPa | 20MPa | 30MPa | d2 | W |
40 - 79.9 | 25 - 140 | DN - 10.0 | 6.3 | 0.6 | 0.3 | 0.2 | 0.15 | 2.62 | 1.78 |
80 - 132.9 | 50 - 250 | DN - 13.0 | 8.3 | 1.0 | 0.4 | 0.3 | 0.15 | 3.53 | 2.62 |
133 - 252.9 | 100 - 480 | DN - 18.0 | 12.3 | 1.3 | 0.4 | 0.3 | 0.20 | 5.33 | 3.53 |
463 - 700 | 425 - 700 | DN - 31.0 | 16.3 | 1.8 | 0.5 | 0.4 | 0.30 | 7.00 | 5.33 |
Application and properties
Apply to the working condition of fast speed, high pressure, and the necessary pressure keeping. Available for piston accumulator, clamping cylinder and positioning cylinder, especially recommended for heavy duty and large diameter applications. Double safety with low friction and high elasticity, Low gas permeability, excellent sliding performance in high pressure applications, no crawling phenomenon, simple groove structure, easy installation.

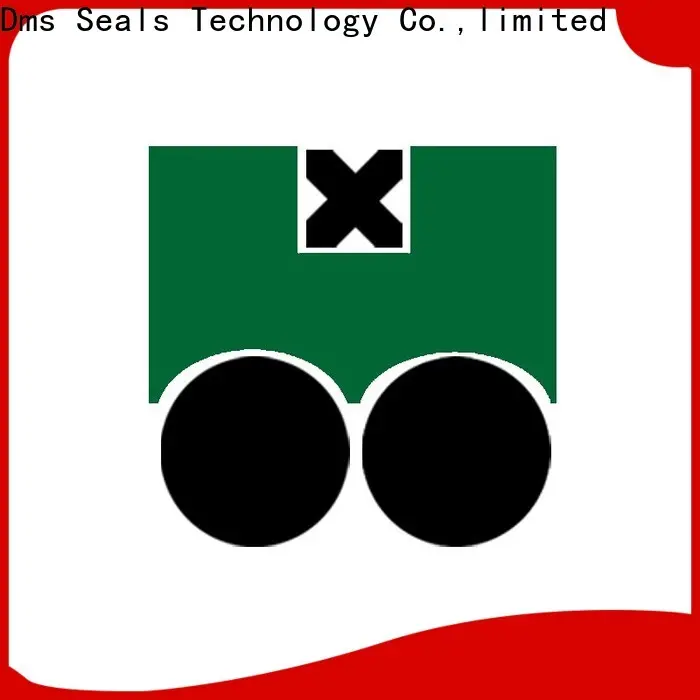

Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
X-Ring: NBR / FKM
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-60MPa | -30℃+200℃ | 3 m/s | hydraulic oil, flame retardant liquid, water and others |
Bore Dia. | Groove Dia. | Groove Width | Order No. | O-Ring Dimension |
d h9 | D1 H9 | L1+0.2 | ||
40 | 30 | 6.3 | DAQ2-40*30*6.3 | 29.82*2.62 |
48 | 38 | 6.3 | DAQ2-48*38*6.3 | 37.77*2.62 |
55 | 45 | 6.3 | DAQ2-55*45*6.3 | 44.12*2.62 |
65 | 55 | 6.3 | DAQ2-65*55*6.3 | 53.64*2.62 |
80 | 67 | 8.3 | DAQ2-80*67*8.3 | 66.27*3.53 |
95 | 82 | 8.3 | DAQ2-95*82*8.3 | 78.97*3.53 |
110 | 97 | 8.3 | DAQ2-110*97*8.3 | 94.84*3.53 |
125 | 112 | 8.3 | DAQ2-125*112*8.3 | 110.72*3.53 |
140 | 122 | 12.3 | DAQ2-140*122*12.3 | 120.02*5.33 |
Company Features
1. Dms Seals Technology Co.,limited is a leading enterprise for hydraulic piston cup seals with industry elites and . Dms Seals Technology Co.,limited is well recognized in global market for its hydraulic packing kits . With the first-class level equipment, advanced R&D ability, high quality hydraulic cylinder seals and wipers , Dms Seals Technology Co.,limited plays a big role in this industry. Dms Seals Technology Co.,limited is a production oriented company equipped with advanced technologies.
2. plays an important role in the quality assurance of cylinder packing kits . Dms Seals Technology Co.,limited will always update knowledge and increase professional and technical competence with its wholesale oil seals product. Dms Seals Technology Co.,limited is equipped with industry-leading automated production equipment and testing equipment.
3. We manufacture products through economically-sound processes that minimize negative environmental impacts while conserving energy and natural resources. We leverage diversity through inclusion of employees, empowering them to shape the future of the corporation through collaboration and innovation. Contact! Conducting business responsibly is the foundation of all we do. We will keep learn and practice how socially, ethically and environmentally business practices contribute to better conditions in responsible sourcing, health, and safety. Contact! Our aim is to provide the most competitive product solution and service to customers and continue to create the maximum value for them. Contact!
