High-quality hydraulic sealer with nbr or fkm o ring to high and low speed

Company Advantages
1. The manufacturing process of DMS Seal Manufacturer covers a range of steps, mainly including designing, fabric pre-treating (cleaning and shrinking), fabric cutting, sewing, size finalizing, ironing, and packing.
2. DMS Seal Manufacturer is developed combining both aesthetics and practicality. The design gives considerations to function, materials, structure, dimension, colors, and decoration effect to space.
3. DMS Seal Manufacturer is manufactured under a range of steps. It needs to be designed, molded, shaped and finished on the basis of collection and analysis of different foot types.
4. Several important factors related to fabric performance of DMS Seal Manufacturer have been taken into considerations. They are harmful substances content, colorfastness, breathability, flammability, fatigue resistance, and durability.
5. DMS Seal Manufacturer hydraulic sealer has been tested in the evaluation of quality and life-cycle. The product has been tested in terms of temperature resistance, stain resistance, and wear resistance.
6. The product is strictly checked by the quality inspection department. From the raw material to the shipment process, the defective product is not allowed to enter the market.
7. To ensure durability, our highly skilled QC professionals rigorously inspect the product.
8. This product is highly regarded in the market for its best quality.
9. The use of this product can cut energy costs significantly. For homeowners or business owners, this would be one of the most exciting benefits of it.
10. This product vastly improves the thermal efficiency of a building. As another layer of material across the building, it is able to stabilize the temperature within and cut down on the operating costs of the building itself.
11. 'The product is so light and easy to move, the rooms can be reconfigured quickly with very little effort', said one of the hotel owners.
12. This garment is appropriate for the intended function and is in line with the wearer’s preferences. It will end up as an approved garment in the customer’s wardrobe.

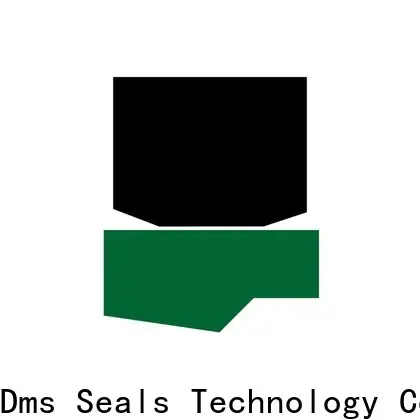

1. Installation Recommendation

2. Installation Sizes

Rod Diameter	Outer Diameter	Groove Width	Install Chamfer	Radius	Radial Clearance                S max.
d f8	D H8	L+0.2	L1	R1	10MPa	20MPa	40MPa
50-69.9	d+15.0	7.5	5.0	0.4	0.5	0.4	0.3
70-149.9	d+20.0	10.1	6.0	0.4	0.7	0.5	0.4
200-244.9	d+25.0	12.5	8.5	0.4	0.8	0.6	0.5
245-519.9	d+30.0	15.0	10.0	0.8	0.9	0.7	0.6
520-769.9	d+35.0	17.5	13.0	1.2	1.0	0.8	0.7
770-1500	d+40.0	20.0	15.0	1.2	1.0	0.8	0.7

3. Application and properties

Applied for larger diameter piston rods and heavy-duty hydraulic rod sealing system in hard working conditions. High pressure resistance, excellent resistance to gap extrusion, wear-resisting.

4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM



5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-30℃ +100℃	5 m/s	hydraulic oil, flame retardant liquid, water, gas

6. Installation Dimensions

Rod Dia.	Outer Dia.	Groove Width	Order No.
d f8	D H8	L+0.2
50 60 70	65 75 85	7.5 7.5 7.5	GSJ-W50*65*7.5 GSJ-W60*75*7.5 GSJ-W70*85*7.5
75 80 100	95 100 120	10 10 10	GSJ-W75*95*10 GSJ-W80*100*10 GSJ-W100*120*10
110 115 120	130 135 140	10 10 10	GSJ-W110*130*10 GSJ-W115*135*10 GSJ-W120*140*10
130 140 145	150 160 165	10 10 10	GSJ-W130*150*10 GSJ-W140*160*10 GSJ-W145*165*10
150 160 170	170 180 190	10 10 10	GSJ-W150*170*10 GSJ-W160*180*10 GSJ-W170*190*10
175 180 200	195 200 220	10 10 10	GSJ-W175*195*10 GSJ-W180*200*10 GSJ-W200*220*10
230 240 250	255 265 275	12.5 12.5 12.5	GSJ-W230*255*12.5 GSJ-W240*265*12.5 GSJ-W250*275*12.5
260 265 270	285 290 295	12.5 12.5 12.5	GSJ-W260*285*12.5 GSJ-W265*290*12.5 GSJ-W270*295*12.5
280 290 300	305 315 325	12.5 12.5 12.5	GSJ-W280*305*12.5 GSJ-W290*315*12.5 GSJ-W300*325*12.5
