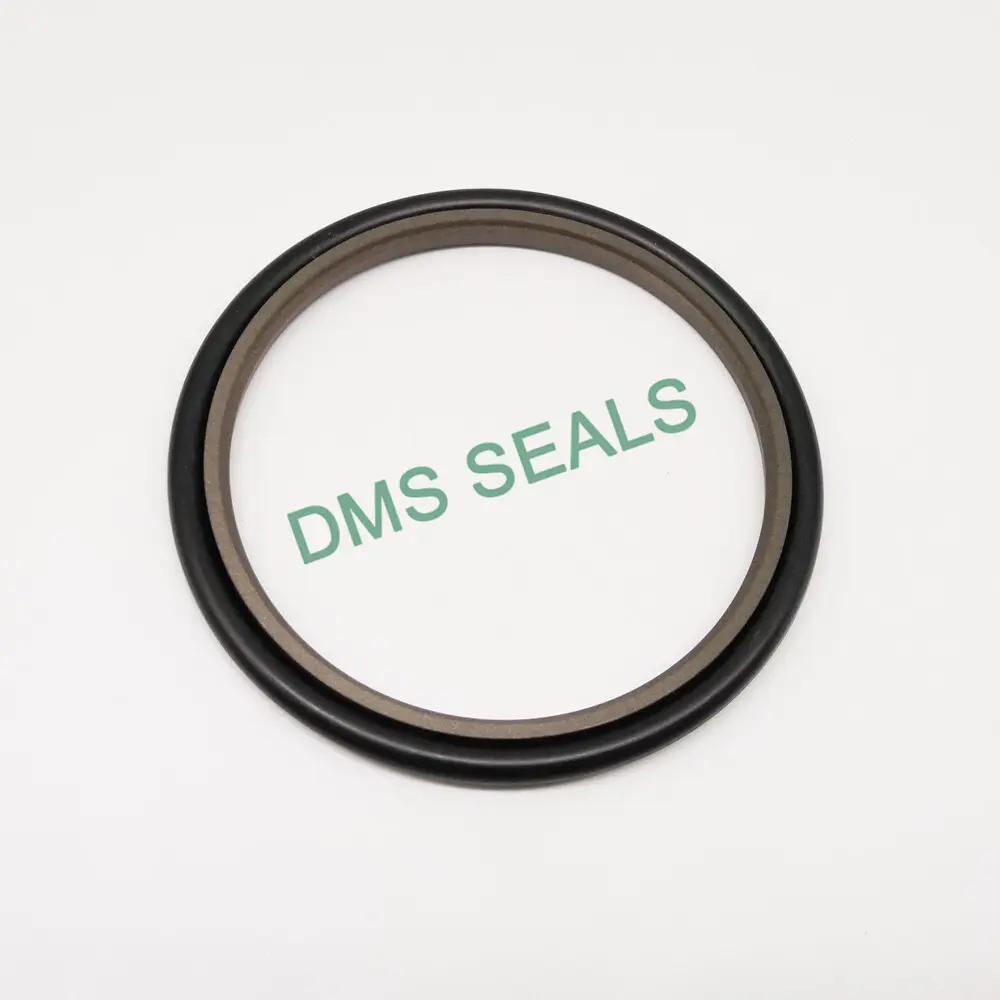

High-quality oil seal manufacturers china company for larger piston clearance

Company Advantages
1. DMS Seals has a very scientific design. Humidity, temperature, carbon dioxide and light, as well as other factors such as rain, airflow or noise, are environmental concerns in design.
2. DMS Seals oil seal manufacturers china marries traditional craftsmanship with an ever-changing collection of designs, resulting in a variety of styles that customers can choose from.
3. DMS Seals is carefully designed. This is considered by our designers who take the color, style and construction.
4. A series of tests ensured the quality of DMS Seals . The joint force, tensile strength, fiber stiffness, and fiber rebound were tested.
5. The applications of technology in manufacturing process can .
6. Owing to its , oil seal manufacturers china starts to occupy bigger market.
7. has wide application and promotion value in oil seal manufacturers china industry.
8. Test results prove that the oil seal manufacturers china with design is .
9. Due to its naturally beautiful patterns and lines, this product looks great in any space and matches well with other furniture.
10. This high quality and trendy product not only makes people look good and vigorous but also it can be worn for years.
11. This product, being lightweight and moisture-wicking, is at the top of the pyramid of comfortable clothing pieces. It will definitely make people look perfect.
12. This high quality and trendy product will make people more confident if they wear it, which eventually makes people look attractive among the crowd.

1. Installation Recommendation

2. Installation Sizes

Rod Diameter                         dN h9			Groove Diameter	Groove Width	Radius	Radial Clearance                S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	D1 H9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
3-7.9	8-18.9	-	dN+4.9	2.2	0.4	0.3	0.20	0.15	1.78
8-18.9	19-37.9	-	dN+7.3	3.2	0.6	0.4	0.25	0.15	2.62
19-37.9	38-199.9	8-18.9	dN+10.7	4.2	1.0	0.4	0.25	0.20	3.53
38-199.9	200-255.9	19-37.9	dN+15.1	6.3	1.3	0.5	0.30	0.20	5.33
200-255.9	256-649.9	38-199.9	dN+20.5	8.1	1.8	0.6	0.35	0.25	7.00
256-649.9	650-999.9	200-255.9	dN+24.0	8.1	1.8	0.6	0.35	0.25	7.00
650-999.9	≥1000.0	256-649.9	dN+27.3	9.5	2.5	0.7	0.50	0.30	8.40
≥1000.0	-	650-999.9	dN+38.0	13.8	3.0	1.0	0.70	0.60	12.00

3. Application and properties

Applicable to high and low speed reciprocating motion and high pressure system cylinder rod sealing. Good dimensional stability, not affected by temperature, low friction, strong corrosion resistance, could work in the situation with or without lubrication, easy installation.

Meet the standards of GB/T 15242.1-94 and GB/T 15242.3-94.



4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM



5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water, gas

6. Installation Dimensions

Rod Dia.	Groove Dia.	Groove Width	Order No.	O-Ring Dimensions
dN h9	D1 H9	L1+0.2
4 5 6	8.9 9.9 10.9	2.2 2.2 2.2	GSJ4*8.9*2.2 GSJ5*9.9*2.2 GSJ6*10.9*2.2	5.28*1.78 6.75*1.78 7.65*1.78
8 8 10	12.9 15.3 14.9	2.2 3.2 2.2	GSJ8*12.9*2.2 GSJ8*15.3*3.2 GSJ10*14.9*2.2	9.25*1.78 10.77*2.62 11.8*1.78
10 12 12	17.3 16.9 19.3	3.2 2.2 3.2	GSJ10*17.3*3.2 GSJ12*16.9*2.2 GSJ12*19.3*3.2	12.37*2.62 13.3*1.78 13.94*2.62
14 14 15	18.9 21.3 19.9	2.2 3.2 2.2	GSJ14*18.9*2.2 GSJ14*21.3*3.2 GSJ15*19.9*2.2	15.6*1.78 15.54*2.62 16.67*1.78
15 16 16	22.3 20.9 23.3	3.2 2.2 3.2	GSJ15*22.3*3.2 GSJ16*20.9*2.2 GSJ16*23.3*3.2	17.12*2.62 17.17*1.78 18.72*2.62
18 18 19	22.9 25.3 29.7	2.2 3.2 4.2	GSJ18*22.9*2.2 GSJ18*25.3*3.2 GSJ19*29.7*4.2	18.77*1.78 20.29*2.62 23.39*3.53
20 20 22	27.3 30.7 29.3	3.2 4.2 3.2	GSJ20*27.3*3.2 GSJ20*30.7*4.2 GSJ22*29.3*3.2	21.89*2.62 23.39*3.53 23.47*2.62
