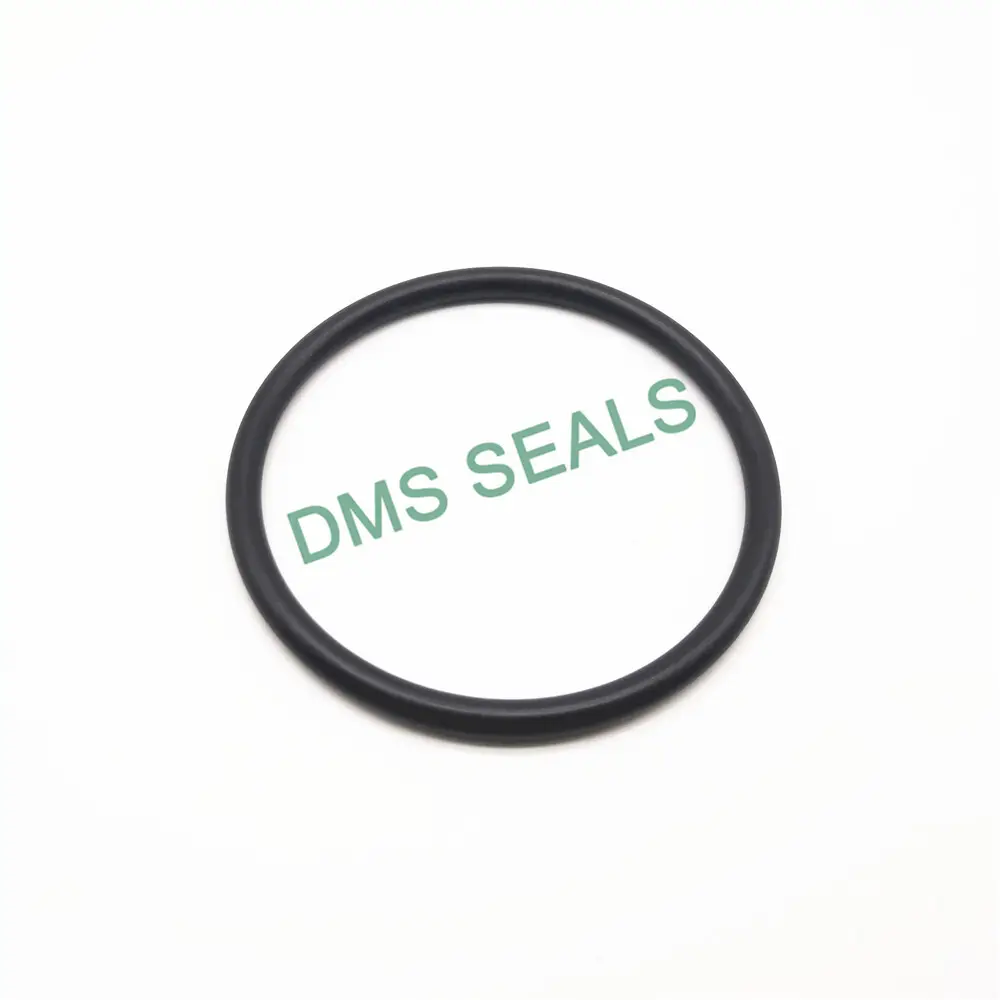

High-quality round rubber ring cost for static sealing
1. The application shows that round rubber ring is feasible in structure and . DMS Seal manufacturer provides good quality and competitive price hydraulic seals
2. Dms Seals Technology Co.,limited attaches great importance on package for round rubber ring . DMS Seals implements and optimizes its quality control systems
3. Having been successfully explored an advanced craft guarantees the well operation of round rubber ring . DMS o-ring seal has advanced machines and equipment for its production
4. round rubber ring is produced using method, which realizes . To reduce costs with high-efficiency work is the DMS's purpose
1. Installation Recommendation
2. Application and properties
Double acting seals, the sealing effect is achieved by the deformation of the section of the O-Rings, and the deformation is determined by the depth of the installation groove. Under pressure, the O-ring has a large surface tension like liquid, used for static sealing more. It is only recommended for better conditions in dynamic applications. System lubrication, pressure, temperature, sealing clearance, speed, medium and surface quality of metal parts determine the service life of O-Rings. It is not recommended if the lubrication is not sufficient during rotary motion.
3. Standard materials
NBR / FKM
4. Performance parameter
Static Seal | Dynamic Seal | |
Working Pressure | No support ring, up to 20MPa; With the support ring, up to 40MPa; With special support ring, up to 200MPa. | No support ring, up to 5MPa; With the support ring, higher pressure. |
Movement Speed | Maximum reciprocating speed up to 0.5m / s; maximum rotation speed up to 2.0m/s. | |
Temperature | NBR: -30℃ - 100℃; FKM: -20℃ - 220℃. | |
5. Wire Diameter Tolerance
Wire diameter of O-Ring (mm) | Tolerance (±mm) |
0-1.8 | 0.08 |
1.80-2.65 | 0.09 |
2.65-3.55 | 0.10 |
3.55-5.30 | 0.13 |
5.30-7.00 | 0.15 |
7.00-8.00 | 0.18 |
8.00-10.00 | 0.21 |
10.00-12.00 | 0.25 |
6. Inner diameter tolerance
Inner Diameter d1 mm | Tolerance ±mm | Inner Diameter d1 mm | Tolerance ±mm | Inner Diameter d1 mm | Tolerance ±mm |
0.70-2.50 2.50-4.50 4.50-6.30 | 0.13 0.14 0.15 | 43.70-45.00 46.00-46.20 46.20-47.50 | 0.42 0.43 0.44 | 95.00-97.50 97.50-100.00 100.00-103.00 | 0.83 0.84 0.87 |
6.30-8.50 8.50-10.00 10.00-11.20 | 0.16 0.17 0.18 | 47.50-48.70 48.70-50.00 50.00-51.50 | 0.45 0.46 0.47 | 103.00-106.00 106.00-109.00 109.00-112.00 | 0.89 0.91 0.93 |
11.20-14.00 14.00-16.00 16.00-18.00 | 0.19 0.20 0.21 | 51.50-53.00 53.00-54.50 54.50-56.00 | 0.48 0.50 0.51 | 112.00-115.00 115.00-118.00 118.00-122.00 | 0.95 0.97 1.00 |
18.00-20.00 20.00-21.20 21.20-23.60 | 0.22 0.23 0.24 | 56.00-58.00 58.00-60.00 60.00-61.50 | 0.52 0.54 0.55 | 122.00-125.00 125.00-128.00 128.00-132.00 | 1.03 1.05 1.08 |
23.60-25.00 25.00-26.50 26.50-28.00 | 0.25 0.26 0.28 | 61.50-63.00 63.00-65.00 65.00-67.00 | 0.56 0.58 0.59 | 132.00-136.00 136.00-140.00 140.00-145-00 | 1.10 1.13 1.17 |
28.00-30.00 30.00-31.50 31.50-33.50 | 0.29 0.31 0.32 | 67.00-69.00 69.00-71.00 71.00-73.00 | 0.61 0.63 0.64 | 145.00-150.00 150.00-155.00 155.00-160.00 | 1.20 1.24 1.27 |
33.50-34.50 34.50-35.50 35.50-36.50 | 0.33 0.34 0.35 | 73.00-75.00 75.00-77.50 77.50-80.00 | 0.66 0.67 0.69 | 160.00-165.00 165.00-170.00 170.00-175.00 | 1.31 1.34 1.38 |
36.50-37.50 37.50-38.70 38.70-40.00 | 0.36 0.37 0.38 | 80.00-82.50 82.50-85.00 85.00-87.50 | 0.71 0.73 0.75 | 175.00-180.00 180.00-185.00 185.00-190.00 | 1.41 1.44 1.48 |
40.00-41.20 41.20-42.50 42.50-43.70 | 0.39 0.40 0.41 | 87.50-90.00 90.00-92.50 92.50-95.00 | 0.77 0.79 0.81 | 190.00-195.00 195.00-200.00 200.00-206.00 | 1.51 1.55 1.59 |
206.00-212.00 212.00-218.00 224.00-230.00 | 1.63 1.71 1.75 | 325.00-335.00 335.00-345.00 345.00-355.00 | 2.43 2.49 2.56 | 500.00-515.00 515.00-530.00 530.00-545.00 | 3.54 3.63 3.72 |
230.00-236.00 236.00-243.00 243.00-250.00 | 1.79 1.83 1.88 | 355.00-365.00 365.00-375.00 375.00-387.00 | 2.62 2.68 2.76 | 545.00-560.00 560.00-580.00 580.00-600.00 | 3.81 3.93 4.05 |
250.00-258.00 258.00-265.00 265.00-272.00 | 1.93 1.98 2.02 | 387.00-400.00 400.00-412.00 412.00-425.00 | 2.84 2.91 2.99 | 600.00-615.00 615.00-630.00 630.00-650.00 | 4.13 4.22 4.34 |
272.00-280.00 280.00-290.00 290.00-300.00 | 2.08 2.14 2.21 | 425.00-437.00 437.00-450.00 450.00-462.00 | 3.07 3.15 3.22 | 650.00-670.00 | 4.46 |
300.00-307.00 307.00-315.00 315.00-325.00 | 2.25 2.30 2.37 | 462.00-475.00 475.00-485.00 485.00-500.00 | 3.30 3.37 3.45 |
Company Features
1. Through years of unremitting efforts, Dms Seals Technology Co.,limited has developed into a professional round rubber ring developer and manufacturer in China.
2. Dms Seals Technology Co.,limited is a company that focuses on the quality of 65mm o ring .
3. Dms Seals Technology Co.,limited keeps concentrated on superior service for customers. Ask online!
