Hot nbrfkm piston seals oring seal DMS Seal Manufacturer Brand

Diameter Range:

3-1600mm

Pressure Range:

0-45MPa

Temperature Range:

-30℃+100℃

Speed:

1m/s

Medium:

hydraulic oil, flame retardant liquid, water and others

Inquiry

Company Advantages
1. Dms Seals Technology Co.,limited only choose the safe material for manufacturing piston seals. DMS Seals provides professional design and production of high-grade o-ring seals
2. DMS Seals' production equipment and test equipment are on the leading level in the industry. the specifications of hydraulic piston seals,pneumatic piston seals can be customized.
3. Dms Seals Technology Co.,limited's customized services are support by a team of hydraulic piston seals sizes specialists. Seal we produced has applications in a wide range of fields.
4. The DMS Seal Manufacturer o-ring seal includes a motorized hydraulic piston seals in lieu of hand-wheel version. We have developed solutions of the sealing of special working condition.

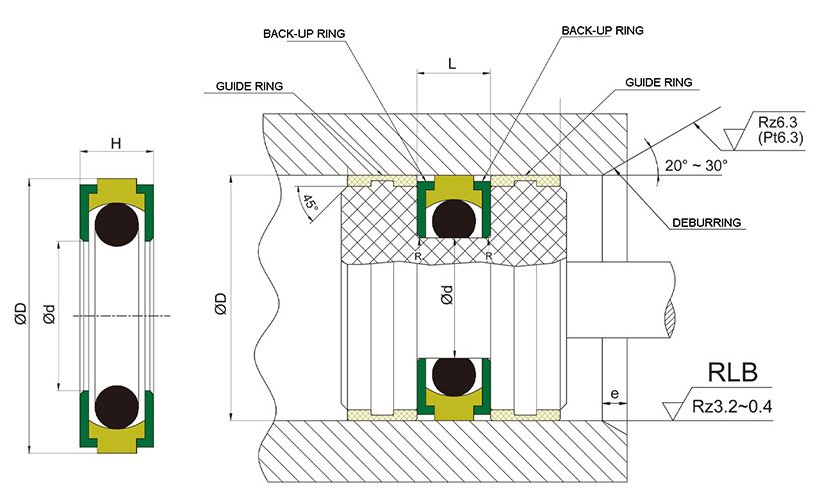

Installation Recommendation

undefined

Installation Sizes

D H8	d h9	L+0.2	H
˂96	D-16.3	8	7.5
96-190	D-20	10	9.5
191-380	D-28	13	12.5
381-1000	D-36	20	19.5

Application and properties

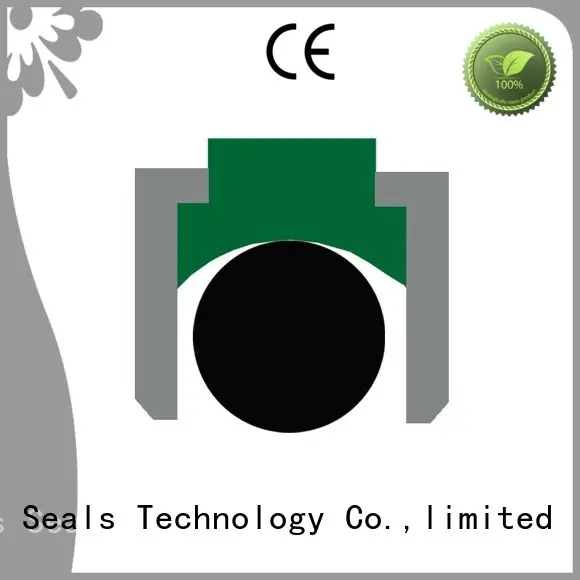

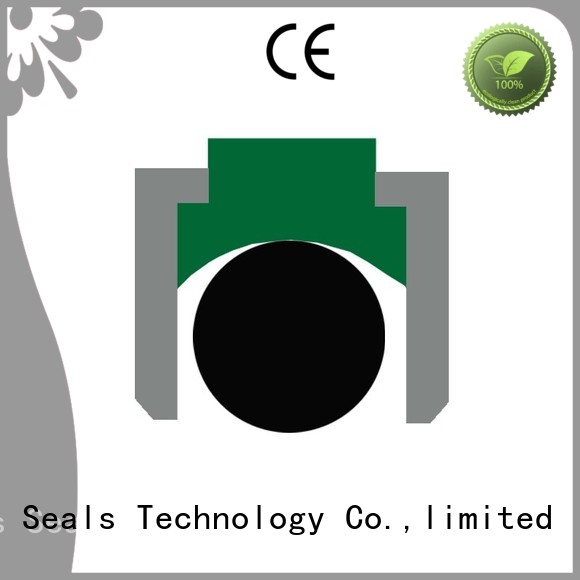

Apply to hydraulic piston sealing, Consisting of a seal ring, two L-shaped POM back-up rings and an acting force O-Ring. The back-up ring acts as a support and guide to ensure a tight sealing environment. High wear resistance, low friction, no crawling phenomenon, easy installation.

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

L-Ring: POM / PA

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-45MPa	-30℃+100℃	1 m/s	hydraulic oil, flame retardant liquid, water and others

Installation Dimensions

D H8	d h9	H	L	e	Order No.
40 45 50	23.2 28.2 33.2	7.5 7.5 7.5	8 8 8	7 7 7	DGDA4023.27.5 DGDA4528.27.5 DGDA5033.27.5
56 63 65	39.2 46.2 48.2	7.5 7.5 7.5	8 8 8	7 7 7	DGDA5639.27.5 DGDA6346.27.5 DGDA6548.27.5
70 75 80	53.2 58.2 63.2	7.5 7.5 7.5	8 8 8	7 7 7	DGDA7053.27.5 DGDA7558.27.5 DGDA8063.27.5
85 90 95	68.2 73.2 78.2	7.5 7.5 7.5	8 8 8	7 7 7	DGDA8568.27.5 DGDA9073.27.5 DGDA9578.27.5
100 105 110	80 85 90	9.5 9.5 9.5	10 10 10	10 10 10	DGDA100809.5 DGDA105859.5 DGDA110909.5
115 120 125	95 100 105	9.5 9.5 9.5	10 10 10	10 10 10	DGDA115959.5 DGDA1201009.5 DGDA1251059.5
130 135 140	110 115 120	9.5 9.5 9.5	10 10 10	10 10 10	DGDA1301109.5 DGDA1351159.5 DGDA1401209.5
145 150 155	125 130 135	9.5 9.5 9.5	10 10 10	10 10 10	DGDA1451259.5 DGDA1501309.5 DGDA1551359.5
160 170 180	140 150 160	9.5 9.5 9.5	10 10 10	10 10 10	DGDA1601409.5 DGDA1701509.5 DGDA1801609.5
190 200 210	170 172 182	9.5 12.5 12.5	10 13 13	10 12 12	DGDA1901709.5 DGDA20017212.5 DGDA21018212.5
220 225 235	192 197 207	12.5 12.5 12.5	13 13 13	12 12 12	DGDA22019212.5 DGDA22519712.5 DGDA23520712.5

Installation Dimensions
