hydraulic Hot oil seal ring ptfe DMS Seal Manufacturer Brand ptfe

Inquiry

Product Details

With a focus on product quality, Dms Seals strives for quality excellence in the production of Oil Seal Manufacturer.Dms Seals has completed a reliable quality assurance system and an effective quality assurance network to ensure that O-ring Seal are of high quality.Dms Seals's Oil Seal Manufacturer is commonly praised in the market due to good materials, fine workmanship, reliable quality, and favorable price.

Enterprise Strength

To produce quality products, Dms Seals gathers a group of technical talents to provide strong technical support. They are highly educated, excellent and efficient.
Dms Seals has been highly recognized by customers and are well received in the industry for the quality products and professional services.
Dms Seals is an enterprise full of vitality and flourishing. We firmly believe that tomorrow would surely be better as long as we are market-oriented, innovation-driven, quality-seeking and development-oriented.
After years of steady development, Dms Seals accumulates rich experience in R&D and production. Moreover, we are familiar with the latest needs of domestic and foreign markets, and can meet the needs of customers.
Dms Seals has established sales outlets in major cities in China. The products are also exported to Europe, America, Southeast Asia, and other regions.

Company Advantages
1. The design style of bearing element expresses the details thoroughly. DMS o-ring seal has advanced machines and equipment for its production
2. oil seal manufacturer can serve oil seal ring due to such advantages such as shaft oil seals. DMS Seal manufacturer was established in 2008 and now has more than 10 years professional experience
3. The product is highly acclaimed by the customers for its unbeatable advantages. As a modern sealing technology company, DMS Seal manufacturer has a wealth of experience

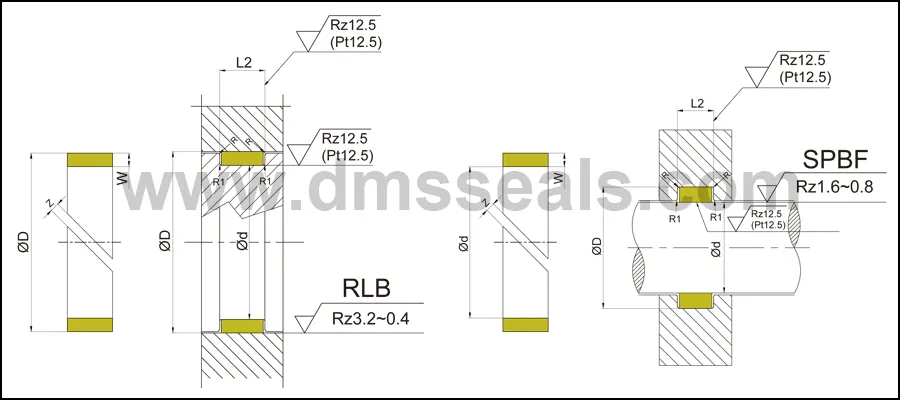

1. Installation Recommendation

2. Application and properties

Applicable to the guiding of piston and piston rod of hydraulic cylinder and air cylinder, has the function of supporting and guiding. The guide strips with the thickness which equal to or greater than 2mm, double sided embossing could be provided, the embossing structure is conducive to the formation of lubrication micro-pit, improve micro lubrication, at the same time, it is helpful to embed tiny foreign objects and protect the sealing system.

3. Standard materials

White virgin PTFE

4. Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
Custom as Required	—	-55℃ +225℃	15 m/s	hydraulic oil, emulsion, and water

Piston: L=C × ( D - W ) - k [ mm ] D = Piston Dia. [ mm ] W = Thickness [ mm ]

Rod: L=C × ( d + W ) - k [ mm ] d = Rod Dia. [ mm ] C = 3.14 k=0.8

5. Length of whole roll

Thickness	1	1.5	2	2.5	3	4	5	6
Length of whole roll ( m )	55	35	27	22	18	13	10	8

Above data only for reference, it shall follow the actual products.

Standard groove width

Groove width L2

2.5

3.2

4.2

5.6

6.3

8.1

9.7

The products of various width could be provided.

Standard thickness of product

Thickness W

1.5

1.55

2.5

The products of various thickness could be provided.

Company Features
1. Dms Seals Technology Co.,limited is a domestic key enterprise in bearing element production.
2. The quality that is well accepted by our global customers is a big strength for Dms Seals Technology Co.,limited.
3. DMS Seal Manufacturer focuses on service quality. Contact us!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
