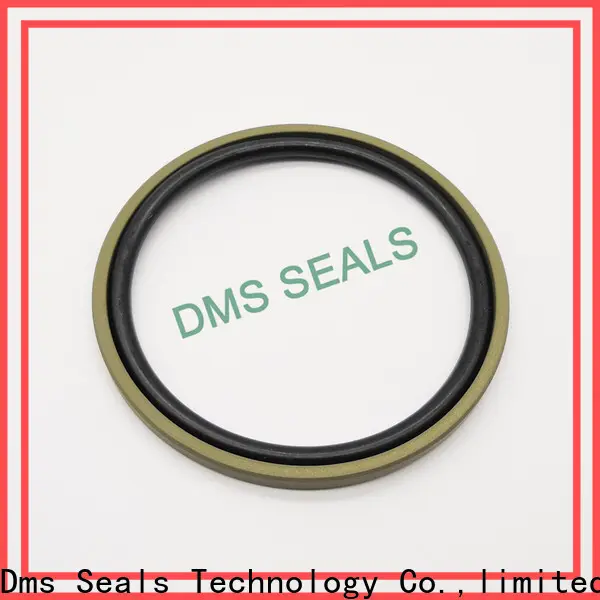

hot sale oil seal manufacturers china supplier for larger piston clearance

Company Advantages
1. Characterized by user-friendliness, DMS Seal Manufacturer has passed the national optical radiation quality safety inspection to provide users with a safe and healthy light environment.
2. DMS Seal Manufacturer has a unique design. It is by our designer to choose an outline, and use new fabric, new color, fabric operation, and other structure.
3. DMS Seal Manufacturer meets the fundamental safety provisions. It is covered by the Electricity (Safety) Regulations and must meet certain requirements before they can be legally sold.
4. This product has been reviewed and certified to meet the most stringent quality requirements.
5. Strict quality testing ensures reliable product quality.
6. This product is highly recommended for its high quality and versatility.
7. This product greatly caters to the industry development and market demand.
8. The product takes a lead in its market and has a broad market application prospect.
9. The product has a wide market due to its great economic benefits and practical application.

1. Installation Recommendation

2. Installation Sizes

Bore Diameter                         DN H9			Groove Diameter	Groove Width	Radius	Radial Clearance                S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	d1 h9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
8-14.9	15-39.9	-	DN-4.9	2.2	0.4	0.3	0.20	0.15	1.78
15-39.9	40-79.9	-	DN-7.5	3.2	0.6	0.4	0.25	0.15	2.62
40-79.9	80-132.9	15-39.9	DN-11.0	4.2	1.0	0.4	0.25	0.20	3.53
80-132.9	133-329.9	40-79.9	DN-15.5	6.3	1.3	0.5	0.30	0.20	5.33
133-329.9	330-699.9	80-132.9	DN-21.0	8.1	1.8	0.6	0.35	0.25	7.00
330-669.9	670-99.9	133-329.9	DN-24.5	8.1	1.8	0.6	0.35	0.25	7.00
670-999.9	≥1000	330-669.9	DN-28.0	9.5	2.5	0.7	0.50	0.30	8.40
≥1000	≥1000	≥1000	DN-38.0	13.8	3.0	1.0	0.70	0.60	12.00

3. Application and properties

Standard double acting seal. Suitable for reciprocating motion, allowing larger extrusion clearances, has wide application. Dynamic and static sealing property are excellent, be able to work in dusty condition. Low friction, simple groove, strong adaptability to work conditions.



4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM



5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water and others



6. Installation Dimensions

Bore Dia.	Groove Dia.	Groove Width	Order No.	O-Ring Dimensions
DN H9	d1 h9	L1+0.2
8 10 12	3.1 5.1 7.1	2.2 2.2 2.2	GSF8*3.1*2.2 GSF10*5.1*2.2 GSF12*7.1*2.2	2.90*1.78 4.80*1.8 6.70*1.8
14 15 15	9.1 10.1 7.5	2.2 2.2 3.2	GSF14*9.1*2.2 GSF15*10.1*2.2 GSF15*7.5*3.2	8.75*1.8 7.59*2.62 8.75*1.8
16 16 18	11.1 8.5 13.1	2.2 3.2 2.2	GSF16*11.1*2.2 GSF16*8.5*3.2 GSF18*13.1*2.2	10.82*1.78 7.59*2.62 12.42*1.78
18 20 20	10.5 15.1 12.5	3.2 2.2 3.2	GSF18*10.5*3.2 GSF20*15.1*2.2 GSF20*12.5*3.2	9.19*2.62 14.00*1.78 12.37*2.62
24 24 25	19.1 16.5 17.5	2.2 3.2 3.2	GSF24*19.1*2.2 GSF24*16.5*3.2 GSF25*17.5*3.2	18.77*1.78 15.54*2.62 17.12*2.62
25 28 28	14 20.5 17	4.2 3.2 4.2	GSF25*14*4.2 GSF28*20.5*3.2 GSF28*17*4.2	13.87*3.53 20.29*2.62 15.47*3.53
30 30 32	22.5 19 24.5	3.2 4.2 3.2	GSF30*22.5*3.2 GSF30*19*4.2 GSF32*24.5*3.2	21.89*2.62 26.70*1.78 23.47*2.62

Company Features
1. Dms Seals Technology Co.,limited is a highly reliable supplier and manufacturer of oil seal manufacturers china . Dms Seals Technology Co.,limited is a customers trusted options for custom oil seals production. DMS Seal Manufacturer has been focusing on the research and development of diaphragm seal manufacturer products.
2. DMS Seal Manufacturer always continues to develop its technology. Dms Seals Technology Co.,limited has a seasoned and advanced R&D team. Dms Seals Technology Co.,limited is known for its efficient production equipment. We have expert technicians in-house who provide our customers with an unparalleled degree of engineering expertise to ensure they get the highest quality finished product.
3. Establishing DMS Seal Manufacturer into a world-famous brand is the ultimate goal. Check it! Dms Seals Technology Co.,limited always puts high quality in the first place. Check it! To be a leading window seal manufacturers supplier, DMS Seal Manufacturer needs the effort of each staff. Check it!

hot sale oil seal manufacturers china supplier for larger piston clearance

oil seal manufacturers china

Type:
