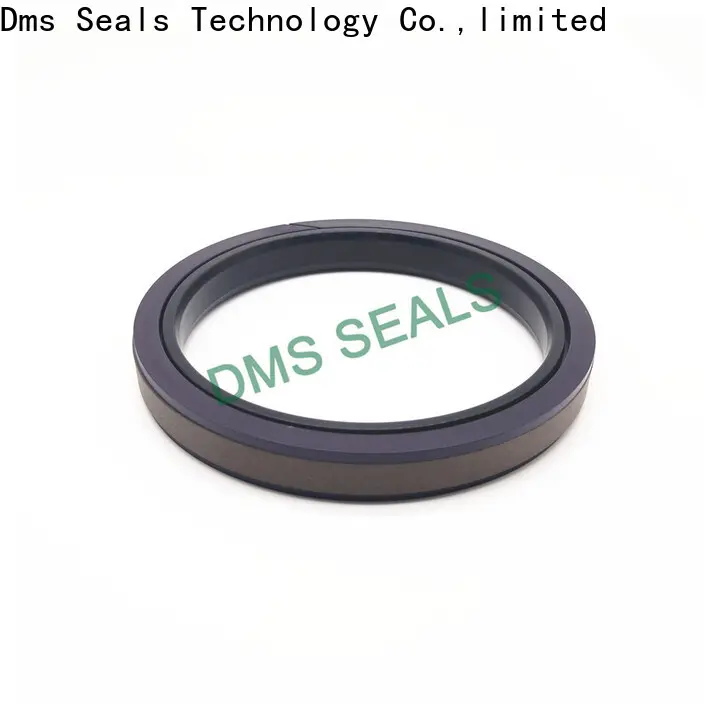

hot sale plastic seal manufacturer wholesale for piston and hydraulic cylinder

Company Advantages
1. DMS Seal Manufacturer plastic seal manufacturer is designed to be as accessible and usable as possible.
2. The materials of plastic seal manufacturer include , which makes its quality better.
3. DMS Seal Manufacturer ensures the accuracy of specifications and the unity of structure.
4. DMS Seal Manufacturer has met the industrial design requirements.
5. All materials Dms Seals Technology Co.,limited are using are safe for people and friendly to environment.
6. Apart from this, the offered range is designed with high precision in order to meet the set industry standards.
7. As our QC team is well-trained and keeps up with the trends, its quality has been greatly improved.
8. Its quality is strictly controlled by our professional QC team.
9. This product is designed for both general and specialist use.
10. Our professional quality check team conducts strict quality inspections for the sake of high quality.
11. The product provides benefits for people by increasing comfort and well-being and helping to maintain the healthy air quality of buildings.
12. When used in the construction projects, the product will not produce any radioactive substance that will do harm to both people and the environment.
13. It is hardly worn or scratched because this product is extremely hard and resistant to sharps and pressure.
14. People praise that it not only functions as tableware, but also it gives them a feeling of a piece of fine art with decorative value.

1. Installation Recommendation

2. Application and properties

Suitable for long stroke, a wide range of fluids and high temperature occasions. The application of heavy duty double acting piston sealing under high pressure conditions is excellent. Applicable to larger piston clearance , it has good leakage control, extrusion resistance and wear resistance in heavy duty and construction machinery cylinder piston sealing system. Good static sealing property, simple groove structure, larger extrusion clearances can be allowed, be able to work in dusty condition.

3. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Back-up ring: POM / PA

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
50 - 350mm	0 - 50MPa	-30℃ +100℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others

5. Installation Dimensions

Nominal Size of Packing, and Housing dimensions			L+0.2	Order No.
D1	dN	H
50 55 60	36 41 46	8.5 8.5 8.5	9 9 9	SPGW50*36*8.5 SPGW55*41*8.5 SPGW60*46*8.5
63 65 70	48 50 55	10.5 10.5 10.5	11 11 11	SPGW63*48*10.5 SPGW65*50*10.5 SPGW70*55*10.5
75 80 85	60 65 70	10.5 10.5 10.5	11 11 11	SPGW75*60*10.5 SPGW80*65*10.5 SPGW85*70*10.5
90 95 100	75 80 85	10.5 10.5 12	11 11 12.5	SPGW90*75*10.5 SPGW95*80*10.5 SPGW100*85*12
105 110 115	90 95 100	12 12 12	12.5 12.5 12.5	SPGW105*90*12 SPGW110*95*12 SPGW115*100*12
120 125 130	105 102 107	12 15.5 15.5	12.5 16 16	SPGW120*105*12 SPGW125*102*15.5 SPGW130*107*15.5
135 140 145	112 117 122	15.5 15.5 15.5	16 16 16	SPGW135*112*15.5 SPGW140*117*15.5 SPGW145*122*15.5
150 155 160	127 132 137	15.5 15.5 15.5	16 16 16	SPGW150*127*15.5 SPGW155*132*15.5 SPGW160*137*15.5
165 170 180	142 147 157	15.5 15.5 15.5	16 16 16	SPGW165*142*15.5 SPGW170*147*15.5 SPGW180*157*15.5
185 190 200	162 167 177	15.5 15.5 15.5	16 16 16	SPGW185*162*15.5 SPGW190*167*15.5 SPGW200*177*15.5
210 220 225	187 197 202	15.5 15.5 17	16 16 17.5	SPGW210*187*15.5 SPGW220*197*15.5 SPGW225*202*15.5
230 240 250	207 217 222	17 17 17	17.5 17.5 17.5	SPGW230*207*15.5 SPGW240*217*15.5 SPGW250*222*17
260 270 280	232 242 252	17 17 17	17.5 17.5 17.5	SPGW260*232*17 SPGW270*242*17 SPGW280*252*17
300 320 350	272 292 322	17 17 17	17.5 17.5 17.5	SPGW300*272*17 SPGW320*292*17 SPGW350*322*17

Company Features
1. Among many competitors, Dms Seals Technology Co.,limited is one of the most competitive ones. We center on the development and production of . Dms Seals Technology Co.,limited is regarded as an indispensable provider of . We have earned a wealth of experience in designing and manufacturing. Dms Seals Technology Co.,limited is a trustworthy Chinese supplier of plastic seal manufacturer . Our business includes product concept, development, designing, and manufacturing.
2. DMS Seal Manufacturer keeps optimizing the technology to produce depac mechanical seal . The high quality of gaco seals supplier has promoted DMS Seal Manufacturer to be at the leading position. With the application of technology, the quality assurance of rubber seal molding has been greatly improved.
3. DMS Seal Manufacturer respects the rights of the customer to confidentiality. Call now! Our ambition is to win the market through our professional d seal suppliers and service. Call now! Being a professional enterprise is the persisting goal for DMS Seal Manufacturer. Call now! DMS Seal Manufacturer will continue to serve every customer with professional service. Call now!
