2. Application and properties

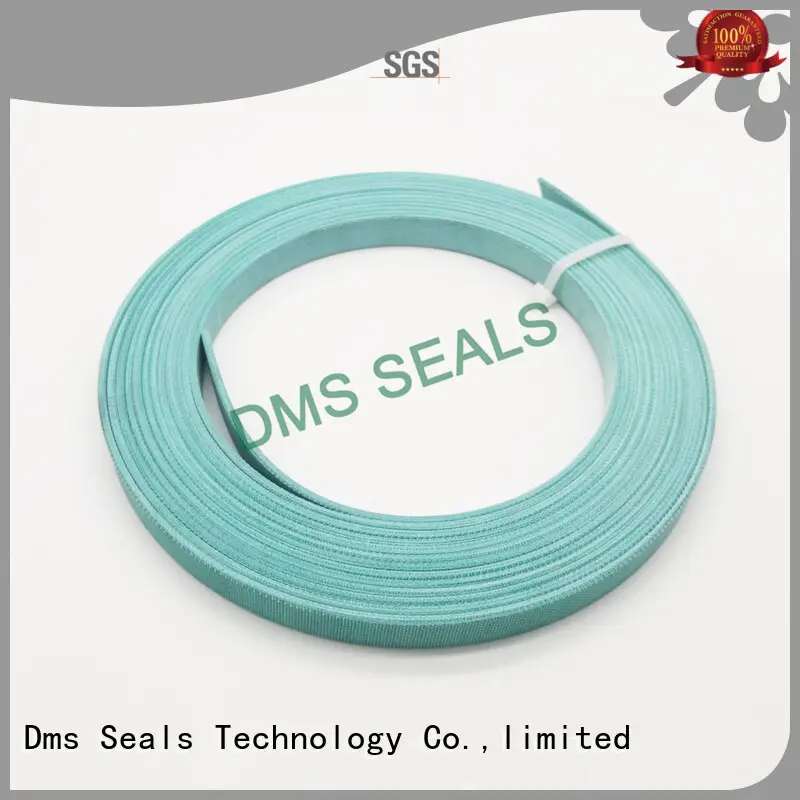

Applicable to the guiding of piston and piston rod of hydraulic cylinder and air cylinder, has the function of supporting and guiding. The guide strips with the thickness which equal to or greater than 2mm, double sided embossing could be provided, the embossing structure is conducive to the formation of lubrication micro-pit, improve micro lubrication, at the same time, it is helpful to embed tiny foreign objects and protect the sealing system.

3. Standard materials

Phenolic resin

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
Custom as Required	0-100 MPa	-60℃ +120℃	1 m/s	hydraulic oil, emulsion, and water

Piston:  L=C × ( D - W ) - k [ mm ] D = Piston Dia. [ mm ] W = Thickness [ mm ]

Rod:    L=C × ( d + W ) - k [ mm ] d = Rod Dia. [ mm ]  C = 3.14  k=0.8

5. Standard groove width and standard thickness

Standard groove width

Groove width L2

8.1

10

15

20

5.6

6.3

9.5

9.7

12.7

25

30

40

50

5

6

8

35

45

The products of various width could be provided.

Standard thickness of product

Thickness W

2

2.5

3

3.5

4

6

3.18

3.17

The products of various thickness could be provided.
