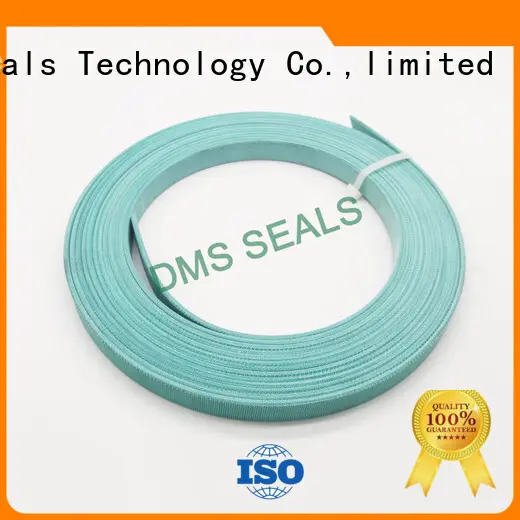

Hydraulic cylinder phenolic resin hard guide strip wear ring

Company Advantages
1. DMS Seal Manufacturer rubber seal ring manufacturers is elaborately manufactured using the latest advanced technology and production method.
2. DMS Seal Manufacturer bearing element is offered with the help of talented team of craftsmen.
3. The production of DMS Seal Manufacturer rubber seal ring manufacturers follows the normative conditions.
4. The raw materials of DMS Seal Manufacturer bearing element undergoes the strict selection, which is conducted by our workers.
5. Strict quality tests have been conducted to guarantee the quality of the product.
6. It is in high accordance with the quality inspection standards.
7. The product has been carefully checked by both our own QC staff and the authoritative third parties.
8. Every aspect of the product is excellent, including performance, durability, and practicality.
9. The reliability of this product guarantees a consistent performance throughout the lifetime and ultimately ensures the total cost of ownership is as low as possible.
10. DMS Seal Manufacturer is an expert in manufacturing exceptional new bearing element like our rubber seal ring manufacturers.
11. Our bearing element collection is distributed in many countries.
12. Hotel operators choose to trust and rely on Dms Seals Technology Co.,limited's unique integrated one-stop service system.
13. It is highly important for DMS Seal Manufacturer to pay attention to the quality of bearing element .
14. This product far exceeds other products in terms of performance/price ratio.

1. Installation Recommendation

2. Application and properties

Applicable to the guiding of piston and piston rod of hydraulic cylinder and air cylinder, has the function of supporting and guiding. The guide strips with the thickness which equal to or greater than 2mm, double sided embossing could be provided, the embossing structure is conducive to the formation of lubrication micro-pit, improve micro lubrication, at the same time, it is helpful to embed tiny foreign objects and protect the sealing system.

3. Standard materials

Phenolic resin

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
Custom as Required	0-100 MPa	-60℃ +120℃	1 m/s	hydraulic oil, emulsion, and water

Piston:  L=C × ( D - W ) - k [ mm ] D = Piston Dia. [ mm ] W = Thickness [ mm ]

Rod:    L=C × ( d + W ) - k [ mm ] d = Rod Dia. [ mm ]  C = 3.14  k=0.8

5. Standard groove width and standard thickness

Standard groove width

Groove width L2

8.1

10

15

20

5.6

6.3

9.5

9.7

12.7

25

30

40

50

5

6

8

35

45

The products of various width could be provided.

Standard thickness of product

Thickness W

2

2.5

3

3.5

4

6

3.18

3.17

The products of various thickness could be provided.
