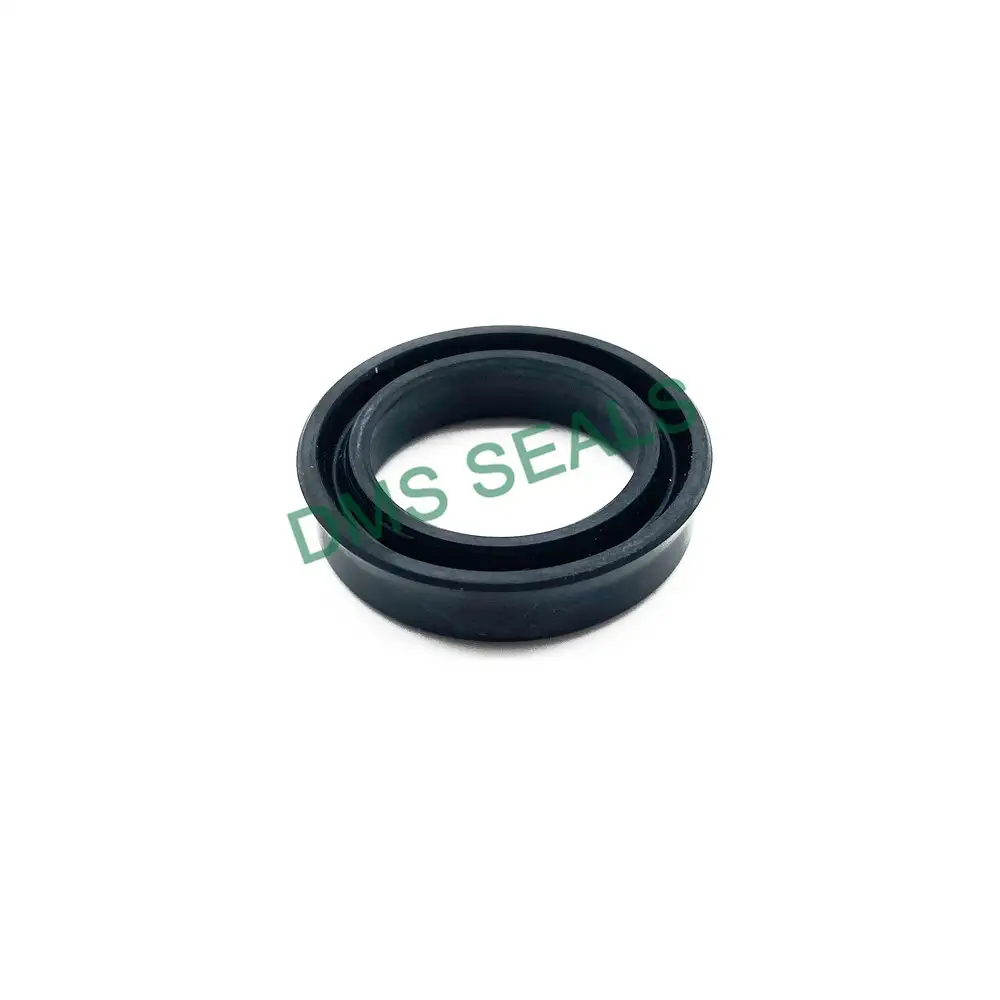

Hydraulic NBR Uph Type Piston Seal U-Shaped Ring
5.0
Diameter Range:
6.3~300mm
Pressure Range:
≤400bar
Temperature Range:
-35~+120
Speed:
0.5m/s
Medium:
Hydraulic
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Description
bgb
Usable for both piston seal and rod seal，Designed with a large cross-section, it can be used for a wide range of applications.Available in Fluororubber and NBR.
| Item | Specifications |
| Product Name | UPH |
| Products Category | Hydraulic seals, Oil seals, O-Rings |
| Material | PTFE, PU, NBR, FKM, PA, POM, Silicone, EPDM, FFKM, UPE, PEEK etc. |
| Propeties | High temperature, low temperature, high pressure, low pressure,friction resistance |
| Sizes | Standard and customize |
| Medium | Hydraulic oil, anti-fire fluid, water, gas etc |
| Application | excavators, loaders, graders, dump trucks, forklifts, bulldozers, scrapers, mining trucks, cranes, aerial vehicles, garbage transfer vehicle, sliding cars, agricultural machinery, logging equipment, etc. |
Product Parameters
bg
| NO. | SIZE | NO. | SIZE |
| UPH-6.3 | UPH6.3*16.3*8 | UPH-105 | UPH105*125*12 |
| UPH-7.1 | UPH7.1*17.1*8 | UPH-105A | UPH105*125*15 |
| UPH-8 | UPH8*18*8 | UPH-106 | UPH106*126*12 |
| UPH-9 | UPH9*19*8 | UPH-110 | UPH110*130*15 |
| UPH-10 | UPH10*20*8 | UPH-112 | UPH112*132*15 |
| UPH-11.2 | UPH11.2*21.2*8 | UPH-115 | UPH115*135*15 |
| UPH-12 | UPH12*22*8 | UPH-118 | UPH118*138*15 |
| UPH-12.5 | UPH12.5*22.5*8 | UPH-120 | UPH120*140*15 |
| UPH-14 | UPH14*24*8 | UPH-125 | UPH125*145*15 |
| UPH-15 | UPH15*25*8 | UPH-130 | UPH130*150*15 |
| UPH-16 | UPH16*26*8 | UPH-135 | UPH135*155*15 |
| UPH-18 | UPH18*28*8 | UPH-135 | UPH135*160*19 |
| UPH-20 | UPH20*30*8 | UPH-140 | UPH140*160*15 |
| UPH-22.4 | UPH22.4*32.4*8 | UPH-145 | UPH145*165*15 |
| UPH-25 | UPH25*35*8 | UPH-150 | UPH150*170*15 |
| UPH-28 | UPH28*43*10 | UPH-155 | UPH155*180*15 |
| UPH-30 | UPH30*45*10 | UPH-160 | UPH160*185*15 |
| UPH-35 | UPH35*50*10 | UPH-165 | UPH165*190*15 |
| UPH-35.5 | UPH35.5*50.5*10 | UPH-170 | UPH170*195*15 |
| UPH-40 | UPH40*55*10 | UPH-175 | UPH175*200*15 |
| UPH-40 | UPH40*60*10 | UPH-180 | UPH180*205*15 |
| UPH-45 | UPH45*60*10 | UPH-185 | UPH185*210*15 |
| UPH-48 | UPH48*63*10 | UPH-190 | UPH190*215*15 |
| UPH-50 | UPH50*65*10 | UPH-200 | UPH200*225*15 |
| UPH-53 | UPH53*73*12 | UPH-205 | UPH205*235*18 |
| UPH-55 | UPH55*75*12 | UPH-210 | UPH210*235*18 |
| UPH-55 | UPH55*80*12 | UPH-212 | UPH212*237*19 |
| UPH-56 | UPH56*76*12 | UPH-220 | UPH220*245*18 |
| UPH-60 | UPH60*80*12 | UPH-225 | UPH225*250*18 |
| UPH-63 | UPH63*83*12 | UPH-230 | UPH230*255*18 |
| UPH-65 | UPH65*85*12 | UPH-236 | UPH236*261*18 |
| UPH-70 | UPH70*90*12 | UPH-250 | UPH250*275*18 |
| UPH-75 | UPH75*95*12 | UPH-255 | UPH255*280*18 |
| UPH-80 | UPH80*100*12 | UPH-270 | UPH270*300*18 |
| UPH-85 | UPH85*105*12 | UPH-280 | UPH280*310*18 |
| UPH-90 | UPH90*100*12 | UPH-280 | UPH280*310*22 |
| UPH-95 | UPH95*115*12 | UPH-290 | UPH290*320*18 |
| UPH-100 | UPH100*120*12 | UPH-300 | UPH300*330*18 |
| UPH-100 | UPH100*125*15 | UPH-300 | UPH300*330*19 |
