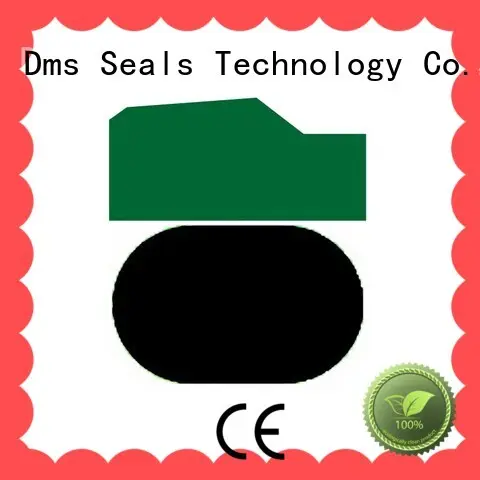

hydraulic piston seals for sale DMS Seal Manufacturer 1

hydraulic piston seals for sale DMS Seal Manufacturer 2

hydraulic piston seals for sale DMS Seal Manufacturer

Diameter Range:

3-1600mm

Pressure Range:

0-60MPa

Temperature Range:

-45℃ +200℃

Speed:

15 m/s

Medium:

hydraulic oil, flame retardant liquid, water and others

Inquiry

Company Advantages
1. DMS Seal Manufacturer hydraulic piston seals will go through quality assurance tests. It has passed electric component anti-fatigue testing, insulation level, energy-saving level, and electromagnetic safety test. DMS Seal manufacturer was established in 2008 and now has more than 10 years professional experience
2. Dms Seals Technology Co.,limited's customer service has high adaptability for different requirements. Seal we produced has applications in a wide range of fields
3. The product features an easy operation. It has a relatively simple operating system combining a powerful processing flow and provides simple operation instruction. High-end talents and advanced technology have enabled DMS o-ring seal quality to reach the industry's leading level

Installation Recommendation

undefined

Installation Sizes

Bore Diameter DN H9			Groove Diameter	Groove Width	Radius	Radial Clearance S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	d1 h9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
8-16.9	17-26.9	--	DN-4.9	2.2	0.4	0.30	0.20	0.15	1.78
17-26.9	27-59.9	--	DN-7.3	3.2	0.6	0.40	0.25	0.15	2.62
27-59.9	60-199.9	17-26.9	DN-10.7	4.2	1.0	0.50	0.30	0.20	3.53
60-199.9	200-255.9	27-59.9	DN-15.1	6.3	1.3	0.70	0.40	0.25	5.33
200-255.9	256-669.9	60-199.9	DN-20.5	8.1	1.8	0.80	0.60	0.35	7.00
256-669.9	670-999.9	200-669.9	DN-24.0	8.1	1.8	0.90	0.70	0.40	7.00
670-999.9	--	256-669.9	DN-28.0	9.5	2.5	1.00	0.80	0.60	8.40
--	1000-2000	--	DN-28.0	9.5	2.5	1.00	0.80	0.60	8.40
--	--	670-999.9	DN-38.0	13.8	3.0	1.20	0.90	0.60	12.00
1000-2700	--	--	DN-38.0	13.8	3.0	1.20	0.90	0.60	12.00

Application and properties

Standard single acting sealing. Suitable for reciprocating environment, allowing larger extrusion clearances, has wide application. Dynamic and static sealing property are good, be able to work in dusty condition. Low friction, simple groove, strong adaptability to work conditions.

Standard materials

Sealing ring: filled PTFE

O-ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water and others

Installation Dimensions

Bore Dia.	Groove Dia.	Width	Order No.	O-ring Dimension
D H9	d1 h9	L1+0.2	Order No.	O-ring Dimension
9 10 12	4.1 5.1 7.1	2.2 2.2 2.2	GSD94.12.2 GSD105.12.2 GSD127.12.2	3.681.78 4.801.8 6.70*1.8
15 18 20	10.1 10.7 15.1	2.2 3.2 2.2	GSD1510.12.2 GSD1810.73.2 GSD2015.12.2	9.251.78 9.192.62 14.0*1.78
20 22 25	12.7 14.7 17.7	3.2 3.2 3.2	GSD2012.73.2 GSD2214.73.2 GSD2517.73.2	12.372.62 13.942.62 17.12*2.62
27 28 30	16.3 17.3 19.3	4.2 4.2 4.2	GSD2716.34.2 GSD2817.34.2 GSD3019.34.2	15.473.53 16.43.53 18.66*3.53
32 32 35	24.7 21.3 24.3	3.2 4.2 4.2	GSD3224.73.2 GSD3221.34.2 GSD3524.34.2	23.472.62 20.223.53 23.40*3.53
36 38 40	25.3 27.3 32.7	4.2 4.2 3.2	GSD3625.34.2 GSD3827.34.2 GSD4032.73.2	243.53 263.53 31.42*2.62
40 45 48	29.9 34.3 37.3	4.2 4.2 4.2	GSD4029.34.2 GSD4534.34.2 GSD4837.34.2	28.173.53 32.923.53 36.09*3.53
50 50 52	39.3 34.9 41.3	4.2 6.3 4.2	GSD5039.34.2 GSD5034.96.3 GSD5241.34.2	37.703.53 32.695.33 40.87*3.53
55 60 63	44.3 44.9 52.3	4.2 6.3 4.2	GSD5544.34.2 GSD6044.96.3 GSD6352.34.2	44.043.53 43.825.33 50.39*3.53
63 64 65	47.9 48.9 49.9	6.3 6.3 6.3	GSD6347.96.3 GSD6448.96.3 GSD6549.96.3	46.995.33 46.995.33 46.99*5.33
70 70 75	59.3 54.9 59.9	4.2 6.3 6.3	GSD7059.34.2 GSD7054.96.3 GSD7559.96.3	56.743.53 53.345.33 56.52*5.33
80 80 85	64.9 59.5 69.9	6.3 8.1 6.3	GSD8064.96.3 GSD8059.58.1 GSD8569.96.3	62.875.33 587.0 69.22*5.33
90 90 95	74.9 69.5 79.9	6.3 8.1 6.3	GSD9074.96.3 GSD9069.58.1 GSD9579.96.3	72.395.33 687.0 78.74*5.33
95 100 100	74.5 84.9 79.5	8.1 6.3 8.1	GSD9574.58.1 GSD10084.96.3 GSD10079.58.1	737.0 81.925.33 78*7.0
110 120 125	94.9 104.9 104.5	6.3 6.3 6.3	GSD11094.96.3 GSD120104.96.3 GSD125109.96.3	91.445.33 104.145.33 107.32*5.33

Installation Dimensions
