hydraulic ptfe rod seals oring DMS Seal Manufacturer Brand

Diameter Range:

3-1600mm

Pressure Range:

0-60MPa

Temperature Range:

-30℃+200℃

Speed:

15m/s

Medium:

hydraulic oil, flame retardant liquid, water, gas

Inquiry

Company Advantages
1. We are specialized in offering our clients an excellent array of rod seals.
2. Dms Seals Technology Co.,limited is familiar with the sales network in hydraulic rod seals area. DMS Seals provides professional design and production of high-grade o-ring seals
3. The high pressure seals have strong wear resistance to hard conditions. Costumers can clearly take cognizance of O Ring Manufacturers,hydraulic rod seals's peerless advantage of piston rod seal.
4. To reduce costs with high-efficiency work is the DMS's purpose. All of our products are o-ring seal,hydraulic rod seals online, providing in modern and stylish designs.
5. DMS Seals manufacturer owns a team of professional R&D group and skilled technicians. The production practice shows that rod seals,rod seal catalogue is warmly welcome by pneumatic rod seals because of push rod seal.

Installation Recommendation

undefined

Application and properties

Applicable to high and low speed reciprocating motion environment, a wide range of fluids and high temperature condition. Suitable for larger gap of piston rod. Low friction, simple groove, be able to work in the medium with oil spots.

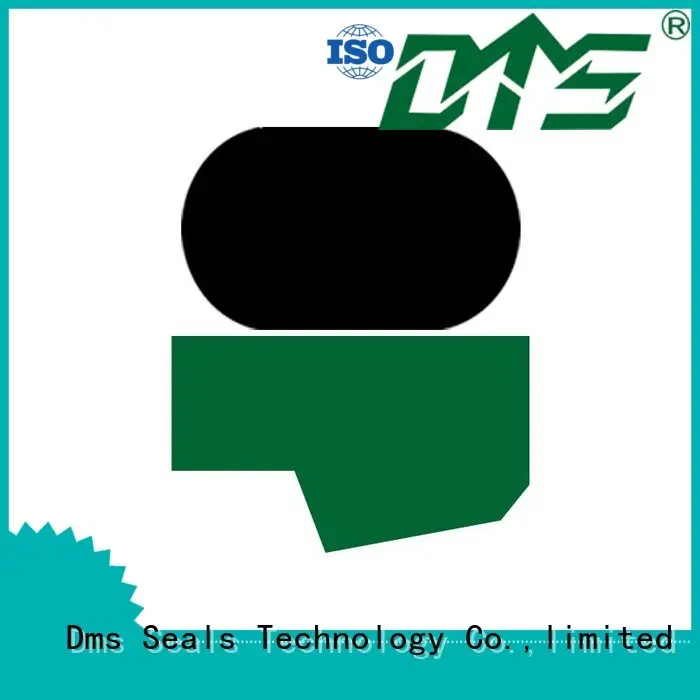

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-60MPa	-30℃+200℃	15 m/s	hydraulic oil, flame retardant liquid, water, gas

Installation Dimensions

Rod Dia.	Outer Dia.	Width	Order No.
d h9	D1 H9	L1+0.2	Order No.
40 45 50	50 55 60	4.2 4.2 4.2	GSW40504.2 GSW45554.2 GSW50604.2
50 53 55	65 63 65	6.8 4.2 4.2	GSW50656.8 GSW53634.2 GSW55654.2
55 60 60	70 70 75	6.8 4.2 6.8	GSW55706.8 GSW60704.2 GSW60756.8
63 65 65	73 75 80	4.2 4.2 6.8	GSW63734.2 GSW65754.2 GSW65806.8
67 70 70	77 80 82	4.2 4.2 6.8	GSW67774.2 GSW70804.2 GSW70856.8
75 75 80	85 90 90	4.2 6.8 4.2	GSW75854.2 GSW75906.8 GSW80904.2
80 85 90	75 100 105	6.8 6.8 6.8	GSW80956.8 GSW851006.8 GSW901056.8
95 100 106	110 115 121	6.8 6.8 6.8	GSW951106.8 GSW1001156.8 GSW1061216.8
110 115 120	125 130 135	6.8 6.8 6.8	GSW1101256.8 GSW1151306.8 GSW1201356.8
125 130 135	140 145 150	6.8 6.8 6.8	GSW1251406.8 GSW1301456.8 GSW1351506.8
140 145 150	155 160 165	6.8 6.8 6.8	GSW1401556.8 GSW1451606.8 GSW1501656.8
155 160 165	170 175 180	6.8 6.8 6.8	GSW1551706.8 GSW1601756.8 GSW1651806.8
170 175 180	185 190 200	6.8 6.8 8.1	GSW1701856.8 GSW1751906.8 GSW1802008.1

Installation Dimensions
