hydraulic rod seals nbrfkm rod DMS Seal Manufacturer Brand rod seals

Diameter Range:

3-1600mm

Pressure Range:

0-35MPa

Temperature Range:

-30℃+200℃

Speed:

1.5m/s

Medium:

general hydraulic oil, water glycol Hydraulic oil and water emulsion type hydraulic oil.

Inquiry

Company Advantages
1. Our products mainly include rod seals, piston seals, scraper seals, rotary seals, rubber seal products and spring seals. hydraulic rod seals piston rod seal offered by DMS Seal Manufacturer are used for hydraulic rod seals online.
2. The fame of DMS Seal Manufacturer is widely increasing for its high quality rod seals. We can support OEM and ODM
3. The design of hydraulic rod seals will surely accommodate your unique temperament and taste. The high pressure seals have strong wear resistance to hard conditions
4. Due to the application of rod seal catalogue, our O Ring Manufacturers enjoys a high reputation about its better performance. DMS O Ring Manufacturers strictly follows the ISO9001 international quality certification system for production management

Installation Recommendation

undefined

Application and properties

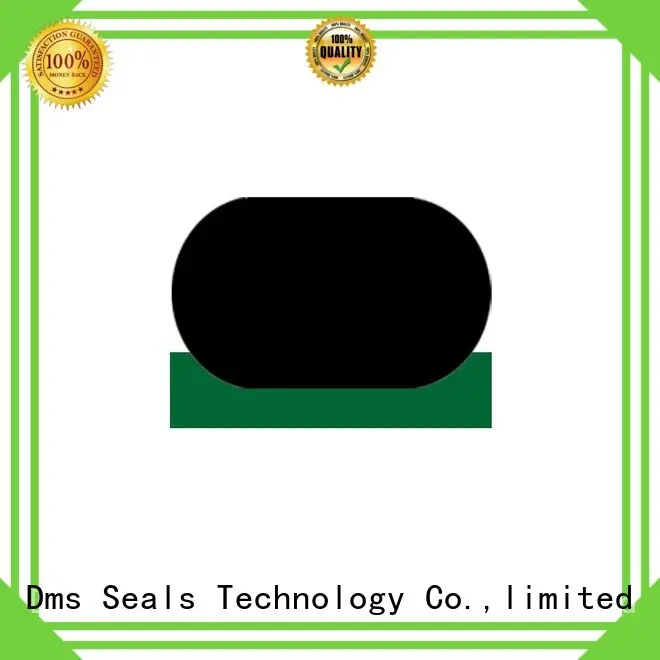

The standard combination seal is suitable for a wide range of pressure work and sliding high speed occasions. Low friction, strong wear resistance.

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-35MPa	-30℃+200℃	1.5 m/s	general hydraulic oil, water glycol Hydraulic oil and water emulsion type hydraulic oil.

Installation Dimensions

Nominal Size of Packing, and Housing dimensions				Order No.
d	D	H	L +0.2	Order No.
3 4 5	6 7 8	2.3 2.3 2.3	2.5 2.5 2.5	SPNC362.5 SPNC472.5 SPNC582.5
6 7 8	9 10 11	2.3 2.3 2.3	2.5 2.5 2.5	SPNC692.5 SPNC7102.5 SPNC8112.5
9 10 10	12 13 14	2.3 2.3 3.0	2.5 2.5 3.2	SPNC9122.5 SPNC10132.5 SPNC10143.2
11 11.2 12	15 15.2 16	3.0 3.0 3.0	3.2 3.2 3.2	SPNC11153.2 SPNC11.215.23.2 SPNC12163.2
12.5 14 15	16.5 18 19	3.0 3.0 3.0	3.2 3.2 3.2	SPNC12.516.53.2 SPNC14183.2 SPNC15193.2
16 18 20	20 22 24	3.0 3.0 3.0	3.2 3.2 3.2	SPNC16203.2 SPNC18223.2 SPNC20243.2
20 21 22	24 25 26	3.0 3.0 3.0	3.2 3.2 3.2	SPNC20243.2 SPNC21253.2 SPNC22263.2
22 22.4 24	28 28.4 30	4.4 4.4 4.4	4.7 4.7 4.7	SPNC22284.7 SPNC22.428.44.7 SPNC24304.7
25 25.5 26	31 31.5 32	4.4 4.4 4.4	4.7 4.7 4.7	SPNC25314.7 SPNC25.531.54.7 SPNC26324.7
28 29 29.5	34 35 35.5	4.4 4.4 4.4	4.7 4.7 4.7	SPNC28344.7 SPNC29354.7 SPNC29.535.54.7
30 31 31.5	36 37 37.5	4.4 4.4 4.4	4.7 4.7 4.7	SPNC30364.7 SPNC31374.7 SPNC31.537.54.7
32 34 35	38 40 41	4.4 4.4 4.4	4.7 4.7 4.7	SPNC32384.7 SPNC34404.7 SPNC35414.7
35.5 36 38	41.5 42 44	4.4 4.4 4.4	4.7 4.7 4.7	SPNC35.541.54.7 SPNC36424.7 SPNC38444.7

Installation Dimensions
