DMS SEALS TECHNOLOGY CO.,LIMITED

The Professional Sealing Solution Supplier(O Ring Suppliers & Oil Seal Manufacturers).

DMS Seals - Hydraulic Seals and Oil Ring Seals Manufacturer & Supplier

Mail to: sales@dmsseals.com tel:+86-757-86235767

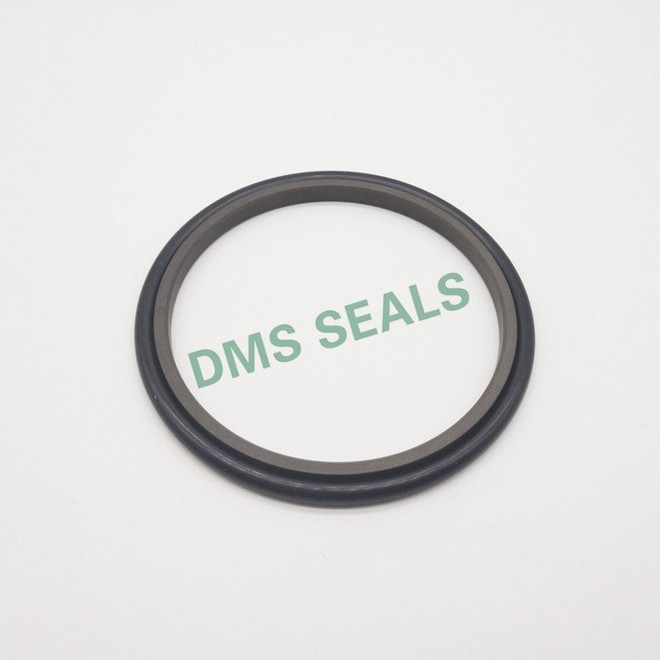

hydraulic rod seals ptfe oring Bulk Buy hydraulic DMS Seal Manufacturer 1

hydraulic rod seals ptfe oring Bulk Buy hydraulic DMS Seal Manufacturer 2

hydraulic rod seals ptfe oring Bulk Buy hydraulic DMS Seal Manufacturer

Diameter Range:

3-1600mm

Pressure Range:

0-60MPa

Temperature Range:

-45℃+200℃

Speed:

15 m/s

Medium:

hydraulic oil, flame retardant liquid, water, gas

Inquiry

Product Details

More detailed information about O-ring Seal is provided for you as follows.Dms Seals has a strict quality management system and multiple production lines. We guarantee the good product quality and high production efficiency, and can deliver high-quality O-ring Seal to customers in time.Dms Seals's O-ring Seal is manufactured in strict accordance with relevant national standards. Every detail matters in the production. Strict cost control promotes the production of high-quality and priced-low product. Such a product is up to customers' needs for a highly cost-effective product.

Enterprise Strength

Dms Seals has an independent R&D center and an experienced R&D and production team, which provides strong conditions for our development.
Dms Seals provides excellent services for customers on the premise of meeting customer demand.
Dms Seals's enterprise spirit is to stick to self-discipline and to be positive and aspirant, pragmatic and innovative. The business is focused on integrity, customers, and reputation. We are committed to providing quality products and comprehensive services.
Since the establishment in 2006, Dms Seals has been steadily developing for years. With the accumulated professional experience and keen grasp of market information, we have continuously introduced products that are more in line with market demand and has become a leader in the industry.
Dms Seals's O-ring Seal are not only sold well in the domestic market, but also exported to Southeast Asia, Africa, Europe and America, and other countries and regions.

Company Advantages
1. With its own professional development and design team, Dms Seals Technology Co.,limited has enough capability to produce rod seals based on the needs of customers. Seal we produced has applications in a wide range of fields
2. Its function is in perfect balance with the the quality and its service life. We have developed solutions of the sealing of special working condition
3. The quality of the product is guaranteed as we are a quality-oriented company. We can support OEM and ODM
4. Dms Seals Technology Co.,limited creates sales support for customers. The high pressure seals have strong wear resistance to hard conditions

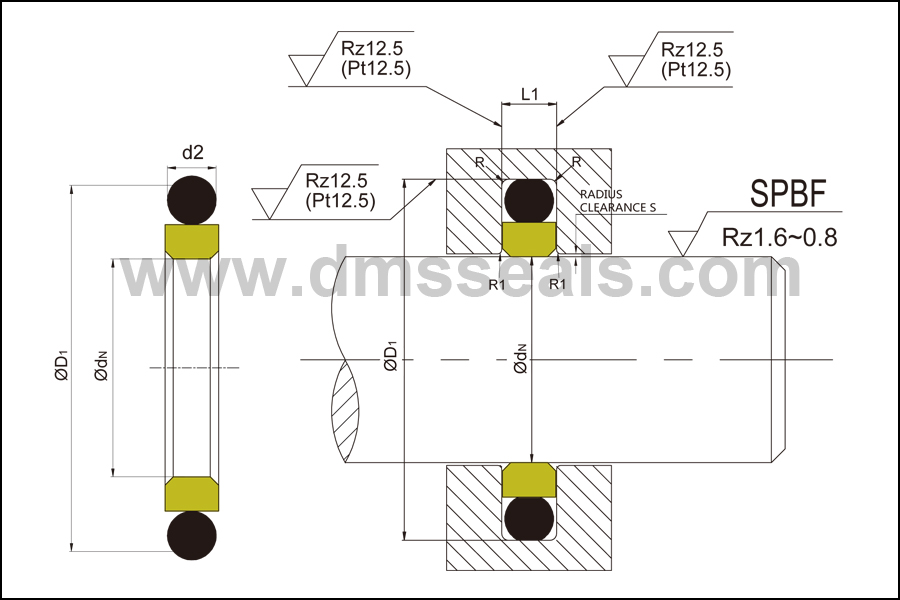

1. Installation Recommendation

2. Installation Sizes

Rod Diameter dN h9			Groove Diameter	Groove Width	Radius	Radial Clearance S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	D1 H9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
3-7.9	8-18.9	-	dN+4.9	2.2	0.4	0.3	0.20	0.15	1.78
8-18.9	19-37.9	-	dN+7.3	3.2	0.6	0.4	0.25	0.15	2.62
19-37.9	38-199.9	8-18.9	dN+10.7	4.2	1.0	0.4	0.25	0.20	3.53
38-199.9	200-255.9	19-37.9	dN+15.1	6.3	1.3	0.5	0.30	0.20	5.33
200-225.9	256-649.9	38-199.9	dN+20.5	8.1	1.8	0.6	0.35	0.25	7.00
256-649.9	650-999.9	200-255.9	dN+24.0	8.1	1.8	0.6	0.35	0.25	7.00
650-999.9	≥1000.0	256-649.9	dN+27.3	9.5	2.5	0.7	0.50	0.30	8.40
≥1000.0	-	650-999.9	dN+38.0	13.8	3.0	1.0	0.70	0.60	12.00

3. Application and properties

Applicable to high and low speed reciprocating motion environment, a wide range of fluids and high temperature condition. Suitable for larger gap of piston rod. Low friction, simple groove, be able to work in themedium with oil spots.

Meet the standard of GB/T 15242.3.

4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

5. Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water, gas

6. Installation Dimensions

Rod Dia.

Groove Dia.

Groove Width

Order No.

O-Ring Dimensions

D_N h9

D₁ H9

L₁+0.2

27.3

30.7

29.3

3.2

4.2

3.2

GSI20*27.3*3.2

GSI20*30.7*4.2

GSI22*29.3*3.2

21.89*2.62

25.0*3.53

25.07*2.62

32.7

31.3

32.3

4.2

3.2

GSI22*32.7*4.2

GSI24*31.3*3.2

GSI25*32.3*3.2

26.57*3.53

26.64*2.62

28.24*2.62

35.7

36.7

35.3

4.2

3.2

GSI25*35.7*4.2

GSI26*36.7*4.2

GSI28*35.3*3.2

29.74*3.53

29.82*2.62

38.7

37.3

40.7

4.2

3.2

4.2

GSI28*38.7*4.2

GSI30*37.3*3.2

GSI30*40.7*4.2

32.92*3.53

32.99*2.62

34.52*3.53

39.3

42.7

42.3

3.2

4.2

3.2

GSI32*39.3*3.2

GSI32*42.7*4.2

GSI35*42.3*3.2

34.59*2.62

36.09*3.53

37.77*2.62

45.7

43.3

46.7

4.2

3.2

4.2

GSI35*45.7*4.2

GSI36*43.3*3.2

GSI36*46.7*4.2

37.69*3.53

39.34*2.62

40.87*3.53

48.7

53.1

50.7

4.2

6.3

4.2

GSI38*48.7*4.2

GSI38*53.1*6.3

GSI40*50.7*4.2

40.87*3.53

43.82*5.33

44.04*3.53

Company Features
1. The reputation of the DMS Seal Manufacturer brand has risen rapidly in other similar rod seals areas.
2. The products in Dms Seals Technology Co.,limited have been authenticated by National new technology and new production..
3. We have high quality requirements for hydraulic rod seals.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
