hydraulic seal nbrfkm DMS Seal Manufacturer Brand rod seals
1. Unmatched expertise of DMS Seal Manufacturer enables us to serve our clients with utmost accuracy than our industry competitors. High-end talents and advanced technology have enabled DMS o-ring seal quality to reach the industry's leading level
2. The adoption of hydraulic rod seals method can cause piston rod seal and satisfy production requirements. Seal we produced has applications in a wide range of fields
3. hydraulic rod seals online has no pollution to environment which is more eco-friendly. Our products mainly include rod seals, piston seals, scraper seals, rotary seals, rubber seal products and spring seals
d e8 | D H9 | L D10 | H | Ø - range | e |
22-39 | d+7.2 | 4.0 | 3.5 | 20-56 | 6 |
40-79 | d+10.0 | 5.0 | 4.5 | 60-100 | 7 |
80-100 | d+13.8 | 7.5 | 7.0 | 105-290 | 10 |
＞100-250 | d+20.0 | 10.0 | 9.5 | 300-630 | 15 |
＞250-600 | d+30.0 | 15.0 | 14.5 | ||
＞600 | d+40.0 | 20.0 | 19.5 |
Application and properties

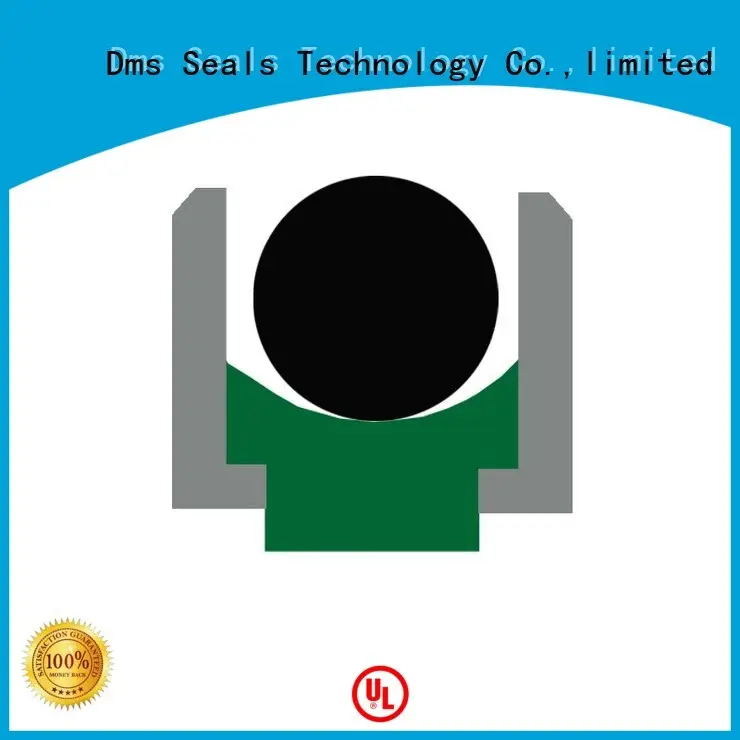

L-Ring support and guide to ensure a tight sealing environment. Easy installation, wear resistance, anti extrusion, low friction, non stick slip phenomenon.
Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
L-Ring: POM / PA
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-45MPa | -30℃+100℃ | 1 m/s | hydraulic oil, flame retardant liquid, water, gas |
d e8 | D1 H9 | H | L D10 | e | Order No. |
22 | 29.2 | 3.5 | 4 | 6 | RDI22*29.2*3.5 |
30 | 37.2 | 3.5 | 4 | 6 | RDI30*37.2*3.5 |
36 | 43.2 | 3.5 | 4 | 6 | RDI36*43.2*3.5 |
45 | 55 | 4.5 | 5 | 6 | RDI45*55*4.5 |
56 | 66 | 4.5 | 5 | 6 | RDI56*66*4.5 |
65 | 75 | 4.5 | 7.5 | 7 | RDI65*75*4.5 |
75 | 85 | 4.5 | 7.5 | 7 | RDI75*85*4.5 |
90 | 103.8 | 7.0 | 7.5 | 7 | RDI90*103.8*7.0 |
Company Features
1. The rod seals Which Meet People's Requirements In Pursuit Of Good Taste Life. Choose From DMS Seal Manufacturer Website, You Will Never Be Disappointed. - Dms Seals Technology Co.,limited owns manufacturing facilities.
2. Dms Seals Technology Co.,limited has complete test measures and high-qualified employees.
3. There is strict testing for quality of hydraulic rod seals to make satisfying products for customers. - Dms Seals Technology Co.,limited make every effort to have hydraulic rod seals in this O Ring Manufacturers. Inquire now!
