hydraulic wiper seals scraper oring scraper seals manufacture 1

hydraulic wiper seals scraper oring scraper seals manufacture 2

hydraulic wiper seals scraper oring scraper seals manufacture

Diameter Range:

3-1600mm

Temperature Range:

-30℃+200℃

Speed:

5m/s

Medium:

hydraulic oil, flame retardant liquid, water and others

Inquiry

Company Advantages
1. We can support OEM and ODM. DMS Seal Manufacturer material for hydraulic wiper seals is different from other companies' material and it's better.
2. DMS Seals implements and optimizes its quality control systems. DMS Seal Manufacturer will promote innovation work, and strive to develop more, newer and better products.
3. Dms Seals Technology Co.,limited's scraper seals is efficient in wiper seal design owing to the adoption of metric wiper seal. To reduce costs with high-efficiency work is the DMS's purpose.
4. The products are widely praised among customers for its hydraulic wiper seals. DMS Seal manufacturer is a technology enterprise which specialized in the R&D and production of seals
5. Easy to install and operate, our range of rod wiper seals offers high functionality at fast speed. DMS Seals manufacturer owns a team of professional R&D group and skilled technicians.

Installation Recommendation

undefined

Installation Sizes

Rod Diameter d f8/h9		Groove Diameter	Groove Width	Step Diameter	Radius	Step Width
Standard Application	Suitable Application	D H9	L1+0.2	D1±0.1	R	a
140.0-229.9	100.0-450.0	d+22.2	6.3	d+10.7	1.2	4.2
230.0-299.9	220.0-450.0	d+24.2	6.3	d+10.7	1.2	4.2
300.0-629.9	250.0-650.0	d+33.0	8.1	d+15.1	1.2	6.3
630.0-999.9	550.0-999.9	d+36.5	9.5	d+15.1	2.0	6.3

Application and properties

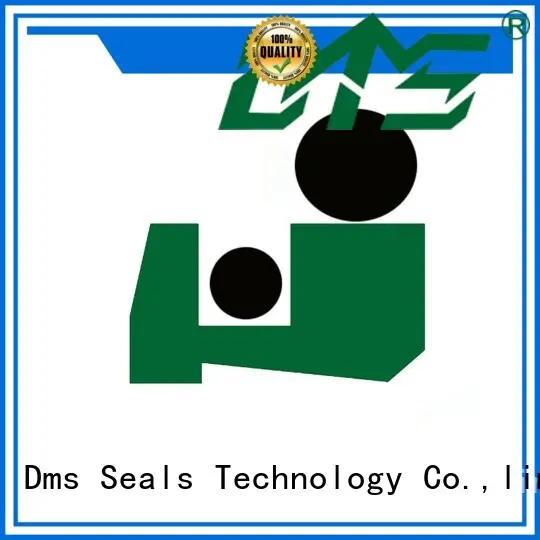

Applicable to agricultural hydraulic press, injection molding machine, metallurgical equipment, etc. Consisting of a sealing ring and two O-Rings as preload element, good dust scraping effect, low friction, no stick slip phenomenon, good ability of adjustment and positioning, especially for large diameter piston rods.

Standard materials

Sealing ring: filled PTFE / PU

O-Ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm		-30℃+200℃	5 m/s	hydraulic oil, flame retardant liquid, water and others

Installation Dimensions

d f8	D H9	H	L1+0.2	L1	Order No.
100 110 120	122.2 132.2 142.2	13.5 13.5 13.5	6.3 6.3 6.3	4.2 4.2 4.2	DPT2-100122.26.3 DPT2-110132.26.3 DPT2-120142.26.3
130 140 150	152.2 162.2 172.2	13.5 13.5 13.5	6.3 6.3 6.3	4.2 4.2 4.2	DPT2-130152.26.3 DPT2-140162.26.3 DPT2-150172.26.3
160 170 180	182.2 192.2 202.2	13.5 13.5 13.5	6.3 6.3 6.3	4.2 4.2 4.2	DPT2-160182.26.3 DPT2-170192.26.3 DPT2-180202.26.3
190 200 210	212.2 222.2 232.2	13.5 13.5 13.5	6.3 6.3 6.3	4.2 4.2 4.2	DPT2-190212.26.3 DPT2-200222.26.3 DPT2-210232.26.3
220 230 240	242.2 252.2 262.2	13.5 13.5 13.5	6.3 6.3 6.3	4.2 4.2 4.2	DPT2-220242.26.3 DPT2-230252.26.3 DPT2-240262.26.3
250 260 270	272.2 282.2 292.2	13.5 13.5 13.5	6.3 6.3 6.3	4.2 4.2 4.2	DPT2-250272.26.3 DPT2-260282.26.3 DPT2-270292.26.3
275 280 290	297.2 302.2 312.2	13.5 13.5 13.5	6.3 6.3 6.3	4.2 4.2 4.2	DPT2-275297.26.3 DPT2-280302.26.3 DPT2-290312.26.3
295 300 320	317.2 333 353	13.5 18.4 18.4	6.3 8.1 8.1	4.2 6.3 6.3	DPT2-295317.26.3 DPT2-3003338.1 DPT2-3203538.1
340 350 360	373 383 393	18.4 18.4 18.4	8.1 8.1 8.1	6.3 6.3 6.3	DPT2-3403738.1 DPT2-3503838.1 DPT2-3603938.1

Installation Dimensions

Company Features
1. Equipped with a complete set of quality control technology, scraper seals can be guaranteed with good quality.
2. DMS Seal Manufacturer's devotion is to offer the most professional customer service which ranks top in hydraulic wiper seals industry. Get price!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
