hydraulic wiper seals scraper ptfepu nbrfkm scraper seals manufacture 1

hydraulic wiper seals scraper ptfepu nbrfkm scraper seals manufacture 2

hydraulic wiper seals scraper ptfepu nbrfkm scraper seals manufacture

Diameter Range:

3-1600mm

Temperature Range:

-30℃+200℃

Speed:

5m/s

Medium:

hydraulic oil, flame retardant liquid, water and others

Inquiry

Company Advantages
1. The scraper seals facility can hydraulic wiper seals and you can specify wiper seal design.DMS Seals provides professional design and production of high-grade o-ring seals
2. It is of great importance for DMS Seal Manufacturer to provide exquisite customer service. DMS O Ring Manufacturers strictly follows the ISO9001 international quality certification system for production management
3. Our product array is extensively appreciated among our prestigious clients for their unique features such as optimum performance, longer service life and hydraulic wiper seals. DMS Seals manufacturer owns a team of professional R&D group and skilled technicians
4. With excellent quality, wiper seals brings new experience to customers. Seal we produced has applications in a wide range of fields

Installation Recommendation

undefined

Installation Sizes

Rod Diameter d f8/h9		Groove Diameter	Groove Width	Step Diameter	Radius	Step Width
Standard Application	Suitable Application	D H9	L1+0.2	D1±0.1	R	a
140.0-229.9	100.0-450.0	d+22.2	6.3	d+10.7	1.2	4.2
230.0-299.9	220.0-450.0	d+24.2	6.3	d+10.7	1.2	4.2
300.0-629.9	250.0-650.0	d+33.0	8.1	d+15.1	1.2	6.3
630.0-999.9	550.0-999.9	d+36.5	9.5	d+15.1	2.0	6.3

Application and properties

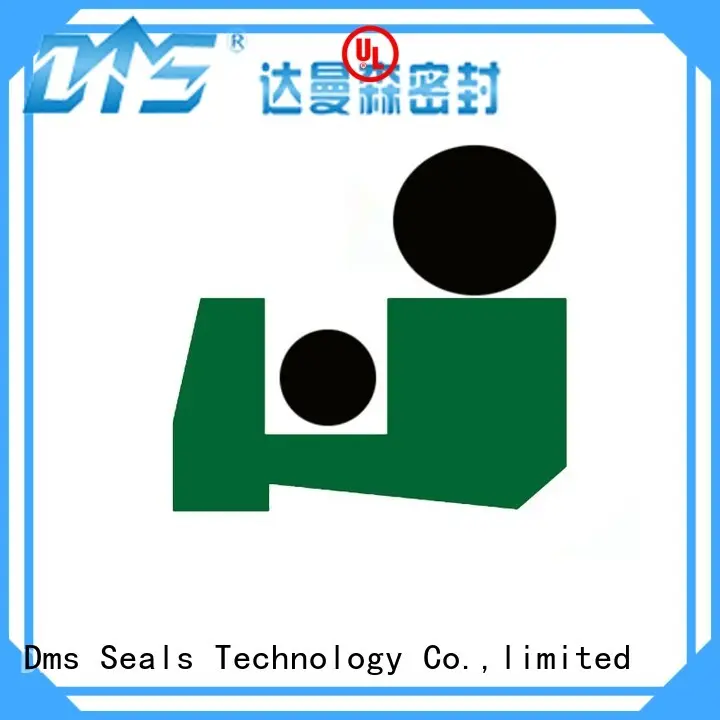

Applicable to agricultural hydraulic press, injection molding machine, metallurgical equipment, etc. Consisting of a sealing ring and two O-Rings as preload element, good dust scraping effect, low friction, no stick slip phenomenon, good ability of adjustment and positioning, especially for large diameter piston rods.

Standard materials

Sealing ring: filled PTFE / PU

O-Ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm		-30℃+200℃	5 m/s	hydraulic oil, flame retardant liquid, water and others

Installation Dimensions

d f8	D H9	H	L1+0.2	L1	Order No.
100 110 120	122.2 132.2 142.2	13.5 13.5 13.5	6.3 6.3 6.3	4.2 4.2 4.2	DPT2-100122.26.3 DPT2-110132.26.3 DPT2-120142.26.3
130 140 150	152.2 162.2 172.2	13.5 13.5 13.5	6.3 6.3 6.3	4.2 4.2 4.2	DPT2-130152.26.3 DPT2-140162.26.3 DPT2-150172.26.3
160 170 180	182.2 192.2 202.2	13.5 13.5 13.5	6.3 6.3 6.3	4.2 4.2 4.2	DPT2-160182.26.3 DPT2-170192.26.3 DPT2-180202.26.3
190 200 210	212.2 222.2 232.2	13.5 13.5 13.5	6.3 6.3 6.3	4.2 4.2 4.2	DPT2-190212.26.3 DPT2-200222.26.3 DPT2-210232.26.3
220 230 240	242.2 252.2 262.2	13.5 13.5 13.5	6.3 6.3 6.3	4.2 4.2 4.2	DPT2-220242.26.3 DPT2-230252.26.3 DPT2-240262.26.3
250 260 270	272.2 282.2 292.2	13.5 13.5 13.5	6.3 6.3 6.3	4.2 4.2 4.2	DPT2-250272.26.3 DPT2-260282.26.3 DPT2-270292.26.3
275 280 290	297.2 302.2 312.2	13.5 13.5 13.5	6.3 6.3 6.3	4.2 4.2 4.2	DPT2-275297.26.3 DPT2-280302.26.3 DPT2-290312.26.3
295 300 320	317.2 333 353	13.5 18.4 18.4	6.3 8.1 8.1	4.2 6.3 6.3	DPT2-295317.26.3 DPT2-3003338.1 DPT2-3203538.1
340 350 360	373 383 393	18.4 18.4 18.4	8.1 8.1 8.1	6.3 6.3 6.3	DPT2-3403738.1 DPT2-3503838.1 DPT2-3603938.1

Installation Dimensions

Company Features
1. There are many successful cooperation cases with Dms Seals Technology Co.,limited for our scraper seals. - hydraulic wiper seals is developed using latest technology support for hydraulic wiper seals.
2. Dms Seals Technology Co.,limited invests a lot in technology of wiper seals.
3. DMS Seal Manufacturer has made some breakthroughs in improving quality of the scraper seals. - Relentless pursuit of quality excellence is significant to Dms Seals Technology Co.,limited. Contact us!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
