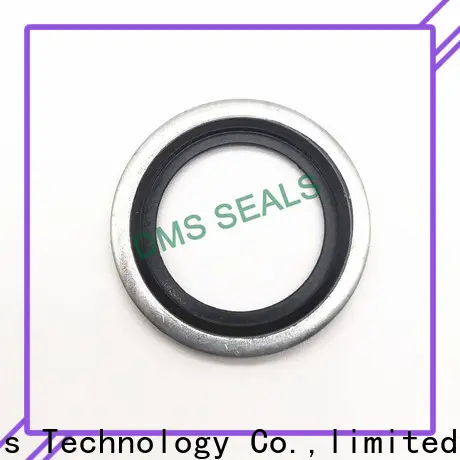

Latest bonded sealing washers stainless steel company for fast and automatic installation

Company Advantages
1. The production of DMS Seals bonded sealing washers stainless steel complies with international manufacturing standards. Thus, the use of toxic bleaches, dyes, and other chemicals is limited.
2. DMS Seals is carefully designed by considering many factors. For example, part tolerances, size limitations, materials performance, and operational efficiency factors have been taken into considerations.
3. DMS Seals is strictly scrutinized and tested. It is required to test in terms of its cutting, stamping, extrusion, anodizing, and polishing quality and overall mechanical properties.
4. The manufacture of DMS Seals generally includes the following stages. They are mainly CAD/CAM design, procurement of raw materials, fabrication, welding, spraying, commissioning, and measurement.
5. bonded sealing washers stainless steel featured when compared with other similar products.
6. We can guarantee quality for our bonded sealing washers stainless steel .
7. bonded sealing washers stainless steel has a broad vision of application considering its features.
8. Dms Seals Technology Co.,limited combines professional experience, advanced technology and worldwide network.
9. DMS Seals possesses whole distributing net and supplying resource.
10. Serving customers well is a motive for DMS Seals to keep competitive.
11. Dms Seals Technology Co.,limited has set up professional departments such as scientific research and development, production management, and sales services.

1. Applicability

The BS/A bonded seals (automatic core-positioning) are applicable to threaded pipe fittings and plug sealing in Metric System, the Britain System and BSP. The location processing of sealing groove is not specially required, so it is ideal fittings for fast and automatic installation. Its service temperature is -30℃~100℃, working pressure less than 39.2MPa.

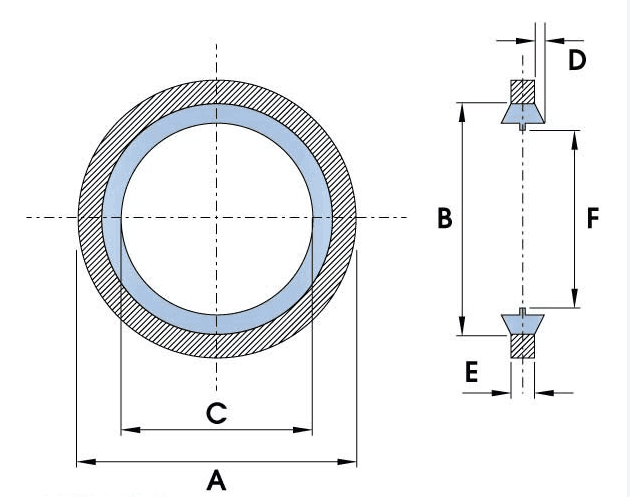

2. Figure

2. GM500 Self-centering range metric dimensions

Metric Thread size	Inside Diameter	Outside Diameter	Metal thickness	Metal washer ID	ID between self centering
	C	A	E	B	F
PPM6	6,50	10,00	1,00	8,00	5,60
PPM8	8,5	14,00	1,00	10,40	6,40
PPM10	10,50	16,00	2,00	12,40	8,05
PPM12	12,50	18,00	1,50	14,10	9,73
PPM14	14,5	20,00	2,00	16,40	11,38
PPM16	16,5	22,00	2,00	18,40	13,41
PPM18	18,5	25,00	2,00	20,40	14,76
PPM20	20,5	28,00	2,00	22,50	16,76
PPM22	22,5	30,00	2,00	24,40	18,74
PPM24	24,5	32,00	2,00	26,40	20,11
PPM27	27,2	35,00	2,00	29,40	23,30
PPM30	30,7	38,00	2,00	32,40	25,70
PPM33	33,5	42,00	2,00	35,40	28,70
PPM36	36.7	46,00	2,00	38,70	31.1
PPM39	41.9	51,00	2,00	40,00	34.1
PPM42	42.7	53,00	2,00	45,70	38.7
PPM48	48.7	60,00	2,00	51,70	43.7
PPM52	52.9	66,00	2,00	56,40	46
PPM60	60.9	75,00	2,00	63,00	-

3. GM500 Self-centering range inch dimensions, BSP

BSP thread size	Inside Diameter	Outside Diameter	Metal thickness	Metal washer ID	ID between self centering
	C	A	E	B	F
1/8 BSP	10,37	15,88	2,00	11,84	8,26
1/4 BSP	13,74	20,57	2,00	15,21	11,18
3/8 BSP	17,28	23,80	2,00	18,75	14,76
1/2 BSP	21,54	28,58	2,50	23,01	18,24
3/4 BSP	27,05	34,93	2,50	28,53	23,83
1 BSP	33,89	42,80	3,20	36,88	29,92
1 1/4 BSP	42,93	52,38	3,20	45,93	38,45
1 1/2 BSP	48,44	58,60	3,20	51,39	44,45
2 BSP	60,58	73,03	3,20	63,63	56,26



Company Features
1. Focusing on the evolution and creation of bonded sealing washers stainless steel , Dms Seals Technology Co.,limited is known in this industry. Dms Seals Technology Co.,limited is well equipped to manufacture quality copper o ring seals . Dms Seals Technology Co.,limited is one of the top domestic and international producers in China.
2. We put great emphasis on technology of steel rubber seals . Our high-technology pamargan bonded seals is the best. Quality speaks louder than number in Dms Seals Technology Co.,limited. We adopt world-advanced technology when manufacturing bonded seals catalogue . We expect no complaints of molded seals from our customers.
3. We want to have satisfied customers who trust our products for a long time. We know that the image and the name of a brand acquire the real value only at the moment when good work can be seen behind them. Welcome to visit our factory! We insist on the principle of quality creating value. We will continue to use high-quality materials and sophisticated workmanship, and we will never hesitate to improve product quality to a higher level. Welcome to visit our factory! Above and beyond the product needs, we strive to establish global logistics and support network to continuously deliver the extra services customers require to make their projects a success. Welcome to visit our factory!

Latest bonded sealing washers stainless steel company for fast and automatic installation

bonded sealing washers stainless steel

Type:
