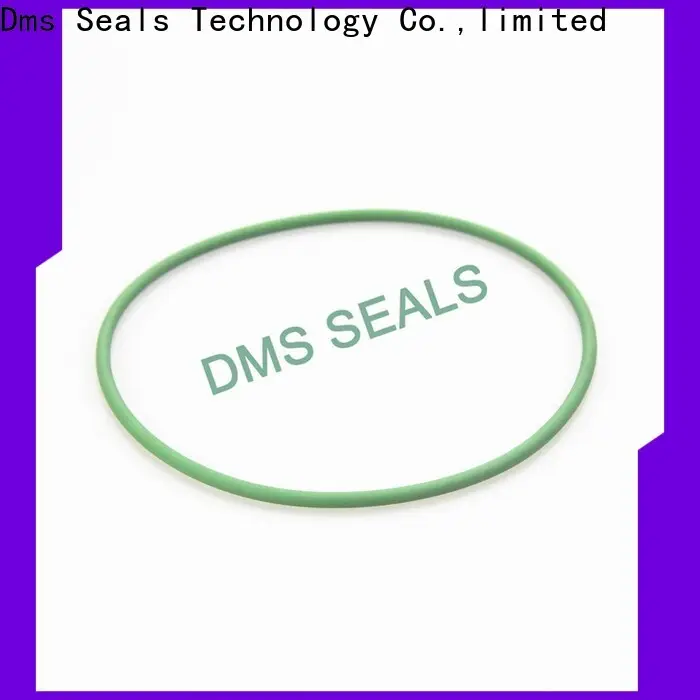

Latest clear rubber ring for business in highly aggressive chemical processing

Company Advantages
1. The appealing design of DMS Seal Manufacturer comes from talented design team.
2. Superior and efficient performance of our clear rubber ring shows its an ideal choice for you.
3. The raw material used for DMS Seal Manufacturer is of the best grade available in the market.
4. The clear rubber ring structure adopts humanized design, thus it is .
5. Owing to its , clear rubber ring starts to occupy bigger market.
6. is widely used in clear rubber ring field because of its fine properties.
7. Our exquisitely-made clear rubber ring is of and .
8. DMS Seal Manufacturer has acquired the certifications of clear rubber ring , and provides one-stop solution with quality inspection.
9. Dms Seals Technology Co.,limited has years of experience in manufacturing clear rubber ring .
10. I's ok that sample first for testing before you place order for clear rubber ring .

1. Installation Recommendation

2. Application and properties

Double acting seals, the sealing effect is achieved by the deformation of the section of the O-Rings, and the deformation is determined by the depth of the installation groove. Under pressure, the O-ring has a large surface tension like liquid, used for static sealing more. It is only recommended for better conditions in dynamic applications. System lubrication, pressure, temperature, sealing clearance, speed, medium and surface quality of metal parts determine the service life of O-Rings. It is not recommended if the lubrication is not sufficient during rotary motion.

3. Standard materials

NBR / FKM

4. Performance parameter

	Static Seal	Dynamic Seal
Working Pressure	No support ring, up to 20MPa; With the support ring, up to 40MPa; With special support ring, up to 200MPa.	No support ring, up to 5MPa; With the support ring, higher pressure.
Movement Speed	Maximum reciprocating speed up to 0.5m / s; maximum rotation speed up to 2.0m/s.
Temperature	NBR: -30℃ - 100℃;  FKM: -20℃ - 220℃.

5. Wire Diameter Tolerance

Wire diameter of O-Ring (mm)	Tolerance (±mm)
0-1.8	0.08
1.80-2.65	0.09
2.65-3.55	0.10
3.55-5.30	0.13
5.30-7.00	0.15
7.00-8.00	0.18
8.00-10.00	0.21
10.00-12.00	0.25



6. Inner diameter tolerance

Inner Diameter d1 mm	Tolerance ±mm	Inner Diameter d1 mm	Tolerance ±mm	Inner Diameter d1 mm	Tolerance ±mm
0.70-2.50 2.50-4.50 4.50-6.30	0.13 0.14 0.15	43.70-45.00 46.00-46.20 46.20-47.50	0.42 0.43 0.44	95.00-97.50 97.50-100.00 100.00-103.00	0.83 0.84 0.87
6.30-8.50 8.50-10.00 10.00-11.20	0.16 0.17 0.18	47.50-48.70 48.70-50.00 50.00-51.50	0.45 0.46 0.47	103.00-106.00 106.00-109.00 109.00-112.00	0.89 0.91 0.93
11.20-14.00 14.00-16.00 16.00-18.00	0.19 0.20 0.21	51.50-53.00 53.00-54.50 54.50-56.00	0.48 0.50 0.51	112.00-115.00 115.00-118.00 118.00-122.00	0.95 0.97 1.00
18.00-20.00 20.00-21.20 21.20-23.60	0.22 0.23 0.24	56.00-58.00 58.00-60.00 60.00-61.50	0.52 0.54 0.55	122.00-125.00 125.00-128.00 128.00-132.00	1.03 1.05 1.08
23.60-25.00 25.00-26.50 26.50-28.00	0.25 0.26 0.28	61.50-63.00 63.00-65.00 65.00-67.00	0.56 0.58 0.59	132.00-136.00 136.00-140.00 140.00-145-00	1.10 1.13 1.17
28.00-30.00 30.00-31.50 31.50-33.50	0.29 0.31 0.32	67.00-69.00 69.00-71.00 71.00-73.00	0.61 0.63 0.64	145.00-150.00 150.00-155.00 155.00-160.00	1.20 1.24 1.27
33.50-34.50 34.50-35.50 35.50-36.50	0.33 0.34 0.35	73.00-75.00 75.00-77.50 77.50-80.00	0.66 0.67 0.69	160.00-165.00 165.00-170.00 170.00-175.00	1.31 1.34 1.38
36.50-37.50 37.50-38.70 38.70-40.00	0.36 0.37 0.38	80.00-82.50 82.50-85.00 85.00-87.50	0.71 0.73 0.75	175.00-180.00 180.00-185.00 185.00-190.00	1.41 1.44 1.48
40.00-41.20 41.20-42.50 42.50-43.70	0.39 0.40 0.41	87.50-90.00 90.00-92.50 92.50-95.00	0.77 0.79 0.81	190.00-195.00 195.00-200.00 200.00-206.00	1.51 1.55 1.59
206.00-212.00 212.00-218.00 224.00-230.00	1.63 1.71 1.75	325.00-335.00 335.00-345.00 345.00-355.00	2.43 2.49 2.56	500.00-515.00 515.00-530.00 530.00-545.00	3.54 3.63 3.72
230.00-236.00 236.00-243.00 243.00-250.00	1.79 1.83 1.88	355.00-365.00 365.00-375.00 375.00-387.00	2.62 2.68 2.76	545.00-560.00 560.00-580.00 580.00-600.00	3.81 3.93 4.05
250.00-258.00 258.00-265.00 265.00-272.00	1.93 1.98 2.02	387.00-400.00 400.00-412.00 412.00-425.00	2.84 2.91 2.99	600.00-615.00 615.00-630.00 630.00-650.00	4.13 4.22 4.34
272.00-280.00 280.00-290.00 290.00-300.00	2.08 2.14 2.21	425.00-437.00 437.00-450.00 450.00-462.00	3.07 3.15 3.22	650.00-670.00	4.46
300.00-307.00 307.00-315.00 315.00-325.00	2.25 2.30 2.37	462.00-475.00 475.00-485.00 485.00-500.00	3.30 3.37 3.45

Company Features
1. DMS Seal Manufacturer takes its precedence in offering first-rate clear rubber ring . Dedicated to silicone ring manufacturers industry, Dms Seals Technology Co.,limited has rich manufacturing experience. Dms Seals Technology Co.,limited is specialized in research, production and sales of 55mm o ring . Integrating R&D, sales and service of coloured rubber o rings , DMS Seal Manufacturer is proud to be a leading supplier in o ring 21 industry.
2. DMS Seal Manufacturer has made some breakthroughs in extending the life of o ring price list . DMS Seal Manufacturer is experienced and ensures the excellent performance of o ring 1.5 . With a full set of quality control system, DMS Seal Manufacturer can meet the needs of different customers. By developing new technical methods, DMS Seal Manufacturer manufacturing 19mm o ring becomes a more competitive product. DMS Seal Manufacturer invested a lot of money in our technology introduction.
3. We work hard to minimize our footprint by using thoughtful production processes and controls, as well as designing and supplying products that encourage environmental best practices. We embrace social responsibility in our products, the way we conduct our business, and in our relations with customers, employees, vendors, shareholders, and communities. We put efforts to develop higher customer satisfaction. We will actively listen to customers through diverse channels and applying their opinions to product development, product quality & service improvement. We will become representative of the industry's innovation and creation. We will invest more in cultivating our R&D team, continuously promote technological innovation, and learn from other strong competitors to enhance ourselves.

Latest clear rubber ring for business in highly aggressive chemical processing
