Latest hyd cylinder seal kit manufacturers to high and low speed

Company Advantages
1. Monitored production process: the production process of DMS Seal Manufacturer is strictly and constantly monitored. A 24 hours shift system is carried out to ensure high-efficiency production.
2. High-performance raw materials make DMS Seal Manufacturer hyd cylinder seal kit be the perfect one.
3. DMS Seal Manufacturer is manufactured in compliance with the industry standards using premium raw materials.
4. Only whoever uses the best raw materials for his products can also manufacture first-class .
5. Each DMS Seal Manufacturer is highly designed and matched by our workers.
6. The product can stand up strong disinfectants. Its specially coated metal materials make it effectively withstand disinfection environments.
7. This product will not be prone to accumulate odors. Its natural and organic coating helps inhibit bacterial growth on the foot, which keeps odors at bay.
8. The product does not retain odor. The breathable perforated design allows airflow and can effectively avoid produce of any smell.
9. Not only is the high comfort level useful for those who regularly experience night insomnia, but the hypoallergenic characteristics and antimicrobial properties are truly ideal for anyone.
10. The product's energy efficiency helps reduce the use of energy amount, which also directly influences the costs paid on production.
11. The fabric of this product is free of toxic chemicals that might be inhaled during sleep or might cause the skin irritated.
12. This product creates the first impression of the goods. As the first point of contact, it will leave an unforgettable unboxing experience.

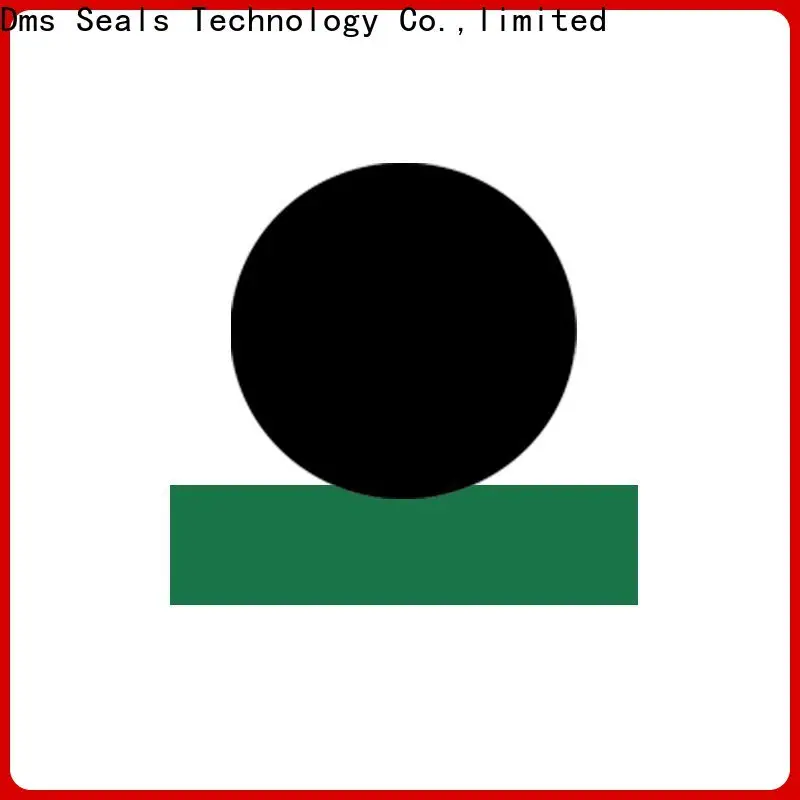

1. Installation Recommendation

2. Application and properties

Applicable to a wide range of pressure work and sliding high speed occasions. Standard combined seal. Low friction, strong wear resistance.

3. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM





4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 35MPa	-30℃ + 200℃	1.5m/s	general hydraulic oil, water glycol hydraulic oil, oil / water emulsion type hydraulic oil.

5. Installation Dimensions

Nominal Size of Packing, and Housing dimensions				Order No.
d	D	H	L +0.2
12 14 16	18 20 22	3.0 3.0 3.0	3.2 3.2 3.2	SPNO12*18*3.2 SPNO14*20*3.2 SPNO16*22*3.2
18 20 22	24 26 31	3.0 3.0 3.8	3.2 3.2 4	SPNO18*24*3.2 SPNO20*26*3.2 SPNO22*31*4
25 28 30	34 37 39	3.8 3.8 3.8	4 4 4	SPNO25*34*4 SPNO28*37*4 SPNO30*39*4
32 36 40	41 45 49	3.8 3.8 3.8	4 4 4	SPNO32*41*4 SPNO36*45*4 SPNO40*49*4
45 50 56	54 65 71	3.8 6.3 6.3	4 6.5 6.5	SPNO45*54*4 SPNO50*65*6.5 SPNO56*71*6.5
60 63 70	75 78 85	6.3 6.3 6.3	6.5 6.5 6.5	SPNO60*75*6.5 SPNO63*78*6.5 SPNO70*85*6.5
75 80 85	90 95 100	6.3 6.3 6.3	6.5 6.5 6.5	SPNO75*90*6.5 SPNO80*95*6.5 SPNO85*100*6.5
90 95 100	105 110 115	6.3 6.3 6.3	6.5 6.5 6.5	SPNO90*105*6.5 SPNO95*110*6.5 SPNO100*115*6.5
105 110 115	120 125 130	6.3 6.3 6.3	6.5 6.5 6.5	SPNO105*120*6.5 SPNO110*125*6.5 SPNO115*130*6.5
120 125 130	135 140 145	6.3 6.3 6.3	6.5 6.5 6.5	SPNO120*135*6.5 SPNO125*140*6.5 SPNO130*145*6.5
135 140 145	150 155 160	6.3 6.3 6.3	6.5 6.5 6.5	SPNO135*150*6.5 SPNO140*155*6.5 SPNO145*160*6.5
150 160 170	170 180 190	9.8 9.8 9.8	10 10 10	SPNO150*170*10 SPNO160*180*10 SPNO170*190*10

Company Features
1. Dms Seals Technology Co.,limited has operated hyd cylinder seal kit business for years. Dms Seals Technology Co.,limited has created a number of firsts in the Chinese buy hydraulic seals industry. We export our pneumatic rubber seals to many countries, including and etc. Dms Seals Technology Co.,limited is one of the most dynamic piston oil seal industry groups in China. Dms Seals Technology Co.,limited produces hydraulic cylinder seal kits at production sites in China.
2. Our company has excellent employees. They are knowledgeable and skilled in their respective areas of expertise. The factory has established a rigorous quality management and monitoring system. This system is laid down under the scientific concept. We have enabled the products' quality to be improved in a significant way under the guidance of this system. Our products have been sold to many industries in recent years, and the application of our product is expanding significantly. We have a powerful direct sales force. They help us to keep good communication lines open with customers to collect information and to receive feedback that is helpful to our marketing. We are proud that most of our products go global every year. We have built long-term trade relationships with clients from various countries, such as the United States, Britain, Germany, Australia, Japan, etc.
3. DMS Seal Manufacturer believes it is essential for DMS Seal Manufacturer to implement the plan of being a modern hydraulic pump seals suppliers supplier. Welcome to visit our factory! In this competitive society, DMS Seal Manufacturer needs to keep innovating to be more competitive. Welcome to visit our factory! Dms Seals Technology Co.,limited has always been focused on the professional production of polyurethane hydraulic seals . Welcome to visit our factory!

Latest hyd cylinder seal kit manufacturers to high and low speed

hyd cylinder seal kit

Type:
