Latest hydraulic cylinder piston rings supplier for pneumatic equipment
1. With the aid of our diligent staff, our hydraulic cylinder piston rings has attracted more and more customers.
2. We have been working to replace hazardous substances in DMS Seals hydraulic cylinder piston rings .
3. DMS Seals hydraulic cylinder piston rings is manufactured under the visionary guidance of trained professionals.
4. In order to be more competitive, our hydraulic cylinder piston rings are all designed to be unique.
5. The product is of high quality and meets industry quality standards.
6. The product has stable performance and long storage time.
7. Strict internal quality control system to ensure that products meet international standards.
8. The product complies with international quality standard and can stand any strict quality and performance test.
9. One of the experimenters says, "Every time I crawl into bed, I am surprised at how cool and comfortable it is. It truly is the perfect addition to my bed."
10. This product is an important marketing tool. It can help companies that use it to attract new customers and retain existing ones.
11. For those prone to skin allergies, this product will definitely protect them from fungus and itching.
12. This product will definitely help promote a brand to the public. With this product, one can create an awareness of the brand to new potential customers, which will bring about an increased sale.
Bore Diameter DN H9 | Groove Diameter | Groove Width | Radius | Radial Clearance S max. | O-Ring Cross-Section | ||||
Standard Application | Light Application | Heavy Duty Application | d1 h9 | L1+0.2 | R1 | 10MPa | 20MPa | 40MPa | d2 |
8-16.9 | 17-26.9 | -- | DN-4.9 | 2.2 | 0.4 | 0.30 | 0.20 | 0.15 | 1.78 |
17-26.9 | 27-59.9 | -- | DN-7.3 | 3.2 | 0.6 | 0.40 | 0.25 | 0.15 | 2.62 |
27-59.9 | 60-199.9 | 17-26.9 | DN-10.7 | 4.2 | 1.0 | 0.50 | 0.30 | 0.20 | 3.53 |
60-199.9 | 200-255.9 | 27-59.9 | DN-15.1 | 6.3 | 1.3 | 0.70 | 0.40 | 0.25 | 5.33 |
200-255.9 | 256-669.9 | 60-199.9 | DN-20.5 | 8.1 | 1.8 | 0.80 | 0.60 | 0.35 | 7.00 |
256-669.9 | 670-999.9 | 200-669.9 | DN-24.0 | 8.1 | 1.8 | 0.90 | 0.70 | 0.40 | 7.00 |
670-999.9 | -- | 256-669.9 | DN-28.0 | 9.5 | 2.5 | 1.00 | 0.80 | 0.60 | 8.40 |
-- | 1000-2000 | -- | DN-28.0 | 9.5 | 2.5 | 1.00 | 0.80 | 0.60 | 8.40 |
-- | -- | 670-999.9 | DN-38.0 | 13.8 | 3.0 | 1.20 | 0.90 | 0.60 | 12.00 |
1000-2700 | -- | -- | DN-38.0 | 13.8 | 3.0 | 1.20 | 0.90 | 0.60 | 12.00 |
Application and properties

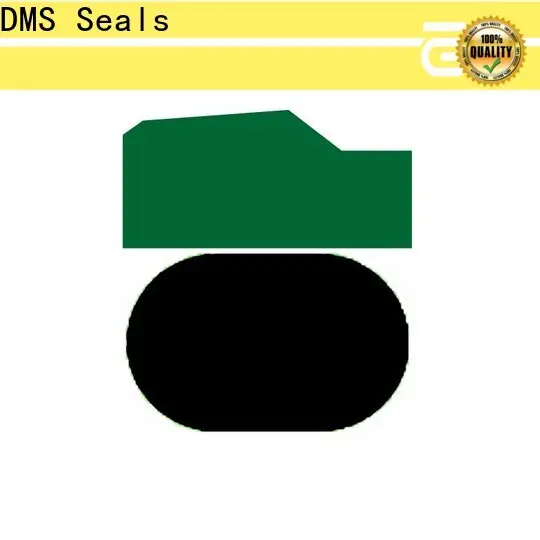

Standard single acting sealing. Suitable for reciprocating environment, allowing larger extrusion clearances, has wide application. Dynamic and static sealing property are good, be able to work in dusty condition. Low friction, simple groove, strong adaptability to work conditions.
Standard materials
Sealing ring: filled PTFE
O-ring: NBR / FKM
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-60MPa | -45℃ +200℃ | 15 m/s | hydraulic oil, flame retardant liquid, water and others |
Bore Dia. | Groove Dia. | Width | Order No. | O-ring Dimension |
D H9 | d1 h9 | L1+0.2 | ||
9 | 4.1 | 2.2 | GSD9*4.1*2.2 | 3.68*1.78 |
15 | 10.1 | 2.2 | GSD15*10.1*2.2 | 9.25*1.78 |
20 | 12.7 | 3.2 | GSD20*12.7*3.2 | 12.37*2.62 |
27 | 16.3 | 4.2 | GSD27*16.3*4.2 | 15.47*3.53 |
32 | 24.7 | 3.2 | GSD32*24.7*3.2 | 23.47*2.62 |
36 | 25.3 | 4.2 | GSD36*25.3*4.2 | 24*3.53 |
40 | 29.9 | 4.2 | GSD40*29.3*4.2 | 28.17*3.53 |
50 | 39.3 | 4.2 | GSD50*39.3*4.2 | 37.70*3.53 |
55 | 44.3 | 4.2 | GSD55*44.3*4.2 | 44.04*3.53 |
63 | 47.9 | 6.3 | GSD63*47.9*6.3 | 46.99*5.33 |
70 | 59.3 | 4.2 | GSD70*59.3*4.2 | 56.74*3.53 |
80 | 64.9 | 6.3 | GSD80*64.9*6.3 | 62.87*5.33 |
90 | 74.9 | 6.3 | GSD90*74.9*6.3 | 72.39*5.33 |
95 | 74.5 | 8.1 | GSD95*74.5*8.1 | 73*7.0 |
110 | 94.9 | 6.3 | GSD110*94.9*6.3 | 91.44*5.33 |
Company Features
1. Dms Seals Technology Co.,limited is an export oriented enterprise with export license. DMS Seals is skilled at producing outstanding hydraulic cylinder piston rings and offering the considerate service. Dms Seals Technology Co.,limited has formed a unique Chinese strong polyurethane hydraulic seals brand - DMS Seals. As a renowned custom oil seals supplier, DMS Seals excels in producing high quality rubber piston rings . Under correct development guidance, Dms Seals Technology Co.,limited wins wide global market for its molded seals .
2. Staff working in Dms Seals Technology Co.,limited are all well-trained. We put great emphasis on technology of piston rod seals hydraulic . All our technical staff are rich in experience for cup seals for hydraulic cylinders . We have excellent manufacturing and innovation capabilities guaranteed by international advanced buy hydraulic seals equipment.
3. We assume social responsibility in the production process and other business activities. We have made a strict plan to reduce pollution during the production process, including water and waste pollution. Adhering to the principle of "credit, superior quality, and competitive price", we are now looking forward to deeper cooperation with overseas customers and expand more selling channels. Within our own facilities, we work on reducing our water consumption, carbon emissions and waste stream, now and in the future.
