Product Details
We are confident about the exquisite details of Oil Seal Manufacturer.Oil Seal Manufacturer, manufactured based on high-quality materials and advanced technology, has excellent quality and favorable price. It is a trustworthy product which receives recognition and support in the market.
Company Advantages1. DMS Seals hydraulic seals companies is crafted using quality materials in compliance with industry production norms and guidelines.
2. DMS Seals , crafted using advanced production technology, is exceptional in every detail.
3. DMS Seals hydraulic seals companies is manufactured by the inclusion of modern machines and sophisticated techniques in the production process.
4. The design of makes our hydraulic seals companies more practical in our life.
5. Adopting such design, hydraulic seals companies is provided with many merits like and so on.
6. hydraulic seals companies is widely used in the field increasingly because of its unique advantages such as and so on.
7. On the basis of test results, It was confirmed hydraulic seals companies is a kind of products.
8. The hydraulic seals companies shows great performance in and .
9. Dms Seals Technology Co.,limited takes every measure to guarantee quality of hydraulic seals companies .
10. In order to better expand the market, Dms Seals Technology Co.,limited has established a complete sales network.
11. Carrying out strict quality assurance is beneficial to the popularity of hydraulic seals companies .
12. With its advanced technology, Dms Seals Technology Co.,limited provides professional service for the customers in hydraulic seals companies field.
Installation Recommendation
![undefined undefined]()
Installation Sizes
Bore Diameter | Groove Diameter | Groove Width | Radius | Radial Clearance S max. |
D H8 | d h8 | L1+0.2 | R1 | 16MPa | 26MPa | 32MPa | 40MPa |
55.0-149.9 | D-10.0 | 10.0 | 0.4 | 0.60 | 0.50 | 0.40 | 0.40 |
150.0-244.9 | D-12.5 | 12.5 | 0.4 | 0.75 | 0.65 | 0.55 | 0.50 |
245.0-500.0 | D-15.0 | 15.0 | 0.8 | 0.75 | 0.65 | 0.55 | 0.50 |
500.1-760.0 | D-17.5 | 17.5 | 1.2 | 0.75 | 0.65 | 0.55 | 0.50 |
760.1-999.9 | D-20.0 | 20.0 | 1.2 | 0.80 | 0.70 | 0.60 | 0.55 |
≧1000 | D-20.0 | 20.5 | 1.2 | 0.80 | 0.70 | 0.60 | 0.55 |
Application and properties
Applied to the hydraulic cylinder of heavy machinery and metallurgical equipment. Pressure resistance and corrosion resistance are strong, good thermal conductivity,structure anti-distortion, low friction, no crawling phenomenon.
Sealing ring: filled PTFE
O-Ring: NBR / FKM
Working Conditions
Working Conditions |
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-60MPa | -30℃+100℃ | 5 m/s | hydraulic oil, flame retardant liquid, water and others |
Installation Dimensions
Bore Dia. | Groove Dia. | Groove Width | Order No. |
D H8 | d h8 | L+0.2 |
55
60
70 | 40
45
55 | 10
10
10 | GSF-W55*40*10
GSF-W60*45*10
GSF-W70*55*10 |
80
90
100 | 60
70
80 | 10
10
10 | GSF-W80*60*10
GSF-W90*70*10
GSF-W100*80*10 |
110
115
120 | 90
95
100 | 10
10
10 | GSF-W110*90*10
GSF-W115*95*10
GSF-W120*100*10 |
130
140
150 | 110
120
125 | 10
10
12.5 | GSF-W130*110*10
GSF-W140*120*10
GSF-W150*125*12.5 |
160
165
170 | 135
140
145 | 12.5
12.5
12.5 | GSF-W160*135*12.5
GSF-W165*140*12.5
GSF-W170*145*12.5 |
180
185
190 | 155
160
165 | 12.5
12.5
12.5 | GSF-W180*155*12.5
GSF-W185*160*12.5
GSF-W190*165*12.5 |
200
205
210 | 175
180
185 | 12.5
12.5
12.5 | GSF-W200*175*12.5
GSF-W205*180*12.5
GSF-W210*185*12.5 |
215
220
225 | 190
195
200 | 12.5
12.5
12.5 | GSF-W215*190*12.5
GSF-W220*195*12.5
GSF-W225*200*12.5 |
230
240
245 | 205
215
215 | 12.5
12.5
15 | GSF-W230*205*12.5
GSF-W240*215*12.5
GSF-W245*215*15 |
Company Features1. Engaged in the production and distribution of hydraulic seals companies for years, Dms Seals Technology Co.,limited has become one of the leading roles in the industry. Dms Seals Technology Co.,limited is a company headquartered in China, specializing in the design and manufacture of . We have gained a reputation for quality, service and competitive price. Dms Seals Technology Co.,limited is a highly-regarded enterprise with excellency in manufacturing transmission piston seal . We are a professional manufacturer with years of devotion to this industry.
2. DMS Seals has attained the international level in important technical areas such as R&D, design, manufacturing and construction. The employees are the energy that drives our company forward. They predictably execute strategy, meet goals, and need little management oversight. They are the asset that makes it possible for the company to accomplish ambitious projects. Our factory has utilized a series of advanced production facilities, which helps us achieve both outstanding production quality and exceptional operational efficiency. Our team is a group of well-educated Chinese engineers with manufacturing background. Our staff of engineers, QC managers and account executives have experience with Asian and western business cultures.
3. Dms Seals Technology Co.,limited will always forge ahead and persist in research and innovation. Inquire online! We will strive to be the best – we are restless, always learning, always improving. We constantly set high standards and then try hard to exceed them. We deliver results, win where we compete and celebrate our success. Inquire online! We aim to achieve measurable sustainability targets – reducing environmental impact and protecting the extraordinarily rich natural resources that our country enjoys. Inquire online!

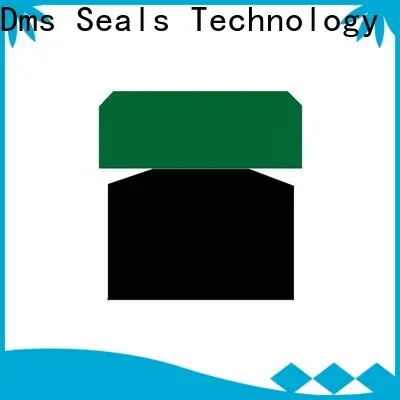

Latest hydraulic seals companies with nbr or fkm o ring for sale
hydraulic seals companies
Type:
![Latest hydraulic seals companies with nbr or fkm o ring for sale 6]()
