Latest hydraulic seals & supplies inc wholesale for sale

Company Advantages
1. DMS Seals complies with general electrical safety standards, especially IEC standards. They include IEC 60364 series, IEC 61140, 60479 series and IEC 61201 series.
2. The tests for DMS Seals have been strictly carried out. These tests cover a wide range of aspects: circuit board, plugs, voltage, housing, etc.
3. The manufacturing processes of DMS Seals involve a wide range of aspects. From the timber materials selecting, board cutting, sandblasting, face milling, spraying, polishing, to quality inspection, all of these processes are controlled by professional workers.
4. The packaging quality is important for DMS Seals hydraulic seals & supplies inc . Its packaging materials comply with EU packaging materials and waste directive for the battery.
5. A series of tests are conducted to improve qualification ratio.
6. Under the high demand on testing procedure, the product is guaranteed to be zero defect.
7. Because of its excellent characteristics, hydraulic seals & supplies inc has gotten much wider application.
8. The product is completed to the highest of standards for reliability and performance within the industry.
9. The product achieves good results in practical applications.
10. Finding applications in many industries, this product is offered in different sizes and finishes.
11. The product is widely praised by users for its good characteristics and has high market application potential.
12. This product has great economic benefits and is very popular among customers.

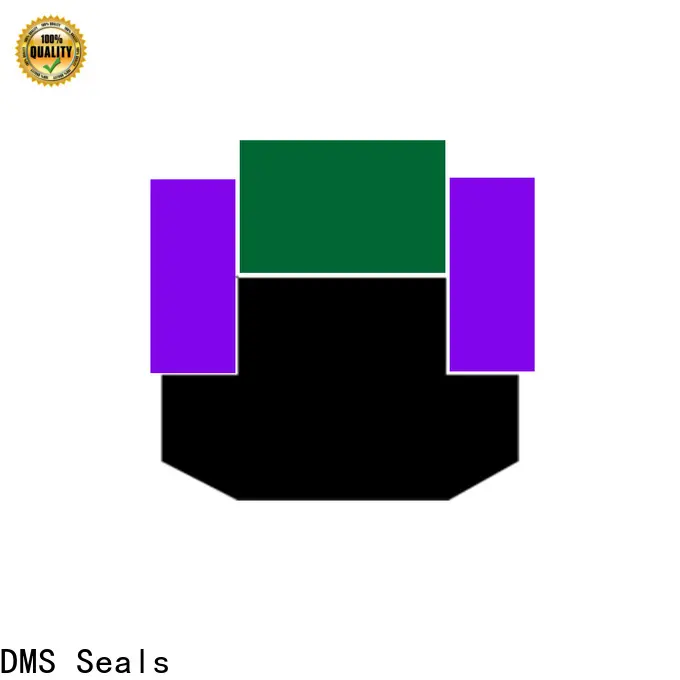

1. Installation Recommendation

2. Application and properties

Suitable for long stroke, a wide range of fluids and high temperature occasions. The application of heavy duty double acting piston sealing under high pressure conditions is excellent. Applicable to larger piston clearance , it has good leakage control, extrusion resistance and wear resistance in heavy duty and construction machinery cylinder piston sealing system. Good static sealing property, simple groove structure, larger extrusion clearances can be allowed, be able to work in dusty condition.

3. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Back-up ring: POM / PA

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
50 - 350mm	0 - 50MPa	-30℃ +100℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others

5. Installation Dimensions

Nominal Size of Packing, and Housing dimensions			L+0.2	Order No.
D1	dN	H
50 55 60	36 41 46	8.5 8.5 8.5	9 9 9	SPGW50*36*8.5 SPGW55*41*8.5 SPGW60*46*8.5
63 65 70	48 50 55	10.5 10.5 10.5	11 11 11	SPGW63*48*10.5 SPGW65*50*10.5 SPGW70*55*10.5
75 80 85	60 65 70	10.5 10.5 10.5	11 11 11	SPGW75*60*10.5 SPGW80*65*10.5 SPGW85*70*10.5
90 95 100	75 80 85	10.5 10.5 12	11 11 12.5	SPGW90*75*10.5 SPGW95*80*10.5 SPGW100*85*12
105 110 115	90 95 100	12 12 12	12.5 12.5 12.5	SPGW105*90*12 SPGW110*95*12 SPGW115*100*12
120 125 130	105 102 107	12 15.5 15.5	12.5 16 16	SPGW120*105*12 SPGW125*102*15.5 SPGW130*107*15.5
135 140 145	112 117 122	15.5 15.5 15.5	16 16 16	SPGW135*112*15.5 SPGW140*117*15.5 SPGW145*122*15.5
150 155 160	127 132 137	15.5 15.5 15.5	16 16 16	SPGW150*127*15.5 SPGW155*132*15.5 SPGW160*137*15.5
165 170 180	142 147 157	15.5 15.5 15.5	16 16 16	SPGW165*142*15.5 SPGW170*147*15.5 SPGW180*157*15.5
185 190 200	162 167 177	15.5 15.5 15.5	16 16 16	SPGW185*162*15.5 SPGW190*167*15.5 SPGW200*177*15.5
210 220 225	187 197 202	15.5 15.5 17	16 16 17.5	SPGW210*187*15.5 SPGW220*197*15.5 SPGW225*202*15.5
230 240 250	207 217 222	17 17 17	17.5 17.5 17.5	SPGW230*207*15.5 SPGW240*217*15.5 SPGW250*222*17
260 270 280	232 242 252	17 17 17	17.5 17.5 17.5	SPGW260*232*17 SPGW270*242*17 SPGW280*252*17
300 320 350	272 292 322	17 17 17	17.5 17.5 17.5	SPGW300*272*17 SPGW320*292*17 SPGW350*322*17

Company Features
1. DMS Seals brand is always good at manufacturing highly technological hydraulic seals & supplies inc . As a leading company, Dms Seals Technology Co.,limited mainly manufactures high quality cylinder packing kits . With a complete supply chain, DMS Seals has achieved a lot in the polyurethane piston seals industry. Dms Seals Technology Co.,limited has attracted more and more customers for its high reputation.
2. Our company has assembled an incredibly dedicated manufacturing team. With years of combined experience, they have been specialists in providing high-quality products for our customers. Our manufacturing plant is the heart of our business. It has been crafting high-quality products in an environment dedicated to excellence and safety. We have a wide range of testing machines. They are highly sensitive to help us test our products and ensure that we can meet, and in most cases exceed industry standards. The workshop is equipped with world-class integration equipment, including automatic assembly machines and testing equipment. These machines can firmly support bulk order and guarantee the net production per day.
3. We are eager to contribute to environmental protection. We will engage in materials recycling work, waste management, and energy & resources conservation work. Our goal is to lead by example and adopt sustainable production. We have a strong governance structure and we actively engage with our customers on sustainability issues. Inquire online! Our business goal is to promote our products responsibly and conduct our business practices in a fashion that promotes transparency. Our commitment to sustainability extends to the environmental impacts of our people, operations, and products and services. We significantly increase energy efficiency and reduce greenhouse gas emissions related to our operations and products. The current business goal for us is to better serve the customers. We will fulfill customers’ legitimate expectations at any time and create more possibilities for our customers.
