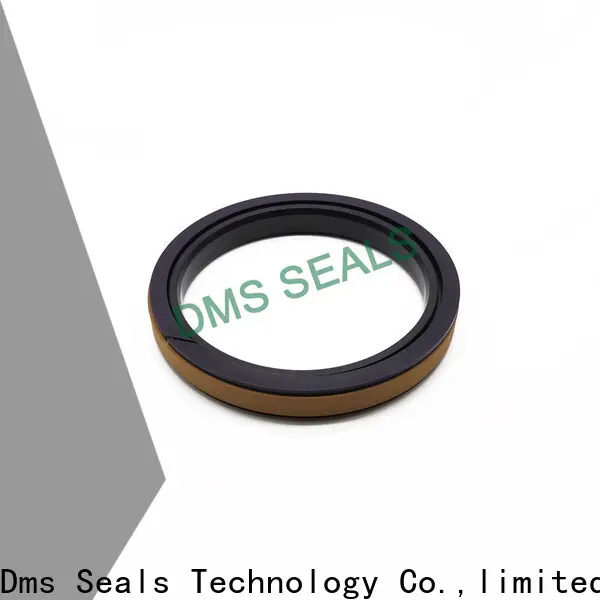

Latest hydraulic u seal for business for pneumatic equipment

Company Advantages
1. DMS Seal Manufacturer will go through quality assurance tests. It has passed electric component anti-fatigue testing, insulation level, energy-saving level, and electromagnetic safety test.
2. The design of DMS Seal Manufacturer meets the market trend of pool accessories. It is created by designers who combine the modern demands for pool accessories with high practicability.
3. Any raw materials used in DMS Seal Manufacturer will be tested before production, including hardness, density, and water resistance tests. All these tests must be conducted in line with the shoe materials requirements.
4. Under the strict supervision of our quality experts, the product has passed 100% conformity testing.
5. The product has stable performance, long storage life and reliable quality.
6. The implementation of the quality management system ensures that the product complies with international standards.
7. The product USES the reliable examination instrument to carry on the examination, guarantees the product quality to be reliable, the performance is good.
8. This product is durable and well received by users.
9. This product has a soft and luxurious feel that makes you sleep well at night. This is great for any room in the house.
10. It’s extremely breathable and helps to wick moisture away from the skin, so the sleeper never wakes up feeling sticky or clammy.
11. This product has good performance in normal use. A good fit is achieved because the subject will feel comfortable and can perform the task well.
12. This kind of product has features of ultra-light and ultra-thin that can effectively reduce the pressure on the bridge of the nose when wearing.
13. Products play an important role in reducing or eliminating the amount of human tasks that need to be completed, which helps reduce labor costs.

1. Installation Recommendation

2. Application and properties

Suitable for long stroke, a wide range of fluids and high temperature occasions. The application of heavy duty double acting piston sealing under high pressure conditions is excellent. Applicable to larger piston clearance , it has good leakage control, extrusion resistance and wear resistance in heavy duty and construction machinery cylinder piston sealing system. Good static sealing property, simple groove structure, larger extrusion clearances can be allowed, be able to work in dusty condition.

3. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Back-up ring: POM / PA

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
50 - 350mm	0 - 50MPa	-30℃ +100℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others

5. Installation Dimensions

Nominal Size of Packing, and Housing dimensions			L+0.2	Order No.
D1	dN	H
50 55 60	36 41 46	8.5 8.5 8.5	9 9 9	SPGW50*36*8.5 SPGW55*41*8.5 SPGW60*46*8.5
63 65 70	48 50 55	10.5 10.5 10.5	11 11 11	SPGW63*48*10.5 SPGW65*50*10.5 SPGW70*55*10.5
75 80 85	60 65 70	10.5 10.5 10.5	11 11 11	SPGW75*60*10.5 SPGW80*65*10.5 SPGW85*70*10.5
90 95 100	75 80 85	10.5 10.5 12	11 11 12.5	SPGW90*75*10.5 SPGW95*80*10.5 SPGW100*85*12
105 110 115	90 95 100	12 12 12	12.5 12.5 12.5	SPGW105*90*12 SPGW110*95*12 SPGW115*100*12
120 125 130	105 102 107	12 15.5 15.5	12.5 16 16	SPGW120*105*12 SPGW125*102*15.5 SPGW130*107*15.5
135 140 145	112 117 122	15.5 15.5 15.5	16 16 16	SPGW135*112*15.5 SPGW140*117*15.5 SPGW145*122*15.5
150 155 160	127 132 137	15.5 15.5 15.5	16 16 16	SPGW150*127*15.5 SPGW155*132*15.5 SPGW160*137*15.5
165 170 180	142 147 157	15.5 15.5 15.5	16 16 16	SPGW165*142*15.5 SPGW170*147*15.5 SPGW180*157*15.5
185 190 200	162 167 177	15.5 15.5 15.5	16 16 16	SPGW185*162*15.5 SPGW190*167*15.5 SPGW200*177*15.5
210 220 225	187 197 202	15.5 15.5 17	16 16 17.5	SPGW210*187*15.5 SPGW220*197*15.5 SPGW225*202*15.5
230 240 250	207 217 222	17 17 17	17.5 17.5 17.5	SPGW230*207*15.5 SPGW240*217*15.5 SPGW250*222*17
260 270 280	232 242 252	17 17 17	17.5 17.5 17.5	SPGW260*232*17 SPGW270*242*17 SPGW280*252*17
300 320 350	272 292 322	17 17 17	17.5 17.5 17.5	SPGW300*272*17 SPGW320*292*17 SPGW350*322*17

Company Features
1. In the process, DMS Seal Manufacturer is always in a dominant position in hydraulic u seal industry. Dms Seals Technology Co.,limited is regarded as a reliable manufacturer for piston seal manufacturers by customers. DMS Seal Manufacturer has strong strength to manufacture superlative wholesale oil seals .
2. hallite hydraulic seals is not just a , but also helps improve the quality of the , making it better. The advanced mechanical processing equipment and the complete modern management system are available in Dms Seals Technology Co.,limited's manufacturing plant. Dms Seals Technology Co.,limited has a number of large-scale production lines for piston oil seal . There are many old customers for DMS Seal Manufacturer because of its stable high quality.
3. Good service contributes to the reputation of DMS Seal Manufacturer in the industry. Inquire online! DMS Seal Manufacturer will be consistently pursuing high quality for pneumatic cylinder rod seal . Inquire online! Customers' trust is DMS Seal Manufacturer's driving force for excellence. Inquire online!
