Latest pneumatic seal kit for sale for pressure work and sliding high speed occasions

Company Advantages
1. The whole production of DMS Seals is greatly improved. DMS Seals manufacturer owns a team of professional R&D group and skilled technicians
2. The product works much faster than man. Its high efficiency directly contributes to improving productivity. This can bring about expenditure reduction. DMS Seals provides professional design and production of high-grade o-ring seals
3. This product has good anti-fungal properties. The fiber formulation of this product contains antibacterial ingredients that are harmless to the human body. DMS Seals' production equipment and test equipment are on the leading level in the industry
4. The filling material and the fabric are perfectly coordinated. As a result, this product performs to its very best. We have developed solutions of the sealing of special working condition
5. The product is safe in use. It will go in pause mode if there is any inconsistent operation, offering protection for operators. DMS Seals takes the lead in grasping the development trend of the industry

1. Installation Recommendation

2. Application and properties

The standard combination seal is suitable for a wide range of pressure work and sliding high speed occasions. Low friction, strong wear resistance.



3. Standard materials

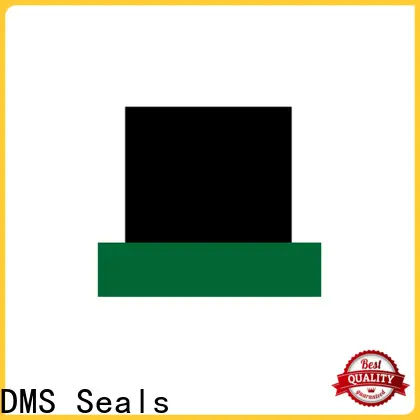

Sealing ring: filled PTFE

O-Ring: NBR / FKM

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
6-1600mm	0-35MPa	-30℃ +200℃	1.5 m/s	general hydraulic oil, water glycol Hydraulic oil and water emulsion type hydraulic oil.



5. Installation Dimensions

Nominal Size of Packing, and Housing dimensions				Order No.
d	D	H	L +0.2
18 20 22	27 29 31	4.3 4.3 4.3	4.5 4.5 4.5	SPN18*27*4.3 SPN20*29*4.3 SPN22*31*4.3
27 31.5 47	36 40.5 60	4.3 4.3 7.3	4.5 4.5 7.5	SPN27*36*4.3 SPN31.5*40.5*4.3 SPN47*60*7.3
53 60 65	66 73 78	7.3 7.3 7.3	7.5 7.5 7.5	SPN53*66*7.3 SPN60*73*7.3 SPN65*78*7.3
70 75 80	83 88 93	7.3 7.3 7.3	7.5 7.5 7.5	SPN70*83*7.3 SPN75*88*7.3 SPN80*93*7.3
90 100 110	103.4 113.4 123.4	7.3 7.3 7.3	7.5 7.5 7.5	SPN90*103.4*7.3 SPN100*113.4*7.3 SPN110*123.4*7.3
120 130 140	133.4 143.4 153.4	7.3 7.3 7.3	7.5 7.5 7.5	SPN120*133.4*7.3 SPN130*143.4*7.3 SPN140*153.4*7.3

Company Features
1. Dms Seals Technology Co.,limited is an extremely advanced and aggressive producer of pneumatic seal kit . Our hydraulic seals ppt is easily operated and need no additional tools.
2. Our technology takes the lead in the industry of hydraulic seals .
3. With the unique technology and stable quality, our rubber piston seal win a wider and wider market gradually. DMS Seals has a lofty aspiration to be a pioneer in producing hydraulic rod seals . Check now!
