Product Comparison
Dms Seals pays great attention to integrity and business reputation. We strictly control the quality and production cost in the production. All these guarantee Oil Seal Manufacturer to be quality-reliable and price-favorable.Oil Seal Manufacturer produced by Dms Seals stands out among many products in the same category. And the specific advantages are as follows.
Enterprise Strength
-
Dms Seals has always been providing advanced technology and sound after-sales service for customers.
Company Advantages1. DMS Seals shaft wiper seal is manufactured from high quality raw material procured from reliable vendors in the industry.
2. The uninterrupted and fine production process of DMS Seals shaft wiper seal is ensured by all our members working in perfect coordination with each other.
3. DMS Seals shaft wiper seal is manufactured by using the best of raw materials, technology, equipment and personnel across the group.
4. The raw material used in DMS Seals is of high quality and has no any strange smell during use.
5. The product has passed through many quality tests and third-party certifications.
6. The quality oversight of qualification activities in manufacturing area is emphasized.
7. Its quality is strictly checked by quality inspection department from the raw material to the shipment process.
8. The product has passed multiple strict quality inspection processes.
9. During sleep, people will never breathe any irritating chemicals with this quality certified product. And their skin is protected from acne or irritation.
10. The greatest advantage of this product lies in its enduring look and appeal. Its beautiful texture brings warmth and character to any room.
11. The product is extensively applied in a variety of conditions, including high-temperature, low-temperature, strong corrosion, high speed, and other harsh conditions.
12. The product's luster and soft touch have made it almost synonymous with comfortable bedrooms. This is a very popular bed decoration.
Installation Recommendation
![undefined undefined]()
Installation Sizes
Bore Diameter | Groove Diameter | Groove Width | Radius | Radial Clearance S max. |
D H8 | d h8 | L1+0.2 | R1 | 16MPa | 26MPa | 32MPa | 40MPa |
55.0-149.9 | D-10.0 | 10.0 | 0.4 | 0.60 | 0.50 | 0.40 | 0.40 |
150.0-244.9 | D-12.5 | 12.5 | 0.4 | 0.75 | 0.65 | 0.55 | 0.50 |
245.0-500.0 | D-15.0 | 15.0 | 0.8 | 0.75 | 0.65 | 0.55 | 0.50 |
500.1-760.0 | D-17.5 | 17.5 | 1.2 | 0.75 | 0.65 | 0.55 | 0.50 |
760.1-999.9 | D-20.0 | 20.0 | 1.2 | 0.80 | 0.70 | 0.60 | 0.55 |
≧1000 | D-20.0 | 20.5 | 1.2 | 0.80 | 0.70 | 0.60 | 0.55 |
Application and properties
Applied to the hydraulic cylinder of heavy machinery and metallurgical equipment. Pressure resistance and corrosion resistance are strong, good thermal conductivity,structure anti-distortion, low friction, no crawling phenomenon.

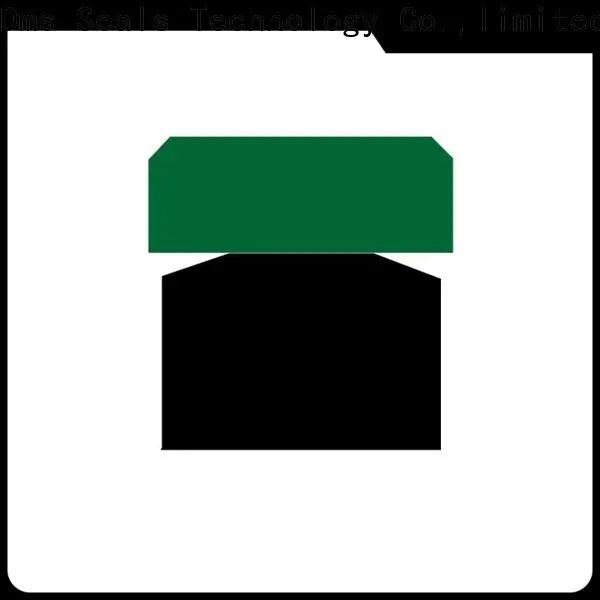

Sealing ring: filled PTFE
O-Ring: NBR / FKM
Working Conditions
Working Conditions |
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-60MPa | -30℃+100℃ | 5 m/s | hydraulic oil, flame retardant liquid, water and others |
Installation Dimensions
Bore Dia. | Groove Dia. | Groove Width | Order No. |
D H8 | d h8 | L+0.2 |
55
60
70 | 40
45
55 | 10
10
10 | GSF-W55*40*10
GSF-W60*45*10
GSF-W70*55*10 |
80
90
100 | 60
70
80 | 10
10
10 | GSF-W80*60*10
GSF-W90*70*10
GSF-W100*80*10 |
110
115
120 | 90
95
100 | 10
10
10 | GSF-W110*90*10
GSF-W115*95*10
GSF-W120*100*10 |
130
140
150 | 110
120
125 | 10
10
12.5 | GSF-W130*110*10
GSF-W140*120*10
GSF-W150*125*12.5 |
160
165
170 | 135
140
145 | 12.5
12.5
12.5 | GSF-W160*135*12.5
GSF-W165*140*12.5
GSF-W170*145*12.5 |
180
185
190 | 155
160
165 | 12.5
12.5
12.5 | GSF-W180*155*12.5
GSF-W185*160*12.5
GSF-W190*165*12.5 |
200
205
210 | 175
180
185 | 12.5
12.5
12.5 | GSF-W200*175*12.5
GSF-W205*180*12.5
GSF-W210*185*12.5 |
215
220
225 | 190
195
200 | 12.5
12.5
12.5 | GSF-W215*190*12.5
GSF-W220*195*12.5
GSF-W225*200*12.5 |
230
240
245 | 205
215
215 | 12.5
12.5
15 | GSF-W230*205*12.5
GSF-W240*215*12.5
GSF-W245*215*15 |
Company Features1. The quality and quantity of shaft wiper seal produced by Dms Seals Technology Co.,limited are among the leading level in China. DMS Seals has been ranking top in piston oil seal industry for years. Since inception, Dms Seals Technology Co.,limited has been showing the high quality hydraulic swivel seals and service to the world. Dms Seals Technology Co.,limited has designed and manufactured a range of hydraulic piston seals .
2. It is important for DMS Seals to keep innovative especially in the technology in this changing society. Dms Seals Technology Co.,limited has a strong technical force and a stable technical backbone. Dms Seals Technology Co.,limited has strong technical force and perfect processing equipment. Dms Seals Technology Co.,limited gained honor in the profession by its excellent equipment, advanced technology and modern management. Dms Seals Technology Co.,limited has established a provincial-level technology center for hydraulic seal kit manufacturers .
3. Our company attaches great attention to diversity and regards it as our core value. We succeed under the wisdom of people with different ideas, strengths, interests, and cultural backgrounds. Get more info! Under the monitoring of new media and activist groups, the company strives to minimize environmental impacts and reduce resources waste. These movements help it to establish a good business reputation in society. Get more info! Dms Seals Technology Co.,limited aims to satisfy customers with high quality products and excellent service. Get more info! Our commitment to quality is paramount for our success and we are proud of our ISO Management, Environmental and Health & Safety. We are regularly inspected by our customers to ensure our high standards are maintained at all times. Get more info! We will continue to provide customers with quality and perfect customer service. Get more info!
Latest shaft wiper seal Suppliers for light and medium hydraulic systems
shaft wiper seal
Type:
![Latest shaft wiper seal Suppliers for light and medium hydraulic systems 7]()
