Latest wholesale oil seals vendor for pneumatic equipment

Company Advantages
1. DMS Seals has been assessed in terms of raw materials. Materials that pose a threat to the overall jewelry design and construction are subject to evaluation to determine if the pieces can still be used or not.
2. The shaping processes of DMS Seals adopts four general production techniques including extrusion, calendering, coating or molding, and casting.
3. The production environment of DMS Seals is required to be neat, clean, noise and dust free. Workers are required to wear dust suit in the work plant.
4. By combining sensors, algorithms, and ultra-fast data transfer, DMS Seals delivers a digital experience that feels as intuitive and natural as writing, drawing, or signing on paper.
5. DMS Seals has been evaluated regarding the safety construction such as instrumentation and control, electrical and mechanical equipment, mechanical and structural piping, supports and hangers, etc.
6. The product has a good cushioning effect. The materials used in it can absorb much more impact under low impact energy.
7. This product is not prone to deform. It has been treated to resist moisture which may cause deformation and corrosion.
8. This product has the desired breathability. Its fabric used showcases outstanding abilities with regard to air permeability, water vapor permeability, and water vapor resistance.
9. The product is resistant to fray. It withstands dry cleaning and normal washing without the problem of fiber breaking or loosing which finally causes fray.
10. This product has the desired durability. It has a strong fabric construction and stitching strength, which makes it be able to stand up to a certain pull for a long time.
11. The product is assured to be safe for people. It does not generate any radiation harm such as electromagnetic radiation which causes a heart attack or even cancers.
12. For people who want a sanitary and durable surface to prepare meals, this product is the perfect option for its incredible heat and scratch resistance.
13. The product will finally contribute to improving people's working efficiency. Its intelligence makes many tasks be completed easier and faster.

1. Installation Recommendation

2. Installation Sizes

Bore Diameter                         DN H9			Groove Diameter	Groove Width	Radius	Radial Clearance                S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	d1 h9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
8-14.9	15-39.9	-	DN-4.9	2.2	0.4	0.3	0.20	0.15	1.78
15-39.9	40-79.9	-	DN-7.5	3.2	0.6	0.4	0.25	0.15	2.62
40-79.9	80-132.9	15-39.9	DN-11.0	4.2	1.0	0.4	0.25	0.20	3.53
80-132.9	133-329.9	40-79.9	DN-15.5	6.3	1.3	0.5	0.30	0.20	5.33
133-329.9	330-699.9	80-132.9	DN-21.0	8.1	1.8	0.6	0.35	0.25	7.00
330-669.9	670-99.9	133-329.9	DN-24.5	8.1	1.8	0.6	0.35	0.25	7.00
670-999.9	≥1000	330-669.9	DN-28.0	9.5	2.5	0.7	0.50	0.30	8.40
≥1000	≥1000	≥1000	DN-38.0	13.8	3.0	1.0	0.70	0.60	12.00

3. Application and properties

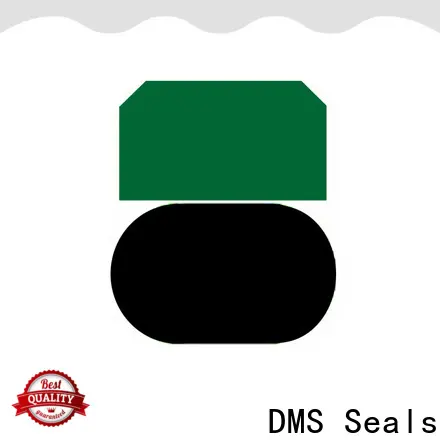

Standard double acting seal. Suitable for reciprocating motion, allowing larger extrusion clearances, has wide application. Dynamic and static sealing property are excellent, be able to work in dusty condition. Low friction, simple groove, strong adaptability to work conditions.

4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water and others

6. Installation Dimensions

Bore Dia.	Groove Dia.	Groove Width	Order No.	O-Ring Dimensions
DN H9	d1 h9	L1+0.2
8 10 12	3.1 5.1 7.1	2.2 2.2 2.2	GSF8*3.1*2.2 GSF10*5.1*2.2 GSF12*7.1*2.2	2.90*1.78 4.80*1.8 6.70*1.8
14 15 15	9.1 10.1 7.5	2.2 2.2 3.2	GSF14*9.1*2.2 GSF15*10.1*2.2 GSF15*7.5*3.2	8.75*1.8 7.59*2.62 8.75*1.8
16 16 18	11.1 8.5 13.1	2.2 3.2 2.2	GSF16*11.1*2.2 GSF16*8.5*3.2 GSF18*13.1*2.2	10.82*1.78 7.59*2.62 12.42*1.78
18 20 20	10.5 15.1 12.5	3.2 2.2 3.2	GSF18*10.5*3.2 GSF20*15.1*2.2 GSF20*12.5*3.2	9.19*2.62 14.00*1.78 12.37*2.62
24 24 25	19.1 16.5 17.5	2.2 3.2 3.2	GSF24*19.1*2.2 GSF24*16.5*3.2 GSF25*17.5*3.2	18.77*1.78 15.54*2.62 17.12*2.62
25 28 28	14 20.5 17	4.2 3.2 4.2	GSF25*14*4.2 GSF28*20.5*3.2 GSF28*17*4.2	13.87*3.53 20.29*2.62 15.47*3.53
30 30 32	22.5 19 24.5	3.2 4.2 3.2	GSF30*22.5*3.2 GSF30*19*4.2 GSF32*24.5*3.2	21.89*2.62 26.70*1.78 23.47*2.62

Company Features
1. DMS Seals has been thriving in wholesale oil seals field. Dms Seals Technology Co.,limited is an exporting wholesale hydraulic seals company that has been in business over decades of years. Dms Seals Technology Co.,limited has several production lines to mass manufacture Dms Seals Technology Co.,limited. Under advanced equipment and mature technology, Dms Seals Technology Co.,limited has become an advanced manufacturer of rod seal catalogue .
2. We have a positive workforce. The members have a good command of industry changes and the latest technology changes. They allow the company to move forward and remain competitive. We have many loyal customers. Most of them have signed a long-term cooperation agreement with us. The pleasant cooperation with foreign customers has once again demonstrated our strength. The factory has implemented a comprehensive production tracking management system. This system is set based on the actual situation of our factory and designed to control various variable factors throughout the production process.
3. We bear social responsibilities. Everything we do is part of a continuing program to support responsibilities in climate protection, preserving biodiversity, pollution control, and waste reduction. As a company that committed to sustainable development, we develop pioneering and sustainable solutions to create better global living conditions. Tapping into technology has become one of the major paths for our business success. We will work hard to introduce international cutting-edge R&D and production facilities to help us gain a technological advantage.
