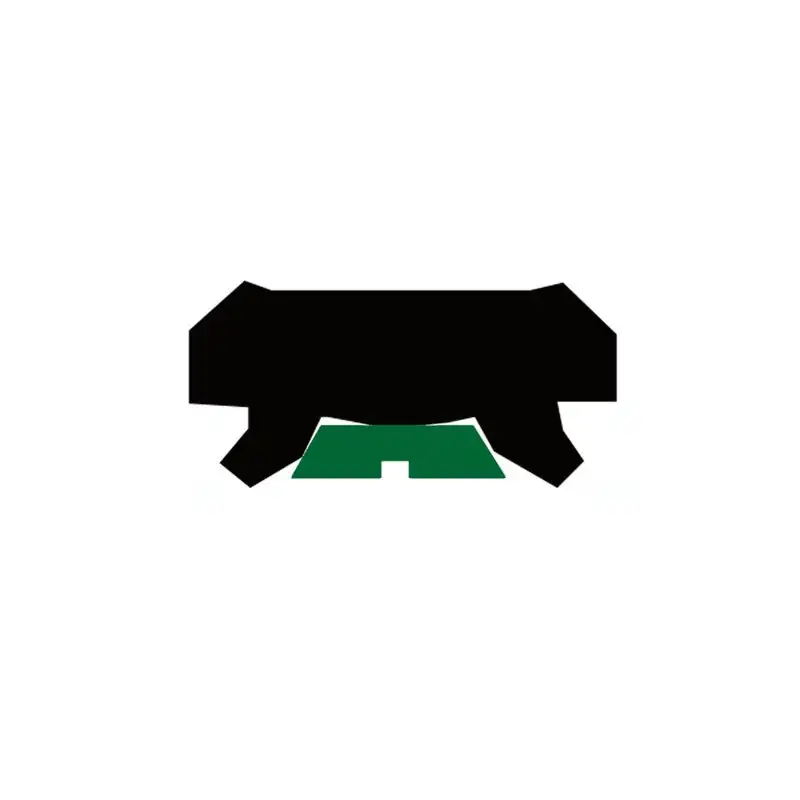

MDI - PTFE Hydraulic Rod Seal with NBR/FKM O-Ring
1. Installation Recommendation
2. Installation Sizes
|
Rod Diameter d e8 |
Groove Diameter D H9 |
Groove Width L D10 |
H |
|
20-56 |
d+10 |
16 |
15 |
|
57-140 |
d+13 |
16 |
15 |
|
＞140 |
d+15 |
16 |
15 |
3. Application and properties
Suitable for tandem type internal sealing, and can be used as fluid sealing and dust sealing simultaneously. Excellent sealing effect can be achieved in case of no pressure. Easy installation, wear-resisting, anti extrusion, low friction, non stick slip phenomenon.
4. Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / PU
5. Working Conditions
|
Working Conditions |
||||
|
Diameter Range |
Pressure Range |
Temperature Range |
Speed |
Medium |
|
3 - 1600mm |
0 - 25MPa |
-30℃ + 100℃ |
1 m/s |
hydraulic oil, flame retardant liquid, water, gas |
6. Installation Dimensions
|
D1 H9 |
H |
L D10 |
e |
Order No. |
|
|
50 55 56 |
60 65 66 |
15 15 15 |
16 16 16 |
6 6 6 |
MDI50*60*15 MDI55*65*15 MDI56*66*15 |
|
60 63 65 |
73 76 78 |
15 15 15 |
16 16 16 |
7 7 7 |
MDI60*73*15 MDI63*76*15 MDI65*78*15 |
|
70 72 75 |
83 85 88 |
15 15 15 |
16 16 16 |
7 7 7 |
MDI70*83*15 MDI72*85*15 MDI75*88*15 |
|
80 85 90 |
93 98 103 |
15 15 15 |
16 16 16 |
7 7 7 |
MDI80*93*15 MDI85*98*15 MDI90*103*15 |
|
95 100 105 |
108 113 118 |
15 15 15 |
16 16 16 |
7 7 10 |
MDI95*108*15 MDI100*113*15 MDI105*118*15 |
|
110 110 115 |
120 123 128 |
15 15 15 |
16 16 16 |
10 10 10 |
MDI110*120*15 MDI110*123*15 MDI115*128*15 |
|
120 125 130 |
133 138 143 |
15 15 15 |
16 16 16 |
10 10 10 |
MDI120*133*15 MDI125*138*15 MDI130*143*15 |
|
140 150 150 |
153 162 165 |
15 15 15 |
16 16 16 |
10 10 10 |
MDI140*153*15 MDI150*162*15 MDI150*165*15 |
|
160 165 170 |
175 180 185 |
15 15 15 |
16 16 16 |
10 10 10 |
MDI160*175*15 MDI165*180*15 MDI170*185*15 |
|
180 185 190 |
195 200 205 |
15 15 15 |
16 16 16 |
10 10 10 |
MDI180*195*15 MDI185*200*15 MDI190*205*15 |
