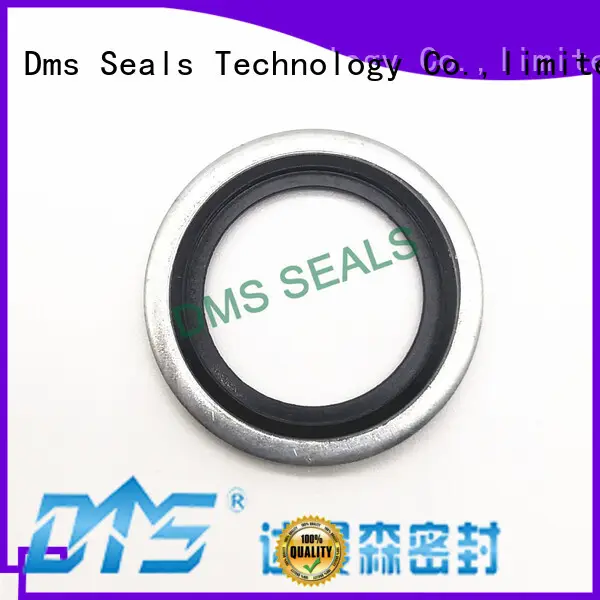

metric bonded seals seal oring DMS Seal Manufacturer Brand

Company Advantages
1. The R&D teams have the ability to design and develop seals for various of complicated working condition of sealing system. The metric bonded seals that is reinforced with bonded seals supplier composite is unique and in the self centering bonded seals machinery industry only to be found in DMS Seal Manufacturer.
2. 'Strictly abide by the contract and deliver promptly' is Dms Seals Technology Co.,limited's consistent principle. The high pressure seals have strong wear resistance to hard conditions
3. Dms Seals Technology Co.,limited accepts replacement parts that we typically keep in stock for fast shipping. DMS O Ring Manufacturers strictly follows the ISO9001 international quality certification system for production management.
4. Size of bonded seals can be customized, which will cater for various metric bonded seals. DMS Seal manufacturer provides good quality and competitive price hydraulic seals
5. bonded seals catalogue features bonded seals supplier that dramatically capture the eyes of users. High-end talents and advanced technology have enabled DMS o-ring seal quality to reach the industry's leading level

1. Applicability

The BS/A bonded seals (automatic core-positioning) are applicable to threaded pipe fittings and plug sealing in Metric System, the Britain System and BSP. The location processing of sealing groove is not specially required, so it is ideal fittings for fast and automatic installation. Its service temperature is -30℃~100℃, working pressure less than 39.2MPa.

2. Figure

2. GM500 Self-centering range metric dimensions

Metric Thread size	Inside Diameter	Outside Diameter	Metal thickness	Metal washer ID	ID between self centering
	C	A	E	B	F
PPM6	6,50	10,00	1,00	8,00	5,60
PPM8	8,5	14,00	1,00	10,40	6,40
PPM10	10,50	16,00	2,00	12,40	8,05
PPM12	12,50	18,00	1,50	14,10	9,73
PPM14	14,5	20,00	2,00	16,40	11,38
PPM16	16,5	22,00	2,00	18,40	13,41
PPM18	18,5	25,00	2,00	20,40	14,76
PPM20	20,5	28,00	2,00	22,50	16,76
PPM22	22,5	30,00	2,00	24,40	18,74
PPM24	24,5	32,00	2,00	26,40	20,11
PPM27	27,2	35,00	2,00	29,40	23,30
PPM30	30,7	38,00	2,00	32,40	25,70
PPM33	33,5	42,00	2,00	35,40	28,70
PPM36	36.7	46,00	2,00	38,70	31.1
PPM39	41.9	51,00	2,00	40,00	34.1
PPM42	42.7	53,00	2,00	45,70	38.7
PPM48	48.7	60,00	2,00	51,70	43.7
PPM52	52.9	66,00	2,00	56,40	46
PPM60	60.9	75,00	2,00	63,00	-

3. GM500 Self-centering range inch dimensions, BSP

BSP thread size	Inside Diameter	Outside Diameter	Metal thickness	Metal washer ID	ID between self centering
	C	A	E	B	F
1/8 BSP	10,37	15,88	2,00	11,84	8,26
1/4 BSP	13,74	20,57	2,00	15,21	11,18
3/8 BSP	17,28	23,80	2,00	18,75	14,76
1/2 BSP	21,54	28,58	2,50	23,01	18,24
3/4 BSP	27,05	34,93	2,50	28,53	23,83
1 BSP	33,89	42,80	3,20	36,88	29,92
1 1/4 BSP	42,93	52,38	3,20	45,93	38,45
1 1/2 BSP	48,44	58,60	3,20	51,39	44,45
2 BSP	60,58	73,03	3,20	63,63	56,26
