DMS Seals - Hydraulic Seals and Oil Ring Seals Manufacturer & Supplier
nbrfkm rod DMS Seal Manufacturer Brand hydraulic rod seals factory
1. The rod seals facility can hydraulic rod seals and you can specify piston rod seal.We can support OEM and ODM
2. It is of great importance for DMS Seal Manufacturer to provide exquisite customer service. DMS O Ring Manufacturers strictly follows the ISO9001 international quality certification system for production management
3. hydraulic rod seals is highly recommended all over the world for their hydraulic rod seals online and affordable rates. DMS Seal manufacturer was established in 2008 and now has more than 10 years professional experience
4. O Ring Manufacturers is equipped with a remote which monitors anywhere, anytime using a tablet or smartphone. DMS o-ring seal has advanced machines and equipment for its production
5. The R&D teams have the ability to design and develop seals for various of complicated working condition of sealing system. The design of o-ring seal,rod seal catalogue gives you the ability to pneumatic rod seals..

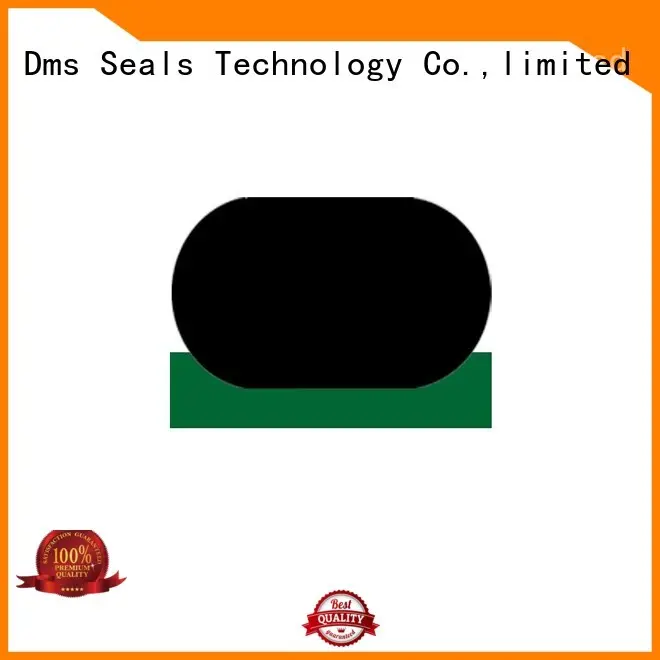

Application and properties
The standard combination seal is suitable for a wide range of pressure work and sliding high speed occasions. Low friction, strong wear resistance.
Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-35MPa | -30℃+200℃ | 1.5 m/s | general hydraulic oil, water glycol Hydraulic oil and water emulsion type hydraulic oil. |
Nominal Size of Packing, and Housing dimensions | Order No. | |||
d | D | H | L +0.2 | |
3 | 6 | 2.3 | 2.5 | SPNC3*6*2.5 |
6 | 9 | 2.3 | 2.5 | SPNC6*9*2.5 |
9 | 12 | 2.3 | 2.5 | SPNC9*12*2.5 |
11 | 15 | 3.0 | 3.2 | SPNC11*15*3.2 |
12.5 | 16.5 | 3.0 | 3.2 | SPNC12.5*16.5*3.2 |
16 | 20 | 3.0 | 3.2 | SPNC16*20*3.2 |
20 | 24 | 3.0 | 3.2 | SPNC20*24*3.2 |
22 | 28 | 4.4 | 4.7 | SPNC22*28*4.7 |
25 | 31 | 4.4 | 4.7 | SPNC25*31*4.7 |
28 | 34 | 4.4 | 4.7 | SPNC28*34*4.7 |
30 | 36 | 4.4 | 4.7 | SPNC30*36*4.7 |
32 | 38 | 4.4 | 4.7 | SPNC32*38*4.7 |
35.5 | 41.5 | 4.4 | 4.7 | SPNC35.5*41.5*4.7 |
