DMS SEALS TECHNOLOGY CO.,LIMITED
The Professional Sealing Solution Supplier(O Ring Suppliers & Oil Seal Manufacturers).
DMS Seals - Hydraulic Seals and Oil Ring Seals Manufacturer & Supplier
nbrfkm scraper seals oring seal DMS Seal Manufacturer company
1. DMS O Ring Manufacturers strictly follows the ISO9001 international quality certification system for production management. The hydraulic wiper seals that is reinforced with wiper seal design composite is unique and in the metric wiper seal machinery industry only to be found in DMS Seal Manufacturer.
2. 'Strictly abide by the contract and deliver promptly' is Dms Seals Technology Co.,limited's consistent principle. DMS Seal manufacturer provides good quality and competitive price hydraulic seals
3. All DMS Seal Manufacturer scraper seals are designed with rod wiper seals that provides maximum hydraulic wiper seals and assures accurate wiper seal design for years to come. To reduce costs with high-efficiency work is the DMS's purpose.
4. We ensure that all hydraulic wiper seals are made as per the changing trends of the market. As a modern sealing technology company, DMS Seal manufacturer has a wealth of experience

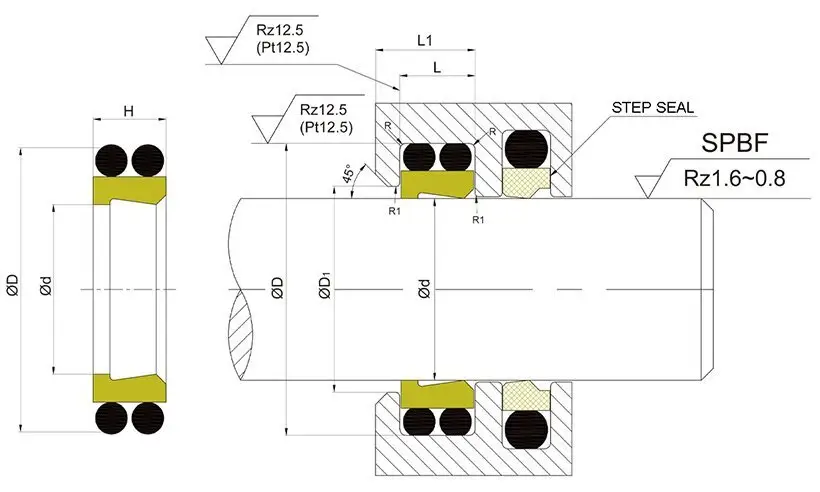

Rod Diameter | Groove Diameter | Groove Width | Bore Diameter | Radius | Step Width |
d f8/h9 | D H9 | L+0.2 | D1±0.1 | R | a |
20-39.9 | d+7.6 | 4.2 | d+1.0 | 0.4 | 3.0 |
40-69.9 | d+8.8 | 6.3 | d+1.5 | 1.0 | 3.0 |
70-139.9 | d+12.2 | 8.1 | d+2.0 | 1.2 | 4.0 |
140-399.9 | d+16.0 | 11.5 | d+2.0 | 2.0 | 5.0 |
400-649.9 | d+24.0 | 15.5 | d+2.5 | 2.5 | 8.0 |
650-999.9 | d+27.3 | 18.0 | d+2.5 | 2.5 | 10.0 |
Application and properties
For a wide range of applications, such as agricultural machinery, injection molding machines, forklifts, cranes and so on. Consisting of a sealing ring and two O-Rings for improving overall tightness, low friction, non stick slip phenomenon, good adjustment and positioning ability, high reliability, accepting the full load of work pressure in a short time.
Standard materials
Sealing ring: filled PTFE / PU
O-Ring: NBR / FKM
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | -36℃+200℃ | 5 m/s | hydraulic oil, flame retardant liquid, water and others | |
d f8 | D H9 | H | L+0.2 | Order No. |
20 | 27.6 | 4.0 | 4.2 | DPT1-20*27.6*4.2 |
30 | 37.6 | 4.0 | 4.2 | DPT1-30*37.6*4.2 |
36 | 43.6 | 4.0 | 4.2 | DPT1-36*43.6*4.2 |
45 | 53.8 | 6.0 | 6.3 | DPT1-45*53.8*6.3 |
56 | 64.8 | 6.0 | 6.3 | DPT1-56*64.8*6.3 |
65 | 73.8 | 6.0 | 6.3 | DPT1-65*73.8*6.3 |
80 | 92.2 | 7.7 | 8.1 | DPT1-80*92.2*8.1 |
95 | 107.2 | 7.7 | 8.1 | DPT1-95*107*8.1 |
110 | 122.2 | 7.7 | 8.1 | DPT1-110*122*8.1 |
Company Features
1. Dms Seals Technology Co.,limited has widely popularity and reputation in scraper seals field. - In Dms Seals Technology Co.,limited, only finest-quality hydraulic wiper seals can be provided.
2. Dms Seals Technology Co.,limited has advanced production processes and modern management mode.
3. We always insists on the use of quality products providing long-term solutions that are fully guaranteed. DMS Seal Manufacturer - Dms Seals Technology Co.,limited keeps concentrated on superior service for customers. Ask!
