New bucket cylinder seal kit company for light and medium hydraulic systems
1. is one key factor that makes DMS Seals warmly welcomed.
2. Since technological measures were put forward, bucket cylinder seal kit 's body frame has been highly improved.
3. bucket cylinder seal kit made from has the character of .
4. The product features high precision. Made of a CNC machine which features high accuracy, it is not prone to errors.
5. The product has excellent deformation resistance. It does not permanently deform or go out of shape even under prolonged compression pressure.
6. The product produces no disturbing friction. The layer of gel coating surface effectively makes this product slippery and smooth enough.
7. The reputation and competitiveness of this range has raised apparently in recent years.
8. Our QC team monitor procedure as per quality system requirements.
9. The product is popular among old and new customer and boasts a promising market application prospect.
10. This product has received many praises from customers.
Groove Diameter DN H9 | Groove Diameter | Groove Width | Radius | Radial Clearance S max. | O-Ring Cross Section | X-Ring Seal Cross Section | |||
Standard Application | Heavy Duty Application | d1 h9 | L1+0.2 | R1 | 10MPa | 20MPa | 30MPa | d2 | W |
40 - 79.9 | 25 - 140 | DN - 10.0 | 6.3 | 0.6 | 0.3 | 0.2 | 0.15 | 2.62 | 1.78 |
80 - 132.9 | 50 - 250 | DN - 13.0 | 8.3 | 1.0 | 0.4 | 0.3 | 0.15 | 3.53 | 2.62 |
133 - 252.9 | 100 - 480 | DN - 18.0 | 12.3 | 1.3 | 0.4 | 0.3 | 0.20 | 5.33 | 3.53 |
463 - 700 | 425 - 700 | DN - 31.0 | 16.3 | 1.8 | 0.5 | 0.4 | 0.30 | 7.00 | 5.33 |
Application and properties

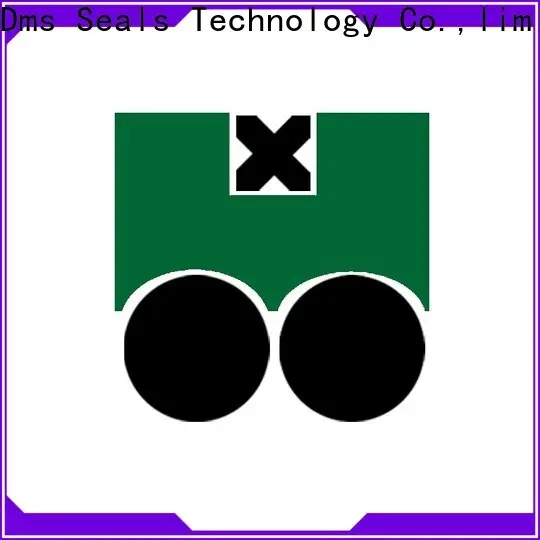

Apply to the working condition of fast speed, high pressure, and the necessary pressure keeping. Available for piston accumulator, clamping cylinder and positioning cylinder, especially recommended for heavy duty and large diameter applications. Double safety with low friction and high elasticity, Low gas permeability, excellent sliding performance in high pressure applications, no crawling phenomenon, simple groove structure, easy installation.
Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
X-Ring: NBR / FKM
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-60MPa | -30℃+200℃ | 3 m/s | hydraulic oil, flame retardant liquid, water and others |
Bore Dia. | Groove Dia. | Groove Width | Order No. | O-Ring Dimension |
d h9 | D1 H9 | L1+0.2 | ||
40 | 30 | 6.3 | DAQ2-40*30*6.3 | 29.82*2.62 |
48 | 38 | 6.3 | DAQ2-48*38*6.3 | 37.77*2.62 |
55 | 45 | 6.3 | DAQ2-55*45*6.3 | 44.12*2.62 |
65 | 55 | 6.3 | DAQ2-65*55*6.3 | 53.64*2.62 |
80 | 67 | 8.3 | DAQ2-80*67*8.3 | 66.27*3.53 |
95 | 82 | 8.3 | DAQ2-95*82*8.3 | 78.97*3.53 |
110 | 97 | 8.3 | DAQ2-110*97*8.3 | 94.84*3.53 |
125 | 112 | 8.3 | DAQ2-125*112*8.3 | 110.72*3.53 |
140 | 122 | 12.3 | DAQ2-140*122*12.3 | 120.02*5.33 |
Company Features
1. Dms Seals Technology Co.,limited is a best manufacturer and trader of with a long history of delivering top value for customers. Dms Seals Technology Co.,limited is a professional company engaged in the R&D, design, and manufacturing of for many years. Over the past years, Dms Seals Technology Co.,limited has been supplying high quality and related products that are manufactured in China. Owning strong capabilities in manufacturing , Dms Seals Technology Co.,limited is an outstanding manufacturer that integrates R&D, production, and supply. Dms Seals Technology Co.,limited is the world's leading supplier and manufacturer.
2. By virtue of advanced technology, Dms Seals Technology Co.,limited successfully expand wider market. Dms Seals Technology Co.,limited owns acres of production parks. Dms Seals Technology Co.,limited has advanced production equipment and a group of experienced bucket cylinder seal kit technology engineers. With its advanced production equipment, Dms Seals Technology Co.,limited's production quality is up to the international standards. Dms Seals Technology Co.,limited takes pride in its technology.
3. As an experienced manufacturer of hydraulic piston seals suppliers , we will surely satisfy you. Get quote! We guarantee the quality of our hydraulic cylinder packing replacement will satisfy you. Get quote! With rich experience in manufacturing pneumatic seal kit , we can guarantee the high quality. Get quote! Dms Seals Technology Co.,limited upholds the true needs to every customer and aims to produce perfect hydraulic sealing solutions . Get quote!
