New hydraulic cylinder piston seals with ptfe nbr and pom for pneumatic equipment
1. During the production, the quality of DMS Seal Manufacturer is strictly scrutinized in terms of materials, cutting, welding, turning, milling, grinding, and surface treatment. As a modern sealing technology company, DMS Seal manufacturer has a wealth of experience
2. The product is becoming more famous over the years due to its huge economic benefits. DMS Seals provides professional design and production of high-grade o-ring seals
3. It has high-quality fiber that wicks moisture away. This properly helps regulate body temperature, thus providing a superior sleep experience. Quality control of the seals is the basis for DMS Seals
4. The product features the desired operation safety. During its operation, it is not prone to electrical hazards such as short circuit and current leakage. DMS O Ring Manufacturers strictly follows the ISO9001 international quality certification system for production management
Bore Diameter DN H9 | Groove Diameter | Groove Width | Radius | Radial Clearance S max. | O-Ring Cross-Section | ||||
Standard Application | Light Application | Heavy Duty Application | d1 h9 | L1+0.2 | R1 | 10MPa | 20MPa | 40MPa | d2 |
8-16.9 | 17-26.9 | -- | DN-4.9 | 2.2 | 0.4 | 0.30 | 0.20 | 0.15 | 1.78 |
17-26.9 | 27-59.9 | -- | DN-7.3 | 3.2 | 0.6 | 0.40 | 0.25 | 0.15 | 2.62 |
27-59.9 | 60-199.9 | 17-26.9 | DN-10.7 | 4.2 | 1.0 | 0.50 | 0.30 | 0.20 | 3.53 |
60-199.9 | 200-255.9 | 27-59.9 | DN-15.1 | 6.3 | 1.3 | 0.70 | 0.40 | 0.25 | 5.33 |
200-255.9 | 256-669.9 | 60-199.9 | DN-20.5 | 8.1 | 1.8 | 0.80 | 0.60 | 0.35 | 7.00 |
256-669.9 | 670-999.9 | 200-669.9 | DN-24.0 | 8.1 | 1.8 | 0.90 | 0.70 | 0.40 | 7.00 |
670-999.9 | -- | 256-669.9 | DN-28.0 | 9.5 | 2.5 | 1.00 | 0.80 | 0.60 | 8.40 |
-- | 1000-2000 | -- | DN-28.0 | 9.5 | 2.5 | 1.00 | 0.80 | 0.60 | 8.40 |
-- | -- | 670-999.9 | DN-38.0 | 13.8 | 3.0 | 1.20 | 0.90 | 0.60 | 12.00 |
1000-2700 | -- | -- | DN-38.0 | 13.8 | 3.0 | 1.20 | 0.90 | 0.60 | 12.00 |

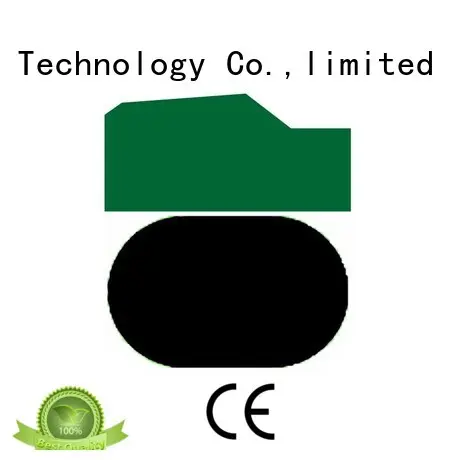

Application and properties
Standard single acting sealing. Suitable for reciprocating environment, allowing larger extrusion clearances, has wide application. Dynamic and static sealing property are good, be able to work in dusty condition. Low friction, simple groove, strong adaptability to work conditions.
Standard materials
Sealing ring: filled PTFE
O-ring: NBR / FKM
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-60MPa | -45℃ +200℃ | 15 m/s | hydraulic oil, flame retardant liquid, water and others |
Bore Dia. | Groove Dia. | Width | Order No. | O-ring Dimension |
D H9 | d1 h9 | L1+0.2 | ||
9 | 4.1 | 2.2 | GSD9*4.1*2.2 | 3.68*1.78 |
15 | 10.1 | 2.2 | GSD15*10.1*2.2 | 9.25*1.78 |
20 | 12.7 | 3.2 | GSD20*12.7*3.2 | 12.37*2.62 |
27 | 16.3 | 4.2 | GSD27*16.3*4.2 | 15.47*3.53 |
32 | 24.7 | 3.2 | GSD32*24.7*3.2 | 23.47*2.62 |
36 | 25.3 | 4.2 | GSD36*25.3*4.2 | 24*3.53 |
40 | 29.9 | 4.2 | GSD40*29.3*4.2 | 28.17*3.53 |
50 | 39.3 | 4.2 | GSD50*39.3*4.2 | 37.70*3.53 |
55 | 44.3 | 4.2 | GSD55*44.3*4.2 | 44.04*3.53 |
63 | 47.9 | 6.3 | GSD63*47.9*6.3 | 46.99*5.33 |
70 | 59.3 | 4.2 | GSD70*59.3*4.2 | 56.74*3.53 |
80 | 64.9 | 6.3 | GSD80*64.9*6.3 | 62.87*5.33 |
90 | 74.9 | 6.3 | GSD90*74.9*6.3 | 72.39*5.33 |
95 | 74.5 | 8.1 | GSD95*74.5*8.1 | 73*7.0 |
110 | 94.9 | 6.3 | GSD110*94.9*6.3 | 91.44*5.33 |
Company Features
1. DMS Seal Manufacturer is a well renowned prestigious hydraulic cylinder piston seals brands in China.
2. Authoritative institutions have tested quality of o-ring seal .
3. Dms Seals Technology Co.,limited will continue to enhance the core competitiveness of enterprises. Check now!
