New packing seal design Suppliers for agricultural machinery
- Dms Seals has built a service system that meets the needs of consumers. It has won wide acclaim and support from customers.
1. DMS Seal Manufacturer has gone through a series of tests. These tests include an electrical testing, high current bond test, insulation test, leakage current test, and load test.
2. DMS Seal Manufacturer is produced complying with the requirements stipulated in the bathroom ware industry. It will be strictly scrutinized in terms of surface flaws, seaming quality, luster, temperature resistance capability, etc.
3. DMS Seal Manufacturer has been carefully inspected. It has passed the checks on obvious damage or defects in the accessories, connectors, plugs or extension outlet sockets.
4. DMS Seal Manufacturer has been tested. It is tested and certified by the National Sanitation for Food Safety and Food Contact under the NSF 51 Certification.
5. packing seal design has the superiority such as as compared with other similar products.
6. As might be expected, packing seal design have the characteristics of .
7. packing seal design , with features like , is kind of ideal .
8. packing seal design produced by our company has the advantage over the others on .
9. The development prospects of this product are recognized by most customers.
10. Dms Seals Technology Co.,limited has advanced production equipment, sophisticated detection methods and quality assurance system.
11. This product provides various usage options.
Rod Diameter | Groove Diameter | Groove Width | Bore Diameter | Radius | Step Width |
d f8/h9 | D H9 | L+0.2 | D1±0.1 | R | a |
20-39.9 | d+7.6 | 4.2 | d+1.0 | 0.4 | 3.0 |
40-69.9 | d+8.8 | 6.3 | d+1.5 | 1.0 | 3.0 |
70-139.9 | d+12.2 | 8.1 | d+2.0 | 1.2 | 4.0 |
140-399.9 | d+16.0 | 11.5 | d+2.0 | 2.0 | 5.0 |
400-649.9 | d+24.0 | 15.5 | d+2.5 | 2.5 | 8.0 |
650-999.9 | d+27.3 | 18.0 | d+2.5 | 2.5 | 10.0 |
Application and properties

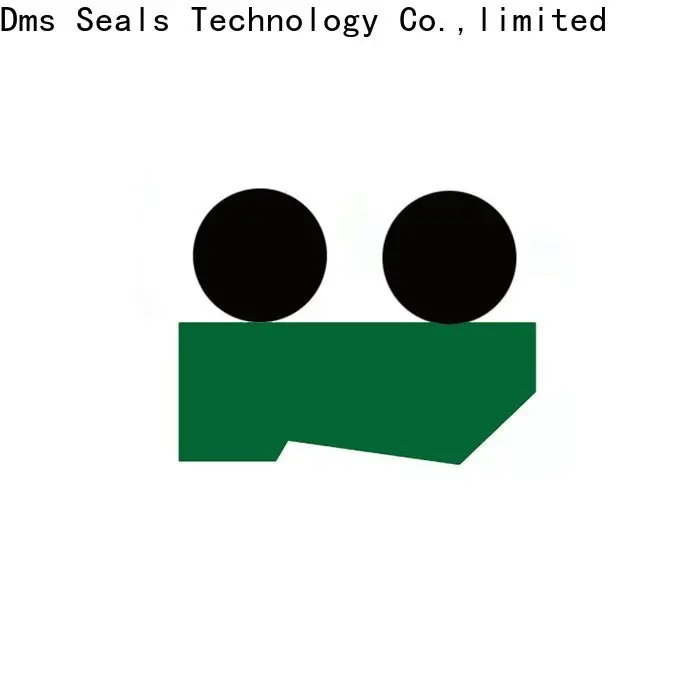

For a wide range of applications, such as agricultural machinery, injection molding machines, forklifts, cranes and so on. Consisting of a sealing ring and two O-Rings for improving overall tightness, low friction, non stick slip phenomenon, good adjustment and positioning ability, high reliability, accepting the full load of work pressure in a short time.
Standard materials
Sealing ring: filled PTFE / PU
O-Ring: NBR / FKM
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | -36℃+200℃ | 5 m/s | hydraulic oil, flame retardant liquid, water and others | |
d f8 | D H9 | H | L+0.2 | Order No. |
20 | 27.6 | 4.0 | 4.2 | DPT1-20*27.6*4.2 |
30 | 37.6 | 4.0 | 4.2 | DPT1-30*37.6*4.2 |
36 | 43.6 | 4.0 | 4.2 | DPT1-36*43.6*4.2 |
45 | 53.8 | 6.0 | 6.3 | DPT1-45*53.8*6.3 |
56 | 64.8 | 6.0 | 6.3 | DPT1-56*64.8*6.3 |
65 | 73.8 | 6.0 | 6.3 | DPT1-65*73.8*6.3 |
80 | 92.2 | 7.7 | 8.1 | DPT1-80*92.2*8.1 |
95 | 107.2 | 7.7 | 8.1 | DPT1-95*107*8.1 |
110 | 122.2 | 7.7 | 8.1 | DPT1-110*122*8.1 |
Company Features
1. Dms Seals Technology Co.,limited is known for its strong capability for designing and manufacturing and has been widely accepted in the industry. Dms Seals Technology Co.,limited has gained years of expertise in the developing, designing, and manufacturing of . We enjoy a good reputation in the industry. Dms Seals Technology Co.,limited is one of the leading companies that provides professional support for the development and manufacturing of . As an excellent company embarking on the design and production of , Dms Seals Technology Co.,limited has become a professional manufacturer and supplier. Dms Seals Technology Co.,limited has become a famous manufacturer with market recognition. We are experienced at the forefront of R&D and manufacture of .
2. Applying the high technology is conducive to the efficient production of packing seal design . Dms Seals Technology Co.,limited introduced advanced technology of u cup seal for piston . DMS Seal Manufacturer has mature production process, excellent production team and strict quality control system. DMS Seal Manufacturer has been operated under the standardized quality management system. Dms Seals Technology Co.,limited has internationally leading quality control capabilities and good brand reputation.
3. We aim to provide you the perfect one-stop services from inquiry to after-sales. Get info! Our common wish is to become one of the most influential rod wiper seals supplier in this market. Get info! DMS Seal Manufacturer strives to create value for the customers in the long run. Get info!
New packing seal design Suppliers for agricultural machinery
packing seal design
Type:
Professional O Ring Suppliers & O Ring Manufacturers
