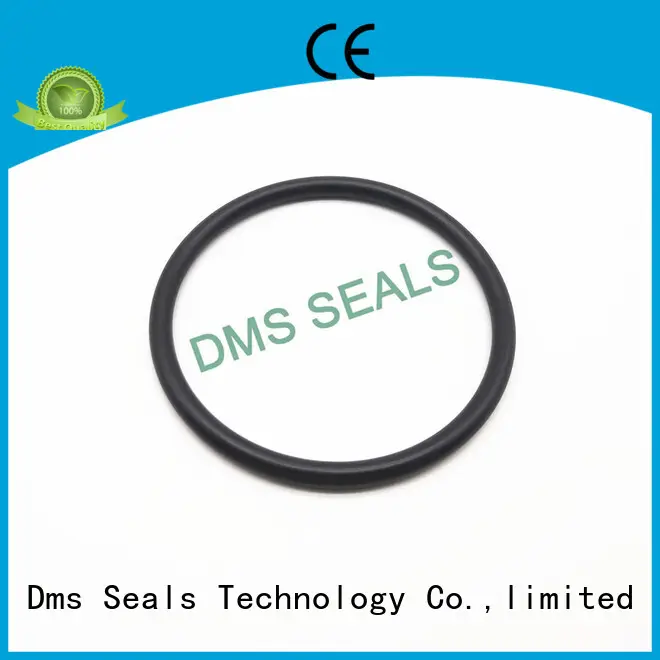

nitrile o ring seal supplier in highly aggressive chemical processing
1. All raw materials of DMS Seal Manufacturer undergo rigorous quality checks.
2. DMS Seal Manufacturer is manufactured using premium raw materials from reliable vendors.
3. DMS Seal Manufacturer is monitored throughout the production process.
4. During the process of DMS Seal Manufacturer , we adopts advanced production technology.
5. The good thing about this product is that it does not corrode. It has coatings that provide a robust level of protection against corrosion for surface operating in highly corrosive environments.
6. The product is weather-resistant. With its structural soundness, it can resist heavy rain or moist ground and heft a substantial snow load.
7. The product features heat resistance. Mica components have been used to enhance its structure with its natural and structural stability.
8. In Dms Seals Technology Co.,limited, our specialist will estimate your needs, identify potential problems and recommend a cost-effective solution.
9. After putting quality-oriented into operation, DMS Seal Manufacturer has gained much more fame than before.
10. Dms Seals Technology Co.,limited has years of R&D and production experience for o ring seal supplier.
1. Installation Recommendation
2. Application and properties
Double acting seals, the sealing effect is achieved by the deformation of the section of the O-Rings, and the deformation is determined by the depth of the installation groove. Under pressure, the O-ring has a large surface tension like liquid, used for static sealing more. It is only recommended for better conditions in dynamic applications. System lubrication, pressure, temperature, sealing clearance, speed, medium and surface quality of metal parts determine the service life of O-Rings. It is not recommended if the lubrication is not sufficient during rotary motion.
3. Standard materials
NBR / FKM
4. Performance parameter
Static Seal | Dynamic Seal | |
Working Pressure | No support ring, up to 20MPa; With the support ring, up to 40MPa; With special support ring, up to 200MPa. | No support ring, up to 5MPa; With the support ring, higher pressure. |
Movement Speed | Maximum reciprocating speed up to 0.5m / s; maximum rotation speed up to 2.0m/s. | |
Temperature | NBR: -30℃ - 100℃; FKM: -20℃ - 220℃. | |
5. Wire Diameter Tolerance
Wire diameter of O-Ring (mm) | Tolerance (±mm) |
0-1.8 | 0.08 |
1.80-2.65 | 0.09 |
2.65-3.55 | 0.10 |
3.55-5.30 | 0.13 |
5.30-7.00 | 0.15 |
7.00-8.00 | 0.18 |
8.00-10.00 | 0.21 |
10.00-12.00 | 0.25 |
6. Inner diameter tolerance
Inner Diameter d1 mm | Tolerance ±mm | Inner Diameter d1 mm | Tolerance ±mm | Inner Diameter d1 mm | Tolerance ±mm |
0.70-2.50 2.50-4.50 4.50-6.30 | 0.13 0.14 0.15 | 43.70-45.00 46.00-46.20 46.20-47.50 | 0.42 0.43 0.44 | 95.00-97.50 97.50-100.00 100.00-103.00 | 0.83 0.84 0.87 |
6.30-8.50 8.50-10.00 10.00-11.20 | 0.16 0.17 0.18 | 47.50-48.70 48.70-50.00 50.00-51.50 | 0.45 0.46 0.47 | 103.00-106.00 106.00-109.00 109.00-112.00 | 0.89 0.91 0.93 |
11.20-14.00 14.00-16.00 16.00-18.00 | 0.19 0.20 0.21 | 51.50-53.00 53.00-54.50 54.50-56.00 | 0.48 0.50 0.51 | 112.00-115.00 115.00-118.00 118.00-122.00 | 0.95 0.97 1.00 |
18.00-20.00 20.00-21.20 21.20-23.60 | 0.22 0.23 0.24 | 56.00-58.00 58.00-60.00 60.00-61.50 | 0.52 0.54 0.55 | 122.00-125.00 125.00-128.00 128.00-132.00 | 1.03 1.05 1.08 |
23.60-25.00 25.00-26.50 26.50-28.00 | 0.25 0.26 0.28 | 61.50-63.00 63.00-65.00 65.00-67.00 | 0.56 0.58 0.59 | 132.00-136.00 136.00-140.00 140.00-145-00 | 1.10 1.13 1.17 |
28.00-30.00 30.00-31.50 31.50-33.50 | 0.29 0.31 0.32 | 67.00-69.00 69.00-71.00 71.00-73.00 | 0.61 0.63 0.64 | 145.00-150.00 150.00-155.00 155.00-160.00 | 1.20 1.24 1.27 |
33.50-34.50 34.50-35.50 35.50-36.50 | 0.33 0.34 0.35 | 73.00-75.00 75.00-77.50 77.50-80.00 | 0.66 0.67 0.69 | 160.00-165.00 165.00-170.00 170.00-175.00 | 1.31 1.34 1.38 |
36.50-37.50 37.50-38.70 38.70-40.00 | 0.36 0.37 0.38 | 80.00-82.50 82.50-85.00 85.00-87.50 | 0.71 0.73 0.75 | 175.00-180.00 180.00-185.00 185.00-190.00 | 1.41 1.44 1.48 |
40.00-41.20 41.20-42.50 42.50-43.70 | 0.39 0.40 0.41 | 87.50-90.00 90.00-92.50 92.50-95.00 | 0.77 0.79 0.81 | 190.00-195.00 195.00-200.00 200.00-206.00 | 1.51 1.55 1.59 |
206.00-212.00 212.00-218.00 224.00-230.00 | 1.63 1.71 1.75 | 325.00-335.00 335.00-345.00 345.00-355.00 | 2.43 2.49 2.56 | 500.00-515.00 515.00-530.00 530.00-545.00 | 3.54 3.63 3.72 |
230.00-236.00 236.00-243.00 243.00-250.00 | 1.79 1.83 1.88 | 355.00-365.00 365.00-375.00 375.00-387.00 | 2.62 2.68 2.76 | 545.00-560.00 560.00-580.00 580.00-600.00 | 3.81 3.93 4.05 |
250.00-258.00 258.00-265.00 265.00-272.00 | 1.93 1.98 2.02 | 387.00-400.00 400.00-412.00 412.00-425.00 | 2.84 2.91 2.99 | 600.00-615.00 615.00-630.00 630.00-650.00 | 4.13 4.22 4.34 |
272.00-280.00 280.00-290.00 290.00-300.00 | 2.08 2.14 2.21 | 425.00-437.00 437.00-450.00 450.00-462.00 | 3.07 3.15 3.22 | 650.00-670.00 | 4.46 |
300.00-307.00 307.00-315.00 315.00-325.00 | 2.25 2.30 2.37 | 462.00-475.00 475.00-485.00 485.00-500.00 | 3.30 3.37 3.45 |
Company Features
1. With a good company image and market reputation, Dms Seals Technology Co.,limited has become a major player in the R&D, production, and marketing of . Over the years, Dms Seals Technology Co.,limited has grown into a global manufacturer and supplier of o ring seal supplier. We mainly focus on the design, production, and marketing. Dms Seals Technology Co.,limited has been focusing on development, design, production, and sales for many years. We have had a presence in the market. With a wealth of R&D and manufacturing experience in , Dms Seals Technology Co.,limited has been one of the most reliable manufacturers in the global industry.
2. Our research and development team is well equipped with intimate expertise and industry know-how. Before a new product is developed, the team will conduct an evaluation of the need for the product to ensure whether it is the product that our customers need. The wide variety of professional person drives our competitiveness. Their technical and business know-how enable the company to support customers in the most demanding areas successfully. With a strong R & D team and advanced technology, Dms Seals Technology Co.,limited could provide professional technical support and quality products. Our production plant is formed by our own proprietary equipment, which allows us great flexibility to offer our customers specifications according to their needs.
3. We encourage a high performing culture that respects our corporate values through our diverse and dedicated workforce. So they can help promote our business. We continuously improve the corporate environmental management system. We attach great importance to water conservation, and actively promote water-saving equipment and water-saving concepts. One of our main priorities is to generate greater value for our customers and continue expanding the business between us. We achieve sustainable development by reducing production waste. We continuously seek to reuse and recycle by-products or convert them back into useful energy when recycling is not possible.
nitrile o ring seal supplier in highly aggressive chemical processing
o ring seal supplier
Type:
Professional O Ring Suppliers & O Ring Manufacturers
