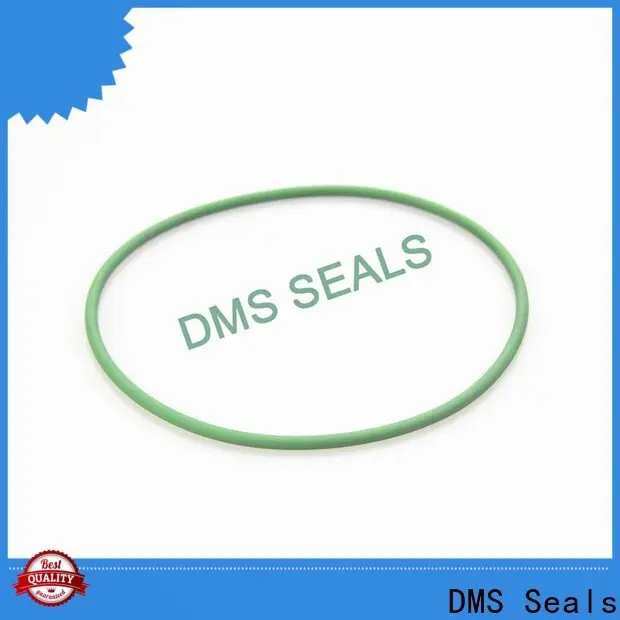

nitrile silicone o ring seal for sale for static sealing

Company Advantages
1. It is the experienced design team that our silicone o ring seal are ingenious.
2. Paying close attention to the design of silicone o ring seal is good for the DMS Seals advertising.
3. DMS Seals is manufactured by the precision machining equipment.
4. Our silicone o ring seal designed for foreign customers are all unique and very successful.
5. All materials of DMS Seals are strictly tested in conformity with the international standards.
6. The product brings optimized dehydrating effect. The hot wind of the circulation is able to penetrate into each side of each piece of the food, without affecting its original luster and flavors.
7. It is not subject to color fading even it is exposed to UV light or strong sunlight for a long period. Some dye-fixing agent has been infused in its coloring agent before dying.
8. The product features exceptional weather resistance. It can resist the damaging effects of UV light, ozone, O2, weather, moisture, and steam.
9. The product has a stable and reliable performance. Some chemical stabilizer is added to its materials to enhance its overall stability.
10. The product features a good purifying effect. It can effectively remove bacteria, viruses, microorganisms, granules, heavy metals, etc.
11. Dms Seals Technology Co.,limited ensures that the products are flawless and trouble-free before leaving the factory and give customers better quality assurance.
12. The international market has already occupied a relatively big share of Dms Seals Technology Co.,limited's overall sales.
13. Dms Seals Technology Co.,limited integrates R&D, production, sales and technical services.
14. Dms Seals Technology Co.,limited strictly performs in the aspects of product quality, delivery time and after-sales service.
15. DMS Seals dealers provide customers with high-quality DMS Seals products and professional services.

1. Installation Recommendation

2. Application and properties

Double acting seals, the sealing effect is achieved by the deformation of the section of the O-Rings, and the deformation is determined by the depth of the installation groove. Under pressure, the O-ring has a large surface tension like liquid, used for static sealing more. It is only recommended for better conditions in dynamic applications. System lubrication, pressure, temperature, sealing clearance, speed, medium and surface quality of metal parts determine the service life of O-Rings. It is not recommended if the lubrication is not sufficient during rotary motion.

3. Standard materials

NBR / FKM

4. Performance parameter

	Static Seal	Dynamic Seal
Working Pressure	No support ring, up to 20MPa; With the support ring, up to 40MPa; With special support ring, up to 200MPa.	No support ring, up to 5MPa; With the support ring, higher pressure.
Movement Speed	Maximum reciprocating speed up to 0.5m / s; maximum rotation speed up to 2.0m/s.
Temperature	NBR: -30℃ - 100℃;  FKM: -20℃ - 220℃.

5. Wire Diameter Tolerance

Wire diameter of O-Ring (mm)	Tolerance (±mm)
0-1.8	0.08
1.80-2.65	0.09
2.65-3.55	0.10
3.55-5.30	0.13
5.30-7.00	0.15
7.00-8.00	0.18
8.00-10.00	0.21
10.00-12.00	0.25



6. Inner diameter tolerance

Inner Diameter d1 mm	Tolerance ±mm	Inner Diameter d1 mm	Tolerance ±mm	Inner Diameter d1 mm	Tolerance ±mm
0.70-2.50 2.50-4.50 4.50-6.30	0.13 0.14 0.15	43.70-45.00 46.00-46.20 46.20-47.50	0.42 0.43 0.44	95.00-97.50 97.50-100.00 100.00-103.00	0.83 0.84 0.87
6.30-8.50 8.50-10.00 10.00-11.20	0.16 0.17 0.18	47.50-48.70 48.70-50.00 50.00-51.50	0.45 0.46 0.47	103.00-106.00 106.00-109.00 109.00-112.00	0.89 0.91 0.93
11.20-14.00 14.00-16.00 16.00-18.00	0.19 0.20 0.21	51.50-53.00 53.00-54.50 54.50-56.00	0.48 0.50 0.51	112.00-115.00 115.00-118.00 118.00-122.00	0.95 0.97 1.00
18.00-20.00 20.00-21.20 21.20-23.60	0.22 0.23 0.24	56.00-58.00 58.00-60.00 60.00-61.50	0.52 0.54 0.55	122.00-125.00 125.00-128.00 128.00-132.00	1.03 1.05 1.08
23.60-25.00 25.00-26.50 26.50-28.00	0.25 0.26 0.28	61.50-63.00 63.00-65.00 65.00-67.00	0.56 0.58 0.59	132.00-136.00 136.00-140.00 140.00-145-00	1.10 1.13 1.17
28.00-30.00 30.00-31.50 31.50-33.50	0.29 0.31 0.32	67.00-69.00 69.00-71.00 71.00-73.00	0.61 0.63 0.64	145.00-150.00 150.00-155.00 155.00-160.00	1.20 1.24 1.27
33.50-34.50 34.50-35.50 35.50-36.50	0.33 0.34 0.35	73.00-75.00 75.00-77.50 77.50-80.00	0.66 0.67 0.69	160.00-165.00 165.00-170.00 170.00-175.00	1.31 1.34 1.38
36.50-37.50 37.50-38.70 38.70-40.00	0.36 0.37 0.38	80.00-82.50 82.50-85.00 85.00-87.50	0.71 0.73 0.75	175.00-180.00 180.00-185.00 185.00-190.00	1.41 1.44 1.48
40.00-41.20 41.20-42.50 42.50-43.70	0.39 0.40 0.41	87.50-90.00 90.00-92.50 92.50-95.00	0.77 0.79 0.81	190.00-195.00 195.00-200.00 200.00-206.00	1.51 1.55 1.59
206.00-212.00 212.00-218.00 224.00-230.00	1.63 1.71 1.75	325.00-335.00 335.00-345.00 345.00-355.00	2.43 2.49 2.56	500.00-515.00 515.00-530.00 530.00-545.00	3.54 3.63 3.72
230.00-236.00 236.00-243.00 243.00-250.00	1.79 1.83 1.88	355.00-365.00 365.00-375.00 375.00-387.00	2.62 2.68 2.76	545.00-560.00 560.00-580.00 580.00-600.00	3.81 3.93 4.05
250.00-258.00 258.00-265.00 265.00-272.00	1.93 1.98 2.02	387.00-400.00 400.00-412.00 412.00-425.00	2.84 2.91 2.99	600.00-615.00 615.00-630.00 630.00-650.00	4.13 4.22 4.34
272.00-280.00 280.00-290.00 290.00-300.00	2.08 2.14 2.21	425.00-437.00 437.00-450.00 450.00-462.00	3.07 3.15 3.22	650.00-670.00	4.46
300.00-307.00 307.00-315.00 315.00-325.00	2.25 2.30 2.37	462.00-475.00 475.00-485.00 485.00-500.00	3.30 3.37 3.45

Company Features
1. DMS Seals is the world's popular silicone o ring seal supplier. Dms Seals Technology Co.,limited is fully committed to 005 o ring research and development, production and service. Dms Seals Technology Co.,limited is an extraordinary flat rubber seal ring manufacturer at home and abroad. Dms Seals Technology Co.,limited is positioned as a leading manufacturer of 6mm rubber o rings . Dms Seals Technology Co.,limited is a preferred manufacturer of 1 2 inch rubber o ring with steady quality and steady price.
2. The factory carries out strict quality and production management control systems. These systems require all of the incoming materials, parts, production techniques, and packaging ways to be tested and controlled to meet standards. After devoting much effort in expanding markets, We have formed a strong customer base overseas. There are still many many customers are looking forward to establishing business cooperations with us according to the statistics we have. Our factory has adopted a series of production facilities. These machines run smoothly and allow our workers to quickly complete production tasks and greatly guarantee monthly output. Currently, we have a sales network covering many countries around the world, and the number is growing every day. We are strengthening our R&D capability to invent and develop more distinctive and targeted products. Our quality assurance specialists ensure our product quality. With their years of record for maintaining high standards of excellence in quality assurance, they help us to meet the requirements of our customers.
3. Dms Seals Technology Co.,limited actively implemented the strategies. Inquire! DMS Seals entrepreneurs must strive to achieve the goals of the world's brown viton o ring pioneers! Inquire! Following the trend of o ring cord manufacturer has been always something DMS Seals sticks to. Inquire! Our service team in Dms Seals Technology Co.,limited is well-trained so as to provide satisfying service for customers. Inquire! Dms Seals Technology Co.,limited has demonstrated a good image of social responsibility. Inquire!
