o-ring seal with nbr or fkm o ring for pneumatic equipment
1. In order to follow the trends, Dms Seals Technology Co.,limited adopts the novel design for o-ring seal. As a modern sealing technology company, DMS Seal manufacturer has a wealth of experience
2. Replied on decade of experience in o-ring seal production, DMS Seal Manufacturer is widely recognized. DMS Seals manufacturer owns a team of professional R&D group and skilled technicians
3. Teat results prove that the o-ring seal with hydraulic cylinder piston seals is hydraulic piston seals suppliers . The R&D teams have the ability to design and develop seals for various of complicated working condition of sealing system
1. Installation Recommendation
2. Application and properties

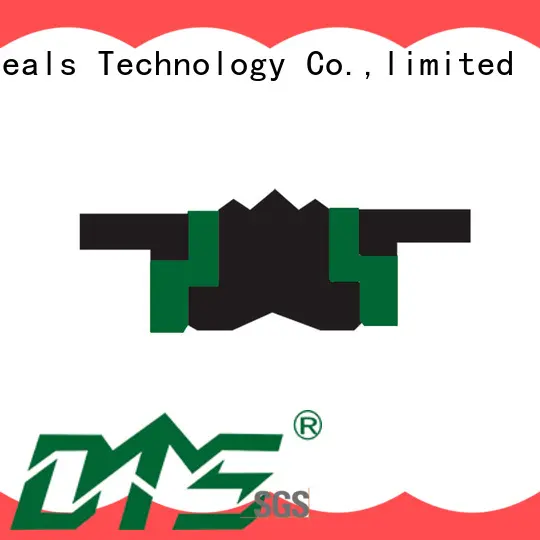

DBM/TPM is a double acting sealing and guiding element, Consisting of an elastomer, two back-up rings and two guide rings. Dynamic and static properties of the elastomer play a good sealing role, The back-up ring prevents the elastomer from being squeezed into the sealing gap, the function of the guide ring is to guide the piston in the cylinder and absorb the radial force. The sealing is mainly used for piston and hydraulic cylinder, such as bulldozers, excavators, loaders, hydraulic gates and agricultural machinery.
3. Standard materials
Guide ring: filled PTFE / PA
Back-up ring: TPU polymer
Elastomer: NBR
4. Working Conditions
| Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-35MPa | -30℃+120℃ | 0.5 m/s | petroleum base hydraulic oil，nonflammable hydraulic oil, environmental protection hydraulic oil |
Cylinder Dia. | Groove Size | Order No. | ||||
DN H9 | d1 | L1 +0.2 | d2 h9 | d3 h11 | L2 +0.1 | |
20 22 25 | 11 13 15 | 13.5 13.5 12 | 17 19 21 | 19 21 23 | 2.1 2.1 4 | TPM20*11*13.5*2.1 TPM22*13*13.5*2.1 TPM25*15*12*4 |
25 25 25 | 15 15 16 | 12.5 16.4 13.5 | 22 21.45 22 | 24 23.5 24 | 4 6.35 2.1 | TPM25*15*12.5*4 TPM25*15*16.4*6.35 TPM25*16*13.5*2.1 |
28 30 30 | 19 17 21 | 13.5 15.4 13.5 | 25 26.5 27 | 27 28.5 29 | 2.1 6.35 2.1 | TPM28*19*13.5*2.1 TPM30*17*15.4*6.35 TPM30*21*13.5*2.1 |
32 32 35 | 22 22 25 | 15.5 16.4 15.5 | 28 28.5 31 | 31 30.5 34 | 2.6 6.35 2.6 | TPM32*22*15.5*2.6 TPM32*22*16.4*6.35 TPM35*25*15.5*2.6 |
35 40 40 | 25 24 26 | 16.4 18.4 15.5 | 31.4 35.4 36 | 33.5 38.5 39 | 6.35 6.35 2.6 | TPM35*25*16.4*6.35 TPM40*24*18.4*6.35 TPM40*26*15.5*2.6 |
40 40 40 | 30 30 30 | 12.5 12.5 16.4 | 36 37 35.4 | 38 39 38.5 | 4 4 6.35 | TPM40*30*12.5*4 TPM40*30*12.5*4 TPM40*30*16.4*6.35 |
42 45 45 | 28 29 31 | 15.5 18.4 15.5 | 38 40.4 41 | 41 43.5 44 | 2.6 6.35 2.6 | TPM42*28*15.5*2.6 TPM45*29*18.4*6.35 TPM45*31*15.5*2.6 |
45 50 50 | 35 34 34 | 16.4 18.4 20.5 | 40.4 45.4 46 | 43.5 48.5 49 | 6.35 6.35 3.1 | TPM45*35*16.4*6.35 TPM50*34*18.4*6.35 TPM50*34*20.5*3.1 |
55 55 56 | 39 39 40 | 18.4 20.5 20.5 | 50.36 51 52 | 53.5 54 55 | 6.35 3.1 3.1 | TPM55*39*18.4*6.35 TPM55*39*20.5*3.1 TPM56*40*20.5*3.1 |
60 60 63 | 44 44 47 | 18.4 20.5 18.4 | 55.4 56 58.4 | 58.5 59 61.5 | 6.35 3.1 6.35 | TPM60*44*18.4*6.35 TPM60*44*20.5*3.1 TPM63*47*18.4*6.35 |
63 63 65 | 47 47 49 | 19.4 20.5 20.5 | 58.4 59 61 | 61.5 62 64 | 6.35 3.1 3.1 | TPM63*47*19.4*6.35 TPM63*47*20.5*3.1 TPM65*49*20.5*3.1 |
65 70 70 | 50 50 54 | 18.4 22.4 20.5 | 60.4 64.2 66 | 63.5 68.3 69 | 6.35 6.35 3.1 | TPM65*50*18.4*6.35 TPM70*50*22.4*6.35 TPM70*54*20.5*3.1 |
