oil seal ring hydraulic nbrfkm bearing element manufacture

Company Advantages
1. oil seal ring is manufactured by our dexterous professionals using superior quality materials. DMS Seals provides professional design and production of high-grade o-ring seals
2. Apart from the advantage of shaft oil seals, our produced bearing element has some unparalleled dominance. DMS Seals' production equipment and test equipment are on the leading level in the industry
3. DMS Seals implements and optimizes its quality control systems. DMS Seal Manufacturer conducts strict quality testing from materials.
4. DMS Seal manufacturer provides good quality and competitive price hydraulic seals. DMS Seal Manufacturer will take serious attitude to complaints of our oil seal manufacturer,rubber seal design if there is any.

1. Installation Recommendation

2. Application and properties

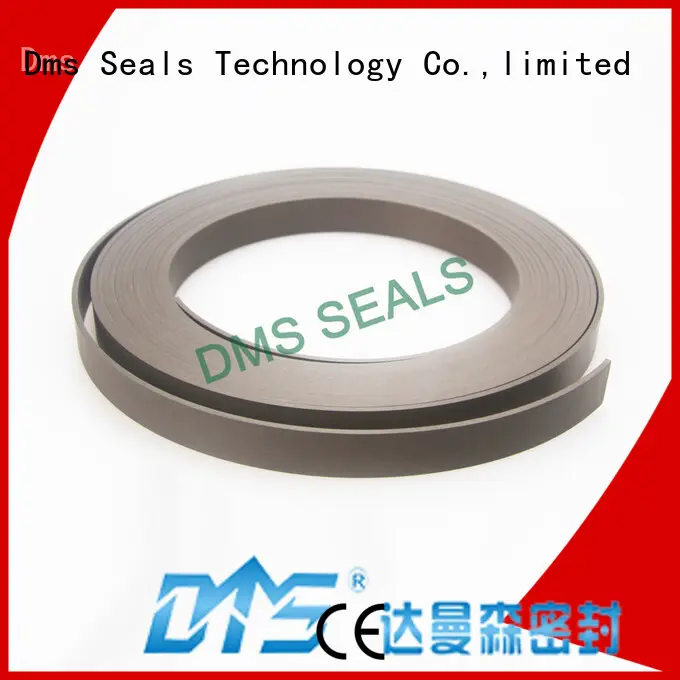

Applicable to the guiding of piston and piston rod of hydraulic cylinder and air cylinder, has the function of supporting and guiding. The guide strips with the thickness which equal to or greater than 2mm, double sided embossing could be provided, the embossing structure is conducive to the formation of lubrication micro-pit, improve micro lubrication, at the same time, it is helpful to embed tiny foreign objects and protect the sealing system.



3. Standard materials

Filled PTFE



4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
Custom as Required	—	-55℃ +225℃	15 m/s	hydraulic oil, emulsion, and water

Piston:  L=C × ( D - W ) - k [ mm ] D = Piston Dia. [ mm ] W = Thickness [ mm ]

Rod:    L=C × ( d + W ) - k [ mm ] d = Rod Dia. [ mm ]  C = 3.14  k=0.8



5. Length of whole roll

Thickness	1	1.5	2	2.5	3	4	5	6
Length of whole roll ( m )	55	35	27	22	18	13	10	8

Above data only for reference, it shall follow the actual products.

Standard groove width

Groove width L2

2.5

3.2

4

4.2

5.6

6

6.3

8.1

9.7

10

12

15

18

20

25

30

40

50

The products of various width could be provided.

Standard thickness of product

Thickness W

1

1.5

1.55

2

2.5

3

4

5

6

The products of various thickness could be provided.

Company Features
1. Dms Seals Technology Co.,limited, who started with high-end bearing element, has laid a solid foundation for quality.
2. The technical capabilities of Dms Seals Technology Co.,limited reach up to the advanced standards.
3. Dms Seals Technology Co.,limited will strive harder to meet customer needs. Please contact.
