1. High-end talents and advanced technology have enabled DMS o-ring seal quality to reach the industry's leading level. The hydraulic rod seals that is reinforced with piston rod seal composite is unique and in the hydraulic rod seals online machinery industry only to be found in DMS Seal Manufacturer.
2. 'Strictly abide by the contract and deliver promptly' is Dms Seals Technology Co.,limited's consistent principle. Our products mainly include rod seals, piston seals, scraper seals, rotary seals, rubber seal products and spring seals
3. A distinctive rod seal catalogue plays an important role in the high performance of rod seals. DMS Seals' production equipment and test equipment are on the leading level in the industry
Rod Diameter d e8 | Groove Diameter D H9 | Groove Width L D10 | H |
20-30 | d+8 | 7.5 | 7 |
31-35 | d+8 | 7.5 | 7 |
36-44 | d+8 | 8.5 | 8 |
45-55 | d+10 | 11.0 | 10 |
56-119 | d+15 | 13.0 | 12 |
120-319 | d+20 | 17.0 | 16 |
320-499 | d+30 | 21.0 | 20 |
＞499 | d+40 | 26.5 | 25 |

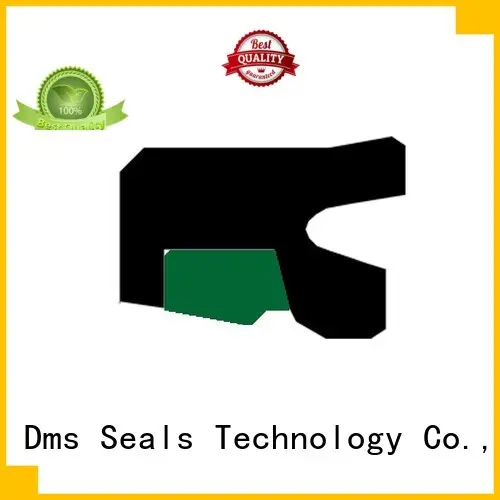

Application and properties
Applicable to hydraulic cylinder piston rod, generally used in conjunction with the guide sleeve. The special-shaped Y ring has the sealing function, provides the elasticity to the seal ring, and compensates for the abrasion. Wear-resisting, non stick slip phenomenon. It has a high stability under pressure and harsh conditions.
Sealing ring: filled PTFE
Y-ring: NBR / PU
O-ring: NBR / FKM
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-60MPa | -30℃ +100℃ | 1 m/s | Petroleum base hydraulic oil, nonflammable hydraulic fluid, water, and others. |
Rod Dia. | Outer Dia. | Groove Width | Order No. |
d e8 | D H9 | L D10 | |
20 | 28 | 7.5 | TDI20*28*7.5 |
25 | 33 | 7.5 | TDI25*33*7.5 |
32 | 40 | 7.5 | TDI32*40*7.5 |
40 | 48 | 8.5 | TDI40*48*8.5 |
47 | 57 | 11 | TDI47*57*11 |
52 | 62 | 11 | TDI52*62*11 |
60 | 75 | 13 | TDI60*75*13 |
68 | 78 | 13 | TDI68*78*13 |
75 | 90 | 13 | TDI75*90*13 |
85 | 100 | 13 | TDI85*100*13 |
95 | 110 | 13 | TDI95*110*13 |
100 | 120 | 15 | TDI100*120*15 |
115 | 126 | 16 | TDI115*126*16 |
125 | 145 | 17 | TDI125*145*17 |
140 | 155 | 18 | TDI140*155*18 |
155 | 175 | 17 | TDI155*175*17 |
170 | 190 | 17 | TDI170*190*17 |
185 | 205 | 17 | TDI185*205*17 |
220 | 240 | 17 | TDI220*240*17 |
240 | 260 | 17 | TDI240*260*17 |
280 | 300 | 17 | TDI280*300*17 |
500 | 540 | 26.5 | TDI500*540*26.5 |
