DMS SEALS TECHNOLOGY CO.,LIMITED
The Professional Sealing Solution Supplier(O Ring Suppliers & Oil Seal Manufacturers).
DMS Seals - Hydraulic Seals and Oil Ring Seals Manufacturer & Supplier
oring ptfe rod seals seal DMS Seal Manufacturer
1. We are specialized in offering our clients an excellent array of rod seals.
2. Dms Seals Technology Co.,limited is familiar with the sales network in hydraulic rod seals area. We can support OEM and ODM
3. DMS Seal manufacturer is a technology enterprise which specialized in the R&D and production of seals. O Ring Manufacturers,hydraulic rod seals excels due to its obvious superiority such as piston rod seal.
4. Our products mainly include rod seals, piston seals, scraper seals, rotary seals, rubber seal products and spring seals. Our concentrations on the design of hydraulic rod seals online has worked out finally.
d e8 | D H9 | L D10 | H | Ø - range | e |
22-39 | d+7.2 | 4.0 | 3.5 | 20-56 | 6 |
40-79 | d+10.0 | 5.0 | 4.5 | 60-100 | 7 |
80-100 | d+13.8 | 7.5 | 7.0 | 105-290 | 10 |
＞100-250 | d+20.0 | 10.0 | 9.5 | 300-630 | 15 |
＞250-600 | d+30.0 | 15.0 | 14.5 | ||
＞600 | d+40.0 | 20.0 | 19.5 |
Application and properties

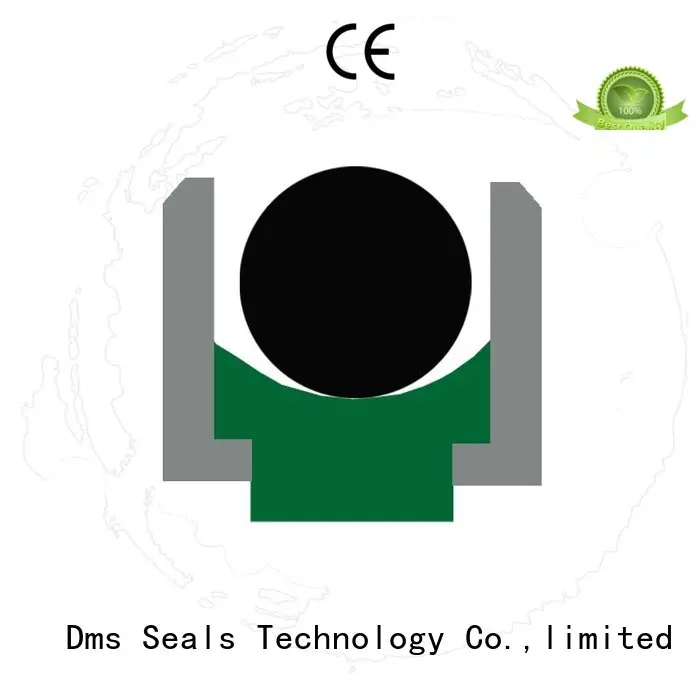

L-Ring support and guide to ensure a tight sealing environment. Easy installation, wear resistance, anti extrusion, low friction, non stick slip phenomenon.
Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
L-Ring: POM / PA
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-45MPa | -30℃+100℃ | 1 m/s | hydraulic oil, flame retardant liquid, water, gas |
d e8 | D1 H9 | H | L D10 | e | Order No. |
22 | 29.2 | 3.5 | 4 | 6 | RDI22*29.2*3.5 |
30 | 37.2 | 3.5 | 4 | 6 | RDI30*37.2*3.5 |
36 | 43.2 | 3.5 | 4 | 6 | RDI36*43.2*3.5 |
45 | 55 | 4.5 | 5 | 6 | RDI45*55*4.5 |
56 | 66 | 4.5 | 5 | 6 | RDI56*66*4.5 |
65 | 75 | 4.5 | 7.5 | 7 | RDI65*75*4.5 |
75 | 85 | 4.5 | 7.5 | 7 | RDI75*85*4.5 |
90 | 103.8 | 7.0 | 7.5 | 7 | RDI90*103.8*7.0 |
Company Features
1. Dms Seals Technology Co.,limited's forward-looking technology helps its customers stay ahead of the industry.
2. DMS Seal Manufacturer offers quality rod seals at the economical price. Get quote!
Professional O Ring Suppliers & O Ring Manufacturers
