ptfe hydraulic oring rod rod seals ptfe DMS Seal Manufacturer company

Company Advantages
1. Also, our clients can avail rod seals from us at an economical price range from us. DMS Seal manufacturer was established in 2008 and now has more than 10 years professional experience
2. DMS Seal Manufacturer also adopts eco-friendly materials to guarantee the zero pollution of hydraulic rod seals. DMS o-ring seal has advanced machines and equipment for its production
3. We can support OEM and ODM. O Ring Manufacturers,hydraulic rod seals is highly prized for its high performance and such qualities as piston rod seal.
4. We have become experts at identifying the core requirements for o-ring seal; Refining, simplifying and economising over complicated systems to be more reliable, efficient, maintainable and IP reinforcing. Our products mainly include rod seals, piston seals, scraper seals, rotary seals, rubber seal products and spring seals

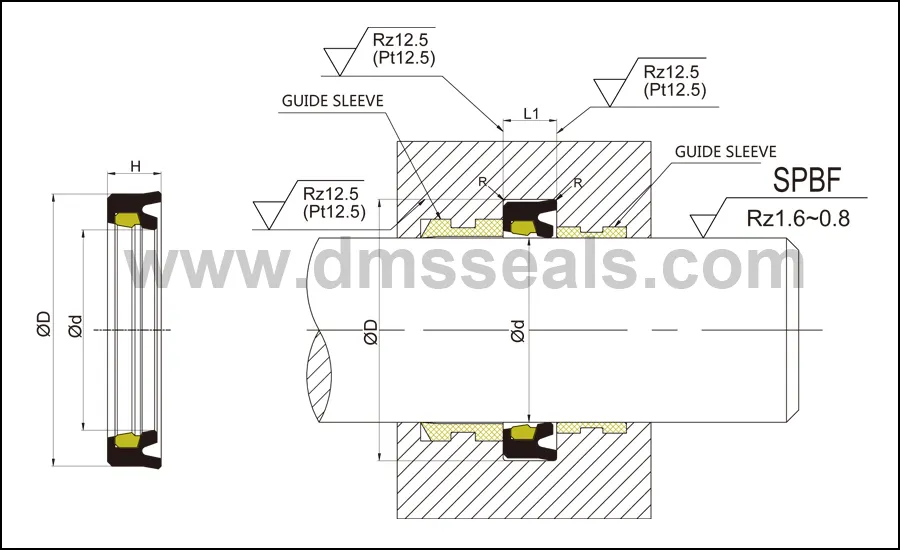

1. Installation Recommendation

2. Installation Sizes

Rod Diameter d e8	Groove Diameter D H9	Groove Width L D10	H
20-30	d+8	7.5	7
31-35	d+8	7.5	7
36-44	d+8	8.5	8
45-55	d+10	11.0	10
56-119	d+15	13.0	12
120-319	d+20	17.0	16
320-499	d+30	21.0	20
＞499	d+40	26.5	25

3. Application and properties

Applicable to hydraulic cylinder piston rod, generally used in conjunction with the guide sleeve. The special-shaped Y-Ring has the sealing function, provides the elasticity to the seal ring, and compensates for the abrasion. Wear-resisting, non stick slip phenomenon. It has a high stability under pressure and harsh conditions.

4. Standard materials

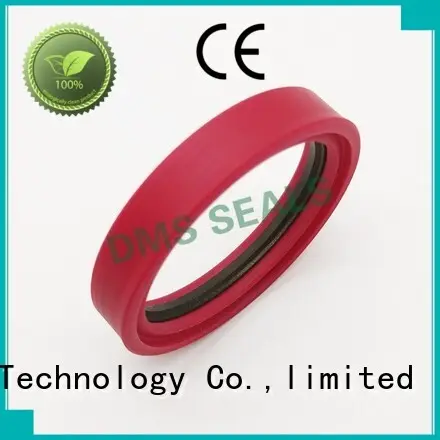

Sealing ring: filled PTFE

Y-Ring: NBR / PU

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-30℃ +100℃	1 m/s	Petroleum base hydraulic oil, nonflammable hydraulic fluid, water, and others.

6. Installation Dimensions

Rod Dia.	Outer Dia.	Groove Width	Order No.
d e8	D H9	L D10
20 22 23	28 30 31	7.5 7.5 7.5	TDI20*28*7.5 TDI22*30*7.5 TDI23*31*7.5
25 28 30	33 36 38	7.5 7.5 7.5	TDI25*33*7.5 TDI28*36*7.5 TDI30*38*7.5
32 35 36	40 43 44	7.5 7.5 8.5	TDI32*40*7.5 TDI35*43*7.5 TDI36*44*8.5
40 42 45	48 50 55	8.5 8.5 11	TDI40*48*8.5 TDI42*50*8.5 TDI45*55*11
47 48 50	57 58 60	11 11 11	TDI47*57*11 TDI48*58*11 TDI50*60*11
52 55 56	62 65 71	11 11 13	TDI52*62*11 TDI55*65*11 TDI56*71*13
60 63 65	75 78 80	13 13 13	TDI60*75*13 TDI63*78*13 TDI65*80*13
68 70 72	78 85 87	13 13 13	TDI68*78*13 TDI70*85*13 TDI72*87*13
75 80 83	90 95 98	13 13 13	TDI75*90*13 TDI80*95*13 TDI83*98*13

Company Features
1. Dms Seals Technology Co.,limited has the financial strength, established infrastructure, capacity, and technical expertise to support our customers today and in the future.
2. Dms Seals Technology Co.,limited has complete test measures and high-qualified employees.
3. Customer satisfaction is DMS Seal Manufacturer's ultimate pursuit.
