oring seal hydraulic DMS Seal Manufacturer Brand piston seals

Diameter Range:

3-1600mm

Pressure Range:

0-35MPa

Temperature Range:

-30℃+120℃

Speed:

0.5m/s

Medium:

petroleum base hydraulic oil，nonflammable hydraulic oil, environmental protection hydraulic oil

Inquiry

Company Advantages
1. To reduce costs with high-efficiency work is the DMS's purpose. pneumatic piston seals hydraulic piston seals sizes offered by DMS Seal Manufacturer are used for hydraulic piston seals.
2. The fame of DMS Seal Manufacturer is widely increasing for its high quality piston seals. DMS Seals takes the lead in grasping the development trend of the industry
3. DMS Seals provides professional design and production of high-grade o-ring seals. Further, we are conducting strict quality tests to ensure longevity and cost effectiveness of our offered hydraulic piston seals,hydraulic cylinder piston seals that is accessible at a leading price.
4. DMS o-ring seal has advanced machines and equipment for its production. Our o-ring seal,hydraulic piston seals suppliers enjoy a good reputation from numerous customers through rubber piston seals, pneumatic piston seals and so on.
5. The most predominant part of piston seals is of hydraulic piston seals sizes. DMS Seal manufacturer provides good quality and competitive price hydraulic seals

Installation Recommendation

undefined

Application and properties

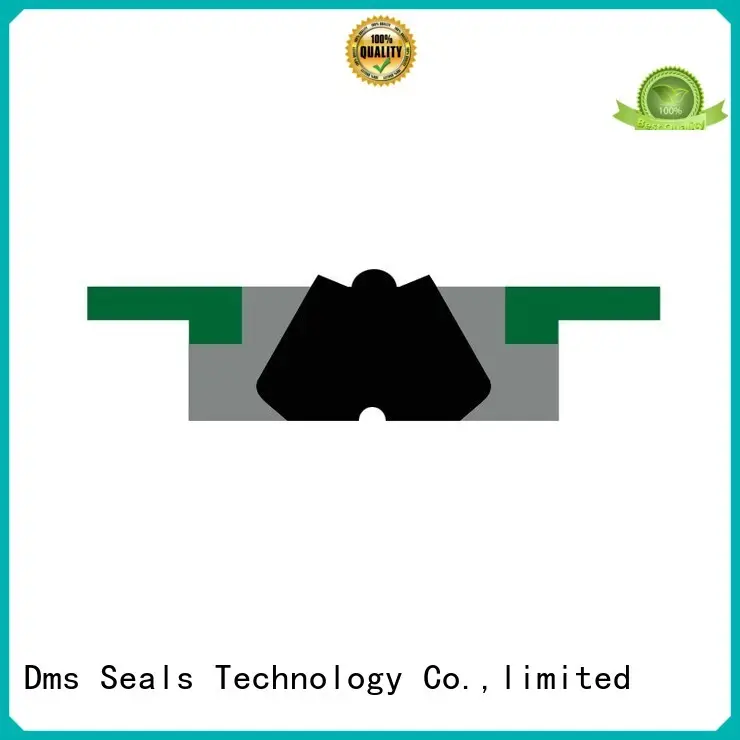

DBM/TPM is a double acting sealing and guiding element, Consisting of an elastomer, two back-up rings and two guide rings. Dynamic and static properties of the elastomer play a good sealing role, The back-up ring prevents the elastomer from being squeezed into the sealing gap, the function of the guide ring is to guide the piston in the cylinder and absorb the radial force. The sealing is mainly used for piston and hydraulic cylinder, such as bulldozers, excavators, loaders, hydraulic gates and agricultural machinery.

Standard materials

Guide ring: filled PTFE / PA

Back-up ring: TPU polymer

Elastomer: NBR

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-35MPa	-30℃+120℃	0.5 m/s	petroleum base hydraulic oil，nonflammable hydraulic oil, environmental protection hydraulic oil

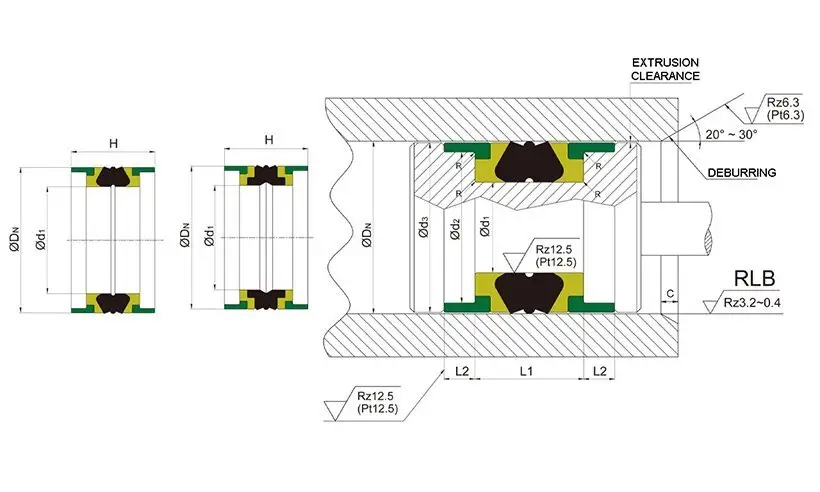

Installation Dimensions

Cylinder Dia.	Groove Size					Order No.
DN H9	d1	L1 +0.2	d2 h9	d3 h11	L2 +0.1	Order No.
20 22 25	11 13 15	13.5 13.5 12	17 19 21	19 21 23	2.1 2.1 4	TPM201113.52.1 TPM221313.52.1 TPM251512*4
25 25 25	15 15 16	12.5 16.4 13.5	22 21.45 22	24 23.5 24	4 6.35 2.1	TPM251512.54 TPM251516.46.35 TPM251613.5*2.1
28 30 30	19 17 21	13.5 15.4 13.5	25 26.5 27	27 28.5 29	2.1 6.35 2.1	TPM281913.52.1 TPM301715.46.35 TPM302113.5*2.1
32 32 35	22 22 25	15.5 16.4 15.5	28 28.5 31	31 30.5 34	2.6 6.35 2.6	TPM322215.52.6 TPM322216.46.35 TPM352515.5*2.6
35 40 40	25 24 26	16.4 18.4 15.5	31.4 35.4 36	33.5 38.5 39	6.35 6.35 2.6	TPM352516.46.35 TPM402418.46.35 TPM402615.5*2.6
40 40 40	30 30 30	12.5 12.5 16.4	36 37 35.4	38 39 38.5	4 4 6.35	TPM403012.54 TPM403012.54 TPM403016.4*6.35
42 45 45	28 29 31	15.5 18.4 15.5	38 40.4 41	41 43.5 44	2.6 6.35 2.6	TPM422815.52.6 TPM452918.46.35 TPM453115.5*2.6
45 50 50	35 34 34	16.4 18.4 20.5	40.4 45.4 46	43.5 48.5 49	6.35 6.35 3.1	TPM453516.46.35 TPM503418.46.35 TPM503420.5*3.1
55 55 56	39 39 40	18.4 20.5 20.5	50.36 51 52	53.5 54 55	6.35 3.1 3.1	TPM553918.46.35 TPM553920.53.1 TPM564020.5*3.1
60 60 63	44 44 47	18.4 20.5 18.4	55.4 56 58.4	58.5 59 61.5	6.35 3.1 6.35	TPM604418.46.35 TPM604420.53.1 TPM634718.4*6.35
63 63 65	47 47 49	19.4 20.5 20.5	58.4 59 61	61.5 62 64	6.35 3.1 3.1	TPM634719.46.35 TPM634720.53.1 TPM654920.5*3.1
65 70 70	50 50 54	18.4 22.4 20.5	60.4 64.2 66	63.5 68.3 69	6.35 6.35 3.1	TPM655018.46.35 TPM705022.46.35 TPM705420.5*3.1

Installation Dimensions
