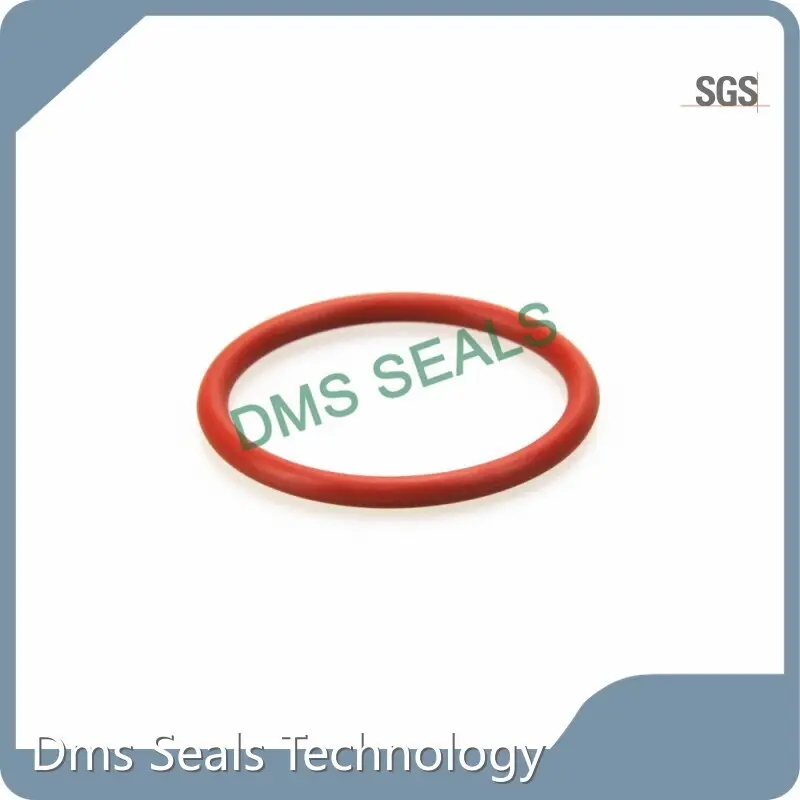

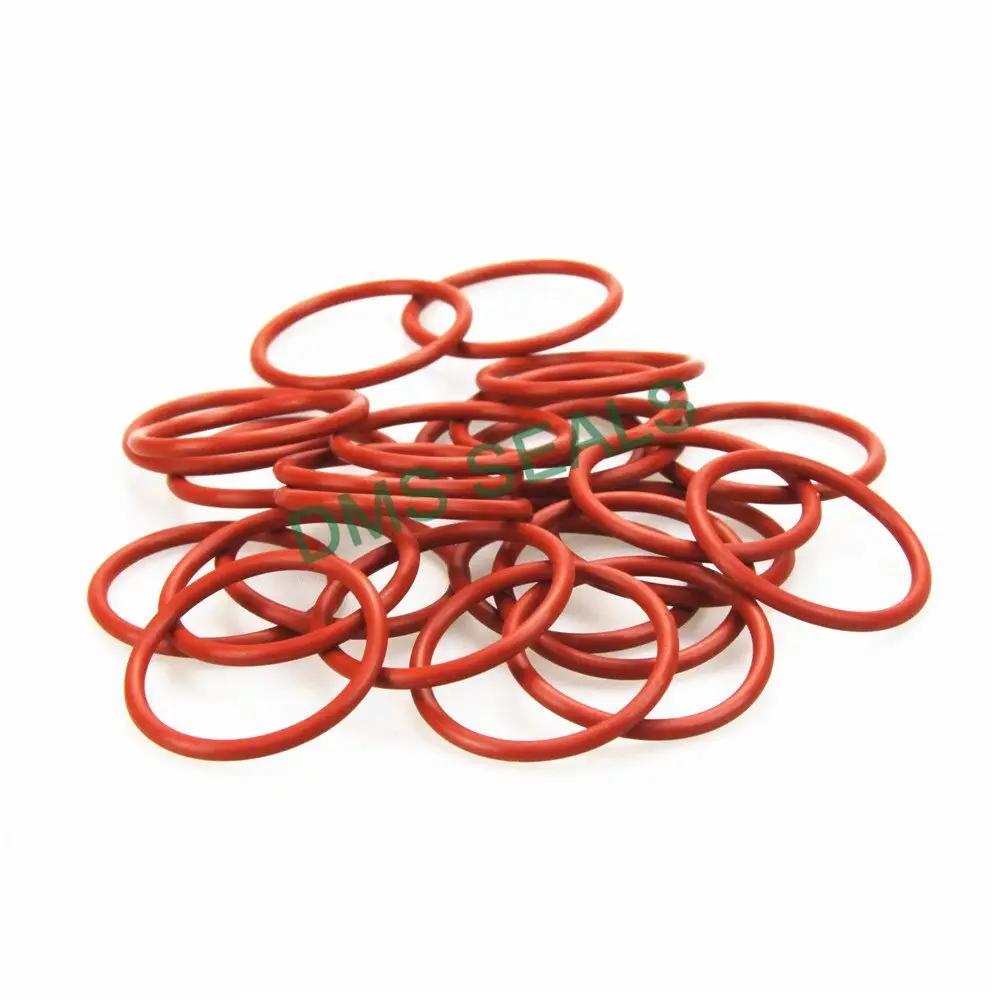

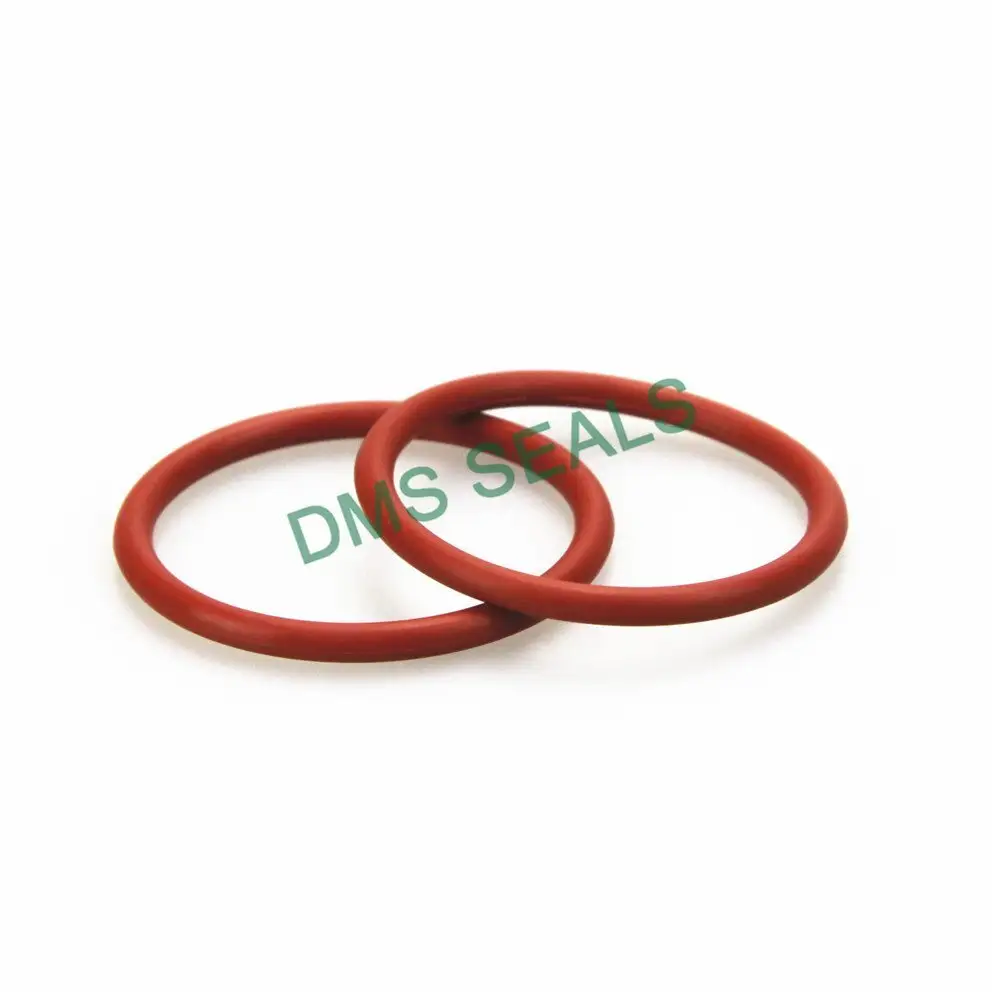

Custom Oil Seal Ring
Product details of the oil seal ring
Product Description
Our goods are greatly appreciated in other markets for its oil seal ring. The product is of great quality which has been approved by the international certifications. Complete detection to oil seal ring ensures its higher quality in the market.
1. Installation Recommendation
2. Application and properties
Double acting seals, the sealing effect is achieved by the deformation of the section of the O-Rings, and the deformation is determined by the depth of the installation groove. Under pressure, the O-ring has a large surface tension like liquid, used for static sealing more. It is only recommended for better conditions in dynamic applications. System lubrication, pressure, temperature, sealing clearance, speed, medium and surface quality of metal parts determine the service life of O-Rings. It is not recommended if the lubrication is not sufficient during rotary motion.
3. Standard materials
Silicone
4. Performance parameter
|
Static Seal |
Dynamic Seal |
|
|
Working Pressure |
No support ring, up to 20MPa; With the support ring, up to 40MPa; With special support ring, up to 200MPa. |
No support ring, up to 5MPa; With the support ring, higher pressure. |
|
Movement Speed |
Maximum reciprocating speed up to 0.5m / s; maximum rotation speed up to 2.0m/s. |
|
|
Temperature |
NBR: -30℃ - 100℃; FKM: -20℃ - 220℃. |
|
5. Wire Diameter Tolerance
|
Wire diameter of O-Ring (mm) |
Tolerance (±mm) |
|
0-1.8 |
0.08 |
|
1.80-2.65 |
0.09 |
|
2.65-3.55 |
0.10 |
|
3.55-5.30 |
0.13 |
|
5.30-7.00 |
0.15 |
|
7.00-8.00 |
0.18 |
|
8.00-10.00 |
0.21 |
|
10.00-12.00 |
0.25 |
6. Inner diameter tolerance
|
Inner Diameter d1 mm |
Tolerance ±mm |
Inner Diameter d1 mm |
Tolerance ±mm |
Inner Diameter d1 mm |
Tolerance ±mm |
|
0.70-2.50 2.50-4.50 4.50-6.30 |
0.13 0.14 0.15 |
43.70-45.00 46.00-46.20 46.20-47.50 |
0.42 0.43 0.44 |
95.00-97.50 97.50-100.00 100.00-103.00 |
0.83 0.84 0.87 |
|
6.30-8.50 8.50-10.00 10.00-11.20 |
0.16 0.17 0.18 |
47.50-48.70 48.70-50.00 50.00-51.50 |
0.45 0.46 0.47 |
103.00-106.00 106.00-109.00 109.00-112.00 |
0.89 0.91 0.93 |
|
11.20-14.00 14.00-16.00 16.00-18.00 |
0.19 0.20 0.21 |
51.50-53.00 53.00-54.50 54.50-56.00 |
0.48 0.50 0.51 |
112.00-115.00 115.00-118.00 118.00-122.00 |
0.95 0.97 1.00 |
|
18.00-20.00 20.00-21.20 21.20-23.60 |
0.22 0.23 0.24 |
56.00-58.00 58.00-60.00 60.00-61.50 |
0.52 0.54 0.55 |
122.00-125.00 125.00-128.00 128.00-132.00 |
1.03 1.05 1.08 |
|
23.60-25.00 25.00-26.50 26.50-28.00 |
0.25 0.26 0.28 |
61.50-63.00 63.00-65.00 65.00-67.00 |
0.56 0.58 0.59 |
132.00-136.00 136.00-140.00 140.00-145-00 |
1.10 1.13 1.17 |
|
28.00-30.00 30.00-31.50 31.50-33.50 |
0.29 0.31 0.32 |
67.00-69.00 69.00-71.00 71.00-73.00 |
0.61 0.63 0.64 |
145.00-150.00 150.00-155.00 155.00-160.00 |
1.20 1.24 1.27 |
|
33.50-34.50 34.50-35.50 35.50-36.50 |
0.33 0.34 0.35 |
73.00-75.00 75.00-77.50 77.50-80.00 |
0.66 0.67 0.69 |
160.00-165.00 165.00-170.00 170.00-175.00 |
1.31 1.34 1.38 |
|
36.50-37.50 37.50-38.70 38.70-40.00 |
0.36 0.37 0.38 |
80.00-82.50 82.50-85.00 85.00-87.50 |
0.71 0.73 0.75 |
175.00-180.00 180.00-185.00 185.00-190.00 |
1.41 1.44 1.48 |
|
40.00-41.20 41.20-42.50 42.50-43.70 |
0.39 0.40 0.41 |
87.50-90.00 90.00-92.50 92.50-95.00 |
0.77 0.79 0.81 |
190.00-195.00 195.00-200.00 200.00-206.00 |
1.51 1.55 1.59 |
|
206.00-212.00 212.00-218.00 224.00-230.00 |
1.63 1.71 1.75 |
325.00-335.00 335.00-345.00 345.00-355.00 |
2.43 2.49 2.56 |
500.00-515.00 515.00-530.00 530.00-545.00 |
3.54 3.63 3.72 |
|
230.00-236.00 236.00-243.00 243.00-250.00 |
1.79 1.83 1.88 |
355.00-365.00 365.00-375.00 375.00-387.00 |
2.62 2.68 2.76 |
545.00-560.00 560.00-580.00 580.00-600.00 |
3.81 3.93 4.05 |
|
250.00-258.00 258.00-265.00 265.00-272.00 |
1.93 1.98 2.02 |
387.00-400.00 400.00-412.00 412.00-425.00 |
2.84 2.91 2.99 |
600.00-615.00 615.00-630.00 630.00-650.00 |
4.13 4.22 4.34 |
|
272.00-280.00 280.00-290.00 290.00-300.00 |
2.08 2.14 2.21 |
425.00-437.00 437.00-450.00 450.00-462.00 |
3.07 3.15 3.22 |
650.00-670.00 |
4.46 |
|
300.00-307.00 307.00-315.00 315.00-325.00 |
2.25 2.30 2.37 |
462.00-475.00 475.00-485.00 485.00-500.00 |
3.30 3.37 3.45 |
